MT 3025 (41AD302G977) - McCulloch String Trimmer General Assembly Parts Diagram

String Trimmer

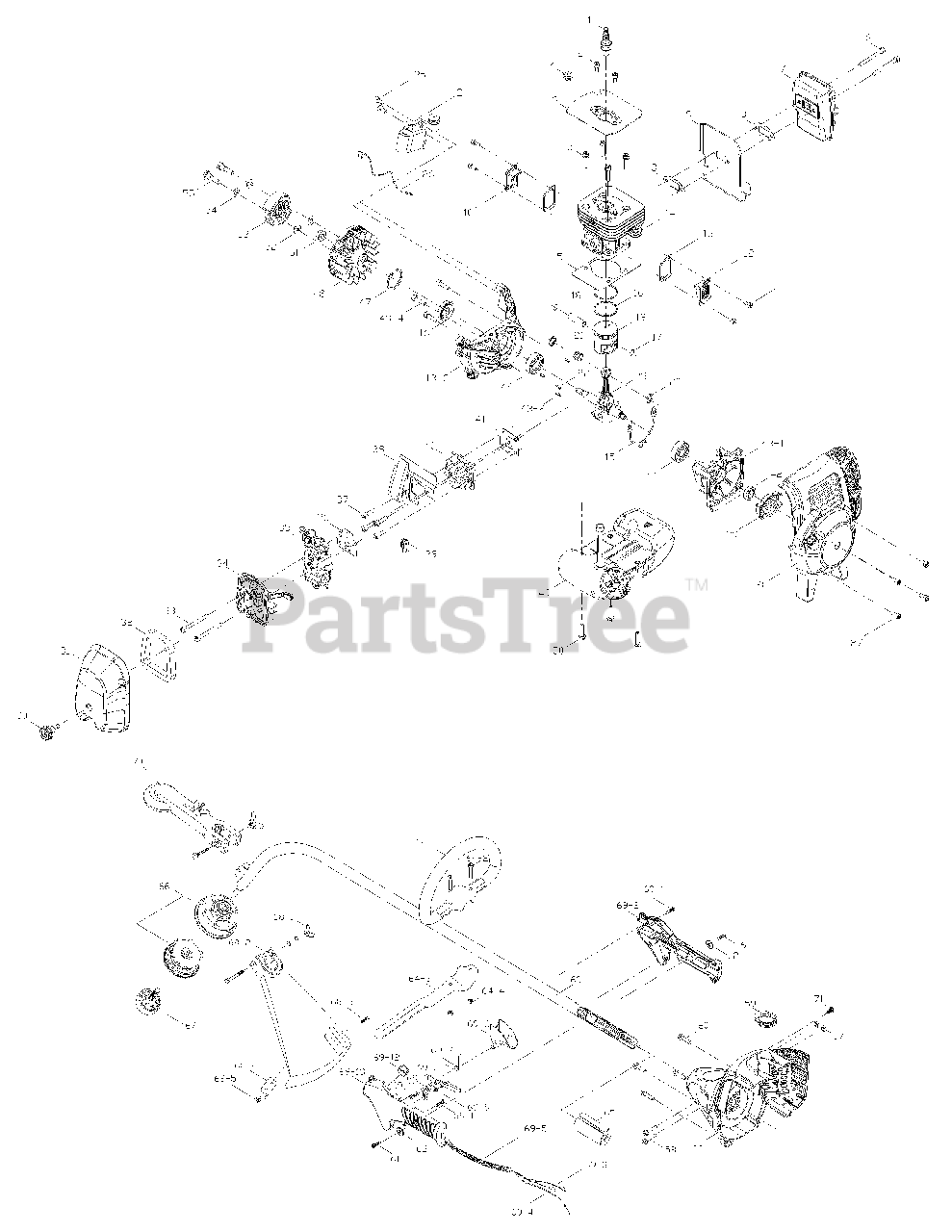

General Assembly Parts Diagram

  • Title

1

MTD MC-9295-310501

SPARK PLUG

$

$

Not available

2

MTD MC-9SGEB-05-10

SCREW

$

$

Not available

3

MTD MC-9211-334502

PLATE (SPARK SIDE)

$

$

Not available

4

MTD MC-9012-330301

GROMMET

$

$

Not available

5

MTD MC-9SRCB-05-22

SCREW

$

$

Not available

6

MTD MC-9SXMBJ05-50

SCREW

$

$

Not available

7

MTD MC-9228-334503

MUFFLE ASS'Y

$

$

Not available

8

MTD MC-9014-GP0102

MUFFLE GASKET

$

$

Not available

9

MTD MC-9211-334501

MUFFLE PLATE

$

$

Not available

10

MTD MC-9017-334501

COVER (FLYWHEEL SIDE)

$

$

Not available

11

MTD MC-9SGEB-04-10

SCREW

$

$

Not available

12

MTD MC-9017-334502

GASKET

$

$

Not available

13

MTD MC-9014-334507

GASKET

$

$

Not available

14

MTD MC-9292-334501F

CYLINDER
(Superseded to 9292-334501FP)

$

$

Not available

15

MTD MC-9014-334501

GASKET

$

$

Not available

16

MTD MC-9189-334501

PISTON RING

$11.99

$

Usually ships in 3-6 days

0

17

MTD MC-9131-334501

CIRCLLP

$

$

Not available

18

MTD MC-9115-334501

PISTON PIN

$

$

Not available

19

MTD MC-9290-334501

PISTON

$

$

Not available

20

MTD MC-9067-334501

AXLS COVER

$

$

Not available

21

MTD MC-9NR-KV9129.8

NEEDLE BEARING

$

$

Not available

22

MTD MC-6221-830301

KEY

$

$

Not available

23

MTD MC-9228-334502

CRANK/ROD ASS'Y

$

$

Not available

24

MTD MC-9288-334501-CH

IGNITION COIL

$

$

Currently unavailable

25

MTD MC-9SRCB-05-20

SCREW

$

$

Not available

26

MTD MC-9010-332102

COIL WIRE

$

$

Not available

27

MTD MC-9SGKB-05-12.5

SCREW

$

$

Currently unavailable

28

MTD MC-9228-334504

STARTER HOUSING ASS'Y

$

$

Not available

29

MTD MC-9228-MD0107

PAWLS ASS'Y

$

$

Not available

30

MTD MC-9134-334501

KNOB
(Superseded to MC-9228-334513)

$

$

Not available

31

MTD MC-9017-334505

FILTER COVER

$

$

Not available

32

MTD MC-9183-334501

FILTER

$

$

Not available

33

MTD MC-9SGEB-05-52

SCREW

$

$

Not available

34

MTD MC-9228-334507

FILTER ASS'Y

$

$

Not available

35

MTD MC-9287-334501

CARBURETOR

$

$

Not available

36

MTD MC-9014-334505

CARBURETOR GASKET

$

$

Not available

37

MTD MC-9SKKB-05-19

SCREW

$

$

Not available

38

MTD MC-9211-334503

PLATE

$

$

Not available

39

MTD MC-9012-334501

GROMMET

$

$

Not available

40

MTD MC-9072-334501

INSULATOR

$

$

Not available

41

MTD MC-9014-334506

INSULATOR GASKET

$

$

Not available

42

MTD MC-9157-332101

SEAL

$

$

Not available

43

MTD MC-9228-334501

CRANKCASE ASS'Y

$

$

Not available

43-1

MTD MC-9151-334502F

CRANKCASE (STARTER SIDE)
(Superseded to MC-9228-334501)

$

$

Not available

43-2

MTD MC-9PA-03-08

PIN

$

$

Not available

43-3

MTD MC-9151-334501F

CRANKCASE (FLYWHEEL SIDE)
(Superseded to MC-9228-334501)

$

$

Not available

43-4

MTD MC-9SGEB-05-20

SCREW

$

$

Not available

44

MTD MC-9DB-620101

BEARING

$

$

Not available

45

MTD MC-9014-334502

GASKET

$

$

Not available

46

MTD MC-9157-334501

SEAL

$

$

Not available

47

MTD MC-9CB-32

C RING

$

$

Not available

48

MTD MC-9169-334501

FLYWHEEL

$

$

Not available

49

MTD MC-9228-334506

FUEL TANK ASS'Y

$

$

Not available

50

MTD MC-9SKKBY05-18

SCREW

$

$

Not available

51

MTD MC-9NHC-08

NUT
(Superseded to MC-9NAC-08)

$

$

Not available

52

MTD MC-9WFB-06-15

WASHER

$

$

Not available

53

MTD MC-9176-GP0101

CLUTCH (WITH SPRING)

$

$

Not available

54

MTD MC-9WWB-08

WAVE PLATE

$

$

Not available

55

MTD MC-9214-GP0101

SCREW

$

$

Not available

56

MTD MC-9228-334508

TRANSMISSION SUPPORT ASS'Y

$

$

Not available

57

MTD MC-9NDB-05

NUT

$

$

Not available

58

MTD MC-9SDABM05-25

SCREW

$

$

Not available

59

MTD MC-9012-334502

GROMMET

$

$

Not available

60

MTD MC-9SKKB-05-16

SCREW

$

$

Not available

61

MTD MC-6SDAB-05-08

SCREW

$

$

Not available

62

MTD MC-9WFB-5.64-12

WASHER

$

$

Not available

63

MTD MC-9228-332626

BAG BEHIND

$

$

Currently unavailable

64

MTD MC-9228-330336

HANDLE ASS'Y

$

$

Not available

64-1

MTD MC-9068-330306

HOUSING, HANDLE-UPPER

$

$

Not available

64-2

MTD MC-9SKKBY10/24-1

SCREW

$

$

Currently unavailable

64-3

MTD MC-9068-330305

HOUSING, HANDLE-UNDER

$

$

Not available

64-4

MTD MC-9NAC-10/24

NUT

$

$

Not available

65

MTD MC-9027-332101

REDUTION

$

$

Currently unavailable

66

MTD MC-9228-A10105

SRTINGHEAD ASS'Y

$

$

Not available

67

MTD MC-9228-331011

KNOB ASS'Y

$12.99

$

In Stock, only 2 left!

0

68

MTD MC-9228-A10110

COVER ASS'Y

$

$

Not available

68-1

MTD MC-9125-331001

PARTS BAG

$

$

Currently unavailable

68-2

MTD MC-9017-A10101

COVER

$

$

Not available

68-3

MTD MC-9SKKBY10/24-0.62

SCREW

$

$

Currently unavailable

68-4

MTD MC-9250-330301

KIT, KNIFE

$

$

Currently unavailable

68-5

MTD MC-6NGB-10/24

NUT

$

$

Not available

69

MTD MC-9228-334510

HANDLE ASS'Y

$

$

Not available

69-1

MTD MC-6SDABB04-12

SCREW

$

$

Not available

69-2

MTD MC-9068-332103

HOUSING, HANDLE
(Superseded to MC-9068-332603)

$

$

Not available

69-3

MTD MC-9010-332103

WIRE ASS'Y, SWITCH

$

$

Not available

69-4

MTD MC-9010-334501

THROTTLE CABLE

$

$

Not available

69-5

MTD MC-9059-332101

HOSE

$

$

Not available

69-6

MTD MC-9028-332101

TRIGGER

$

$

Not available

69-7

MTD MC-9024-332102

SPRING

$

$

Not available

69-8

MTD MC-9176-332101

LIBERATE SHAFT

$

$

Currently unavailable

69-9

MTD MC-9024-332103

SPRING

$

$

Not available

69-10

MTD MC-9176-332102

LIBERATE CHUNK

$

$

Currently unavailable

69-11

MTD MC-6SLABB3.5-10

SCREW

$

$

Not available

69-12

MTD MC-9022-330502

SWITCH

$

$

Not available

69-13

MTD MC-9068-332104

HOUSING, HANDLE
(Superseded to MC-9068-332604)

$

$

Not available

70

MTD MC-9228-332619

TRIMMER WHEEL

$

$

Not available

71

MTD MC-9SGKBY10/24-0.625

SCREW

$

$

Currently unavailable
