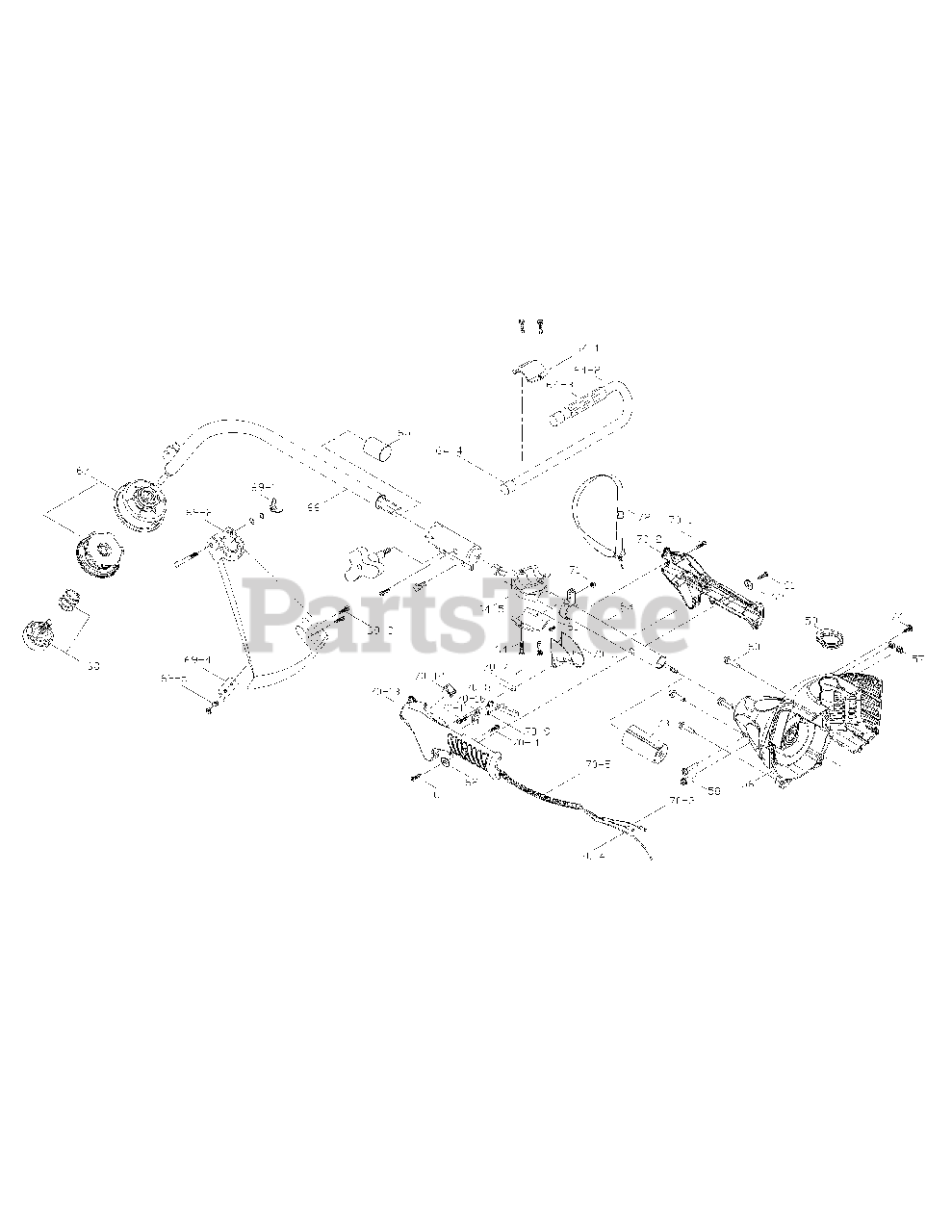

MT 30725 (41AD725C977) - McCulloch String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title
1

MTD MC-9295-310501

SPARK PLUG

$

$

Not available

$

$

Not available

3

MTD MC-9211-334502

PLATE (SPARK SIDE)

$

$

Not available

4

$

$

Not available

$

$

Not available

$

$

Not available

7

MTD MC-9228-334503

MUFFLE ASS'Y

$

$

Not available

8

MTD MC-9014-GP0102

MUFFLE GASKET

$

$

Not available

9

MTD MC-9211-334501

MUFFLE PLATE

$

$

Not available

10

MTD MC-9017-334501

COVER (FLYWHEEL SIDE)

$

$

Not available

$

$

Not available

12

$

$

Not available

13

$

$

Not available

14

MTD MC-9292-334501F

CYLINDER
(Superseded to 9292-334501FP)

$

$

Not available

15

$

$

Not available

16

MTD MC-9189-334501

PISTON RING

$11.99

$

Usually ships in 3-6 days

0

17

$

$

Not available

18

MTD MC-9115-334501

PISTON PIN

$

$

Not available

19

$

$

Not available

20

MTD MC-9067-334501

AXLS COVER

$

$

Not available

21

MTD MC-9NR-KV9129.8

NEEDLE BEARING

$

$

Not available

$

$

Not available

23

MTD MC-9228-334502

CRANK/ROD ASS'Y

$

$

Not available

24

MTD MC-9288-334501-CH

IGNITION COIL

$

$

Currently unavailable

$

$

Not available

26

MTD MC-9010-332102

COIL WIRE

$

$

Not available

$

$

Currently unavailable

28

MTD MC-9228-334504

STARTER HOUSING ASS'Y

$

$

Not available

29

MTD MC-9228-MD0107

PAWLS ASS'Y

$

$

Not available

30

MTD MC-9134-334501

KNOB
(Superseded to MC-9228-334513)

$

$

Not available

31

MTD MC-9017-334505

FILTER COVER

$

$

Not available

32

$

$

Not available

$

$

Not available

34

MTD MC-9228-334507

FILTER ASS'Y

$

$

Not available

35

MTD MC-9287-334501

CARBURETOR

$

$

Not available

36

MTD MC-9014-334505

CARBURETOR GASKET

$

$

Not available

$

$

Not available

$

$

Not available

39

$

$

Not available

40

MTD MC-9072-334501

INSULATOR

$

$

Not available

41

MTD MC-9014-334506

INSULATOR GASKET

$

$

Not available

$

$

Not available

43

MTD MC-9228-334501

CRANKCASE ASS'Y

$

$

Not available

43-1

MTD MC-9151-334502F

CRANKCASE (STARTER SIDE)
(Superseded to MC-9228-334501)

$

$

Not available

43-2

$

$

Not available

43-3

MTD MC-9151-334501F

CRANKCASE (FLYWHEEL SIDE)
(Superseded to MC-9228-334501)

$

$

Not available

43-4

$

$

Not available

44

$

$

Not available

45

$

$

Not available

$

$

Not available

47

MTD MC-9CB-32

C RING

$

$

Not available

48

$

$

Not available

49

MTD MC-9228-334506

FUEL TANK ASS'Y

$

$

Not available

$

$

Not available

51

MTD MC-9NHC-08

NUT
(Superseded to MC-9NAC-08)

$

$

Not available

52

$

$

Not available

53

MTD MC-9176-GP0101

CLUTCH (WITH SPRING)

$

$

Not available

54

MTD MC-9WWB-08

WAVE PLATE

$

$

Not available

$

$

Not available

56

MTD MC-9228-334508

TRANSMISSION SUPPORT ASS'Y

$

$

Not available

$

$

Not available

$

$

Not available

59

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

63

MTD MC-9228-330354

BAG BEHIND

$

$

Not available

64

MTD MC-9228-330355

HANDLE ASS'Y

$

$

Not available

64-1

$

$

Currently unavailable

64-2

$

$

Not available

64-3

$

$

Not available

64-4

$

$

Not available

64-5

MTD MC-9072-330402

CENTERPLECE

$

$

Currently unavailable

64-6

MTD MC-9125-330301

PARTS BAG

$

$

Currently unavailable

$

$

Not available

66

MTD MC-9228-A10111

BAG FRONT

$

$

Not available

67

MTD MC-9228-330109

STRINGHEAD ASS'Y

$

$

Not available

68

MTD MC-9228-330110

KNOB ASS'Y
(Superseded to MC-9228-330110P)

$

$

Not available

69

MTD MC-9228-A10110

COVER ASS'Y

$

$

Not available

69-1

MTD MC-9125-331001

PARTS BAG

$

$

Currently unavailable

69-2

$

$

Not available

$

$

Currently unavailable

69-4

MTD MC-9250-330301

KIT, KNIFE

$

$

Currently unavailable

$

$

Not available

70

MTD MC-9228-334510

HANDLE ASS'Y

$

$

Not available

70-1

$

$

Not available

70-2

MTD MC-9068-332103

HOUSING, HANDLE
(Superseded to MC-9068-332603)

$

$

Not available

70-3

MTD MC-9010-332103

WIRE ASS'Y, SWITCH

$

$

Not available

70-4

MTD MC-9010-334501

THROTTLE CABLE

$

$

Not available

70-5

$

$

Not available

70-6

$

$

Not available

70-7

$

$

Not available

70-8

MTD MC-9176-332101

LIBERATE SHAFT

$

$

Currently unavailable

70-9

$

$

Not available

70-10

MTD MC-9176-332102

LIBERATE CHUNK

$

$

Currently unavailable

70-11

$

$

Not available

70-12

$

$

Not available

70-13

MTD MC-9068-332104

HOUSING, HANDLE
(Superseded to MC-9068-332604)

$

$

Not available

71

MTD MC-6NGB-05

NUT
(Superseded to MC-6NGZ-05)

$

$

Not available

$

$

Currently unavailable

73

$

$

Currently unavailable

$

$

Currently unavailable
