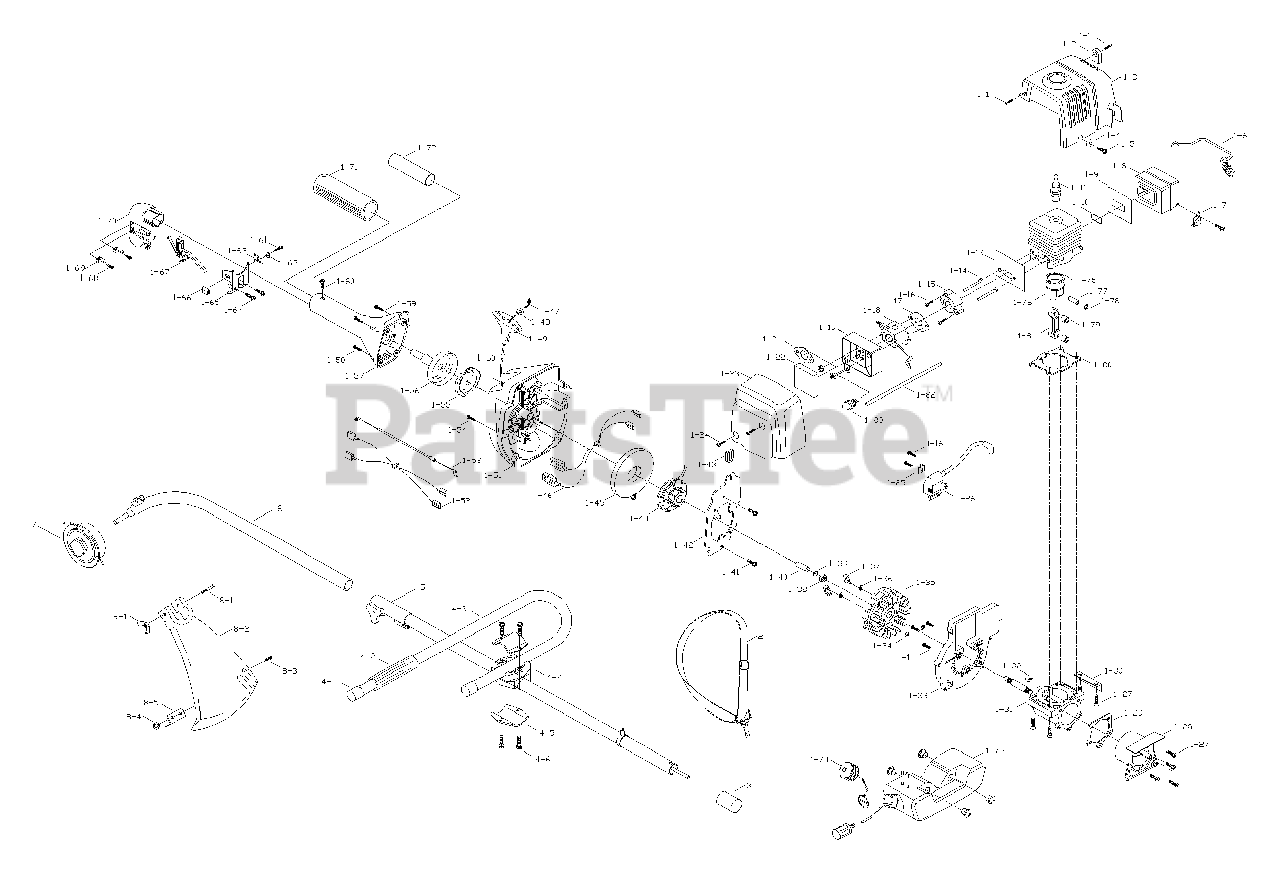

MT 3303A1 (41AD3A1X077) - McCulloch String Trimmer Gas Trimmer 32cc Parts Diagram

String Trimmer

Gas Trimmer 32cc Parts Diagram

  • Title

1

ENG ASS'Y

$

$

Not available

1-1

MTD MC-111067-00

SCREW
(Superseded to 710-04287)

$

$

Not available

1-2

MTD MC-322210-00

WASHER, PLASTIC

$

$

Not available

1-3

MTD MC-224235-60

COVER

$

$

Currently unavailable

1-4

MTD MC-093469-00

WASHER

$

$

Currently unavailable

1-5

MTD MC-111068-00

SCREW
(Superseded to 710-04293)

$

$

Not available

1-6

MTD MC-224044-00

SPRING, MUFFLER

$

$

Not available

1-7

MTD MC-224040-00

SCREEN, SPARK ARRESTER

$

$

Not available

1-8

MTD MC-224034-00

KIT, MUFFLER
(Superseded to MC-9200-330301)

$

$

Not available

1-9

MTD MC-224228-00

GASKET, MUFFLER
(Superseded to MC-9014-330304)

$

$

Not available

1-10

MTD MC-224922-00

GASKET
(Superseded to MC-9014-330303)

$

$

Not available

1-11

MTD MC-92879-00

SPARK PLUG

$

$

Not available

1-12

MTD MC-224006-00

KIT, CYLINDER/GASKET

$

$

Currently unavailable

1-13

MTD MC-322031-00

GASKET, MUFFLER
(Superseded to MC-9014-330301)

$

$

Not available

1-14

MTD MC-111057-00

SCREW
(Superseded to 710-04556)

$

$

Not available

1-15

MTD MC-224041-02

MANIFOLD, CARBURETOR
(Superseded to MC-9014-330302)

$

$

Not available

1-16

MTD MC-111065-00

SCREW
(Superseded to 710-04536)

$

$

Not available

1-17

MTD MC-218933-00

GASKET, CARBURETOR
(Superseded to MC-9014-320004)

$3.49

$

In Stock, only 3 left!

0

1-18

MTD MC-323602-03

CARBURETOR ASS'Y

$

$

Not available

1-19

MTD MC-224238-00

BOX, AIR
(Superseded to MC-9081-330301)

$

$

Not available

1-20

MTD MC-111058-00

NUT

$

$

Not available

1-21

GASKET

$

$

Not available

1-22

MTD MC-224239-00

FILTER, AIR

$

$

Not available

1-23

MTD MC-224236-60

COVER, AIR CLEANER

$

$

Currently unavailable

1-24

MTD MC-111055-00

SCREW

$

$

Not available

1-25

MTD MC-300321-00

TERMINAL TAB

$

$

Currently unavailable

1-26

MTD 725-04320

IGNITION ASSENBLY

$

$

Not available

1-27

MTD MC-111065-00

SCREW
(Superseded to 710-04536)

$

$

Not available

1-28

MTD MC-224024-01

PLUG, C'CASE

$

$

Not available

1-29

MTD MC-224023-00

GASKET
(Superseded to MC-9014-320002)

$

$

Not available

1-30

MTD MC-322030-00

SHIELD, MUFFLER

$

$

Not available

1-31

MTD MC-301821-00

C'CASE/C'SHAFT ASS'Y

$

$

Currently unavailable

1-32

MTD MC-102164-00

KEY,FLYWHEEL

$

$

Not available

1-33

MTD MC-322396-00

SHIELD MUFFLER

$

$

Not available

1-34

MTD MC-111086-00

RING, RETAINER

$

$

Not available

1-35

MTD MC-301353-01

FLYWHEEL

$

$

Currently unavailable

1-36

MTD MC-322835-00

SPRING

$

$

Not available

1-37

MTD MC-550001-00

PAWL KIT, STARTER

$

$

Not available

1-38

MTD MC-322847-00

NUT

$

$

Not available

1-39

MTD MC-322844-00

WASHER

$

$

Not available

1-40

MTD MC-322842-00

SPACER

$

$

Currently unavailable

1-41

SCREW

$

$

Not available

1-42

MTD MC-224927-00

RETAINER, PULLEY

$

$

Not available

1-43

MTD MC-215533-01

GROMMET
(Superseded to MC-9012-330301)

$

$

Not available

1-44

DRUM/ ROPE ASS'Y

$

$

Not available

1-45

MTD MC-222797-00

PACKAGE, SPRING ASS'Y

$

$

Currently unavailable

1-46

MTD MC-301134-00

WIRE ASS'Y

$

$

Not available

1-47

MTD MC-323131-00

ROPE, STARTER

$

$

Not available

1-48

MTD MC-218941-00

WASHER, NYLON

$

$

Not available

1-49

MTD MC-212792-00

HANDLE, STARTER

$

$

Currently unavailable

1-50

MTD MC-223385-00

GUIDE, ROPE

$

$

Currently unavailable

1-51

MTD MC-224240-61

HOUSING

$

$

Not available

1-52

MTD MC-301133-00

WIRE ASS'Y, SWITCH

$

$

Not available

1-53

MTD MC-300372-01

THROTTLE CABLE ASS'Y

$

$

Currently unavailable

1-54

MTD MC-111054-00

SCREW

$

$

Not available

1-55

MTD MC-302260-00

KIT ASS'Y, CLUTCH

$

$

Currently unavailable

1-56

MTD MC-302106-00

DRUM ASS'Y, CLUTCH

$

$

Not available

1-57

MTD MC-224249-01

HOUSING, CLUTCH

$

$

Currently unavailable

1-58

MTD MC-224919-00

SCREW
(Superseded to 710-04286)

$

$

Not available

1-59

SCREW

$

$

Not available

1-60

MTD MC-111070-00

SCREW
(Superseded to 710-04540)

$

$

Not available

1-61

MTD MC-111069-00

SCREW
(Superseded to 710-04539)

$

$

Not available

1-62

MTD MC-105497-00

WASHER

$

$

Not available

1-63

MTD MC-224246-00

CONTACT, SWITCH
(Superseded to MC-9051-331301)

$

$

Not available

1-64

MTD MC-111061-00

SCREW

$

$

Not available

1-65

MTD MC-224243-00

COVER ASS'Y, SWITCH

$

$

Currently unavailable

1-66

MTD MC-224245-00

BUTTON, STOP SWITCH

$

$

Not available

1-67

MTD MC-300361-00

TRIGGER, THROTTLE

$

$

Not available

1-68

MTD MC-111077-00

SCREW

$

$

Currently unavailable

1-69

MTD MC-322275-00

TERMINAL TAB

$

$

Currently unavailable

1-70

MTD MC-224811-00

TRIGGER HOUSING

$

$

Currently unavailable

1-71

MTD MC-322140-00

GRIP

$

$

Not available

1-72

MTD MC-322234-00

SLEEVE, PROTECTING

$

$

Not available

1-73

MTD MC-225162-00

TANK ASS'Y

$

$

Not available

1-74

MTD MC-223508-00

CAP, FUEL TANK

$

$

Not available

1-75

MTD MC-224217-00

RING, PISTON

$

$

Currently unavailable

1-76

MTD MC-325157-00

PISTON

$

$

Currently unavailable

1-77

MTD MC-300482-00

PIN

$

$

Currently unavailable

1-78

MTD MC-215876-00

RING

$

$

Currently unavailable

1-79

MTD MC-091117-00

BEARING

$

$

Currently unavailable

1-80

MTD MC-224022-00

GASKET,CYLINDER
(Superseded to MC-9014-320001)

$

$

Not available

1-81

MTD MC-224226-00

ROD

$

$

Currently unavailable

1-82

MTD MC-322105-00

HOSE

$

$

Not available

1-83

MTD MC-9142-310002

PRIMER

$22.99

$

In Stock, Qty 20+

0

2

MTD MC-224083-00

HARNESS
(Superseded to MC-9149-330301)

$

$

Not available

3

MTD MC-217566-00

PLUG

$

$

Currently unavailable

4

HANDLE ASS'Y

$

$

Not available

4-1

MTD MC-218328-00

PLUG

$

$

Not available

4-2

MTD MC-322139-00

GRIP

$

$

Not available

4-3

J-HANDLE

$

$

Not available

4-4

CENTERPIECE

$

$

Not available

4-5

CLAMP

$

$

Not available

4-6

SCREW

$

$

Not available

5

REAR SHAFT ASS'Y

$

$

Not available

6

FRONT SHAFT ASS'Y

$

$

Not available

7

STRINGHEAD ASS'Y

$

$

Not available

8

GRASS SHIELD ASS'Y

$

$

Not available

8-1

SCREW/NUT ASS'Y

$

$

Not available

8-2

SHIELD

$

$

Not available

8-3

MTD MC-217935-00

SCREW
(Superseded to 710-04549)

$

$

Not available

8-4

MTD MC-111135-00

NUT
(Superseded to 712-04108)

$

$

Not available

8-5

MTD MC-224497-01

CUTTER

$

$

Not available
