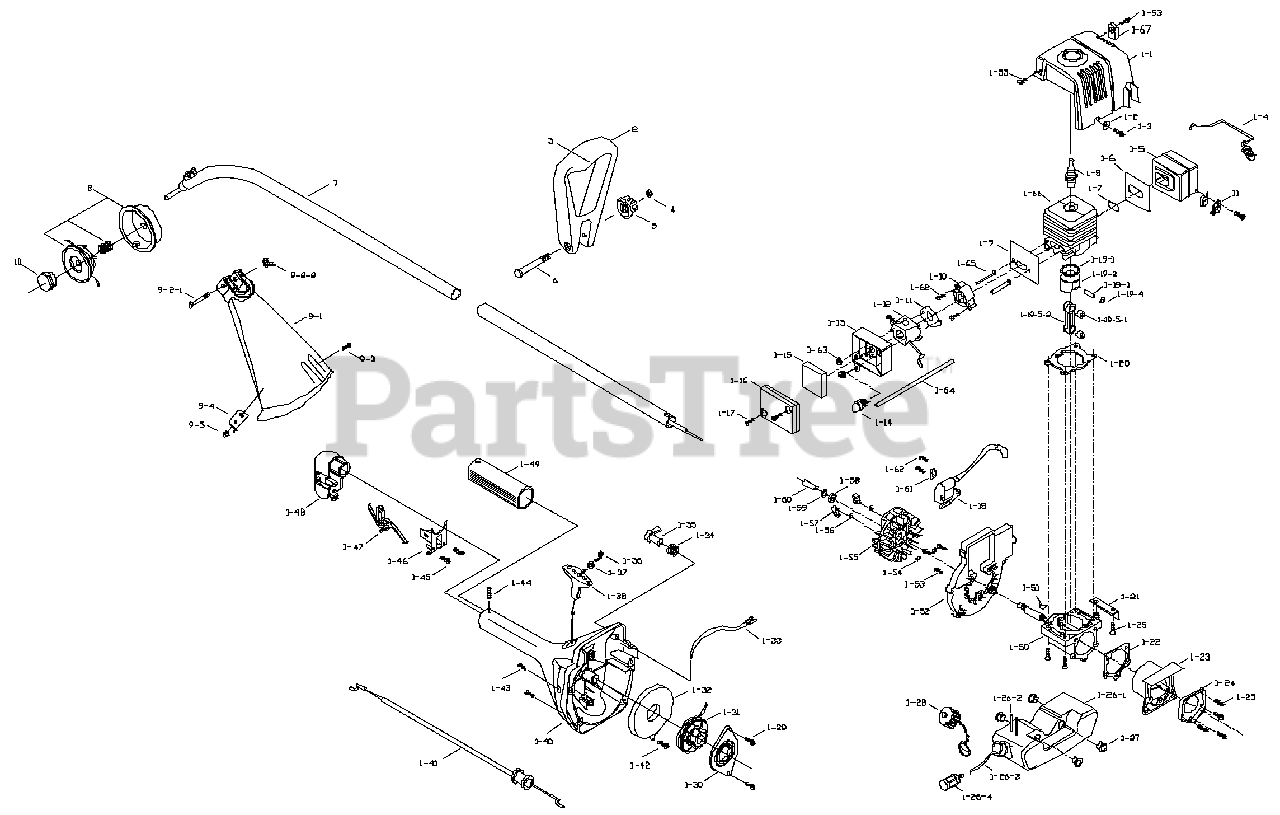

MT 3311 (41AD311X077) - McCulloch String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

ENG ASS'Y

$

$

Not available

1-1

MTD MC-224235-60

COVER

$

$

Currently unavailable

1-2

MTD MC-093469-00

WASHER

$

$

Currently unavailable

1-3

MTD MC-322027-00

SCREW

$

$

Not available

1-4

MTD MC-224044-00

SPRING, MUFFLER

$

$

Not available

1-5

MTD MC-224034-00

KIT, MUFFLER
(Superseded to MC-9200-330301)

$

$

Not available

1-6

MTD MC-224228-00

GASKET, MUFFLER
(Superseded to MC-9014-330304)

$

$

Not available

1-7

MTD MC-224922-00

GASKET
(Superseded to MC-9014-330303)

$

$

Not available

1-8

MTD MC-92879-00

SPARK PLUG

$

$

Not available

1-9

MTD MC-322031-00

GASKET, MUFFLER
(Superseded to MC-9014-330301)

$

$

Not available

1-10

MTD MC-224041-02

MANIFOLD, CARBURETOR
(Superseded to MC-9014-330302)

$

$

Not available

1-11

MTD MC-218933-00

GASKET, CARBURETOR
(Superseded to MC-9014-320004)

$3.49

$

In Stock, only 3 left!

0

1-12

MTD MC-323602-03

CARBURETOR ASS'Y

$

$

Not available

1-13

MTD MC-224238-00

BOX, AIR
(Superseded to MC-9081-330301)

$

$

Not available

1-14

MTD MC-9142-310002

PRIMER, REMOTE

$22.99

$

In Stock, Qty 20+

0

1-15

MTD MC-224239-00

FILTER, AIR

$

$

Not available

1-16

MTD MC-224237-00

COVER, AIR CLEANER
(Superseded to MC-9038-331002)

$

$

Not available

1-17

MTD MC-111055-00

SCREW

$

$

Not available

1-18

MTD 725-04320

IGNITION ASSEMBLY

$

$

Not available

1-19

MTD MC-224014-00

PISTON/CONNECTING BAR ASS'Y

$

$

Currently unavailable

1-19-1

MTD MC-224217-00

RING, PISTON

$

$

Currently unavailable

1-19-2

MTD MC-325157-00

KIT, PISTON

$

$

Currently unavailable

1-19-3

MTD MC-300482-00

PIN, C,SHAFT PISTON

$

$

Currently unavailable

1-19-4

MTD MC-215876-00

RING, RETAINING

$

$

Currently unavailable

1-19-5

MTD MC-224009-00

ROD, CONNECTING ASS'Y

$

$

Currently unavailable

1-19-5-1

MTD MC-091117-00

BEARING

$

$

Currently unavailable

1-19-5-2

MTD MC-224226-00

ROD, CONNECTING

$

$

Currently unavailable

1-20

MTD MC-224022-00

GASKET, CYLINDER
(Superseded to MC-9014-320001)

$

$

Not available

1-21

MTD MC-322060-00

SHIELD, MUFFLER

$

$

Currently unavailable

1-22

MTD MC-224023-00

GASKET
(Superseded to MC-9014-320002)

$

$

Not available

1-23

MTD MC-224024-01

PLUG, C'CASE

$

$

Not available

1-24

MTD MC-322437-90

PLATE, C'CASE, COATED FINISH

$

$

Not available

1-25

MTD MC-111065-00

SCREW
(Superseded to 710-04536)

$

$

Not available

1-26

MTD MC-302349-00

TANK ASS'Y FUEL

$

$

Not available

1-26-1

MTD MC-323075-00

KIT, FUEL TANK

$

$

Currently unavailable

1-26-2

MTD MC-225163-00

HOSE

$

$

Not available

1-26-3

HOSE

$

$

Not available

1-26-4

MTD MC-216985-00

PICKUP, FUEL
(Superseded to MC-9182-310001)

$

$

Not available

1-27

MTD MC-322105-00

ISOLATOR

$

$

Not available

1-28

MTD MC-223508-00

CAP, FUEL TANK

$

$

Not available

1-29

MTD MC-223357-00

SCREW
(Superseded to 710-04541)

$

$

Not available

1-30

MTD MC-322362-00

RETAINER, PULLEY

$

$

Not available

1-31

MTD MC-323365-00

DRUM/ ROPE ASS'Y

$

$

Currently unavailable

1-32

MTD MC-222797-00

PACKAGE, SPRING ASS'Y

$

$

Currently unavailable

1-33

MTD MC-9010-331002

WIRE ASS'Y, SWITCH

$

$

Not available

1-34

MTD MC-222913-00

SPRING, BULLON STOP

$

$

Not available

1-35

MTD MC-222914-00

BULLON, STOP

$

$

Not available

1-36

ROPE, STARTER

$

$

Not available

1-37

MTD MC-218941-00

WASHER, NYLON

$

$

Not available

1-38

MTD MC-216792-00

HANDLE, STARTER

$

$

Not available

1-39

MTD MC-223385-00

GUIDE, ROPE

$

$

Currently unavailable

1-40

MTD MC-224247-61

STARTER HOUSING

$

$

Currently unavailable

1-41

MTD MC-300149-01

THROTTLE CABLE
(Superseded to MC-9010-331001)

$20.99

$

Usually ships in 3-6 days

0

1-42

MTD MC-322027-00

SCREW, SPRING RETAINER

$

$

Not available

1-43

MTD MC-111054-00

SCREW

$

$

Not available

1-44

MTD MC-111070-00

SCREW
(Superseded to 710-04540)

$

$

Not available

1-45

MTD MC-111061-00

SCREW

$

$

Not available

1-46

MTD MC-224914-00

COVER SWITCH HOUSING

$

$

Not available

1-47

MTD MC-300361-00

TRIGGER, THROTTLE

$

$

Not available

1-48

MTD MC-9017-331003

TRIGGER HOUSING

$

$

Not available

1-49

MTD MC-322140-00

GRIP

$

$

Not available

1-50

MTD MC-301821-00

C'CASE/C'SHAFT ASSY

$

$

Currently unavailable

1-51

MTD MC-102164-00

KEY, FLYWHEEL

$

$

Not available

1-52

MTD MC-322396-00

SHIELD MUFFLER

$

$

Not available

1-53

MTD MC-111067-00

SCREW
(Superseded to 710-04287)

$

$

Not available

1-54

MTD MC-111086-00

RING, RETAINER

$

$

Not available

1-55

MTD MC-301353-01

FLYWHEEL

$

$

Currently unavailable

1-56

MTD MC-322835-00

SPRING

$

$

Not available

1-57

MTD MC-550001-00

PAWL KIT, STARTER

$

$

Not available

1-58

MTD MC-111085-00

NUT

$

$

Not available

1-59

MTD MC-322844-00

WASHER

$

$

Not available

1-60

MTD MC-322842-00

SPACER

$

$

Currently unavailable

1-61

MTD MC-300321-00

TERMINAL TAB

$

$

Currently unavailable

1-62

MTD MC-111053-00

SCREW
(Superseded to 710-04292)

$

$

Not available

1-63

MTD MC-111058-00

NUT

$

$

Not available

1-64

MTD MC-225163-00

HOSE, FUEL RETURN

$

$

Not available

1-65

MTD MC-111057-00

SCREW
(Superseded to 710-04556)

$

$

Not available

1-66

MTD MC-9292-330301

KIT, CYLINDER/GASKET

$

$

Not available

1-67

MTD MC-322210-00

WASHER, PLASTIC

$

$

Not available

2

MTD MC-300834-00

KIT, HANDLE

$

$

Not available

3

COVER, KIT

$

$

Not available

4

MTD MC-13035-99

NUT

$

$

Not available

5

MTD MC-322719-00

KNOB
(Superseded to MC-300834-00)

$

$

Not available

6

MTD MC-9075-99

SCREW
(Superseded to 753-05174)

$

$

Not available

7

SHAFT ASS'Y

$

$

Not available

8

KIT, STRINGHEAD

$

$

Not available

9

MTD MC-223997-00

SHIELD ASS'Y

$

$

Currently unavailable

9-1

MTD MC-223990-00

SHIELD

$

$

Currently unavailable

9-2

SCREW/NUT ASS'Y

$

$

Not available

9-2-1

MTD MC-216595-00

SCREW
(Superseded to MC-9SXDB-06-50)

$

$

Not available

9-2-2

MTD MC-111102-00

NUT
(Superseded to MC-9NBB-06)

$

$

Not available

9-3

MTD MC-217935-00

SCREW
(Superseded to 710-04549)

$

$

Not available

9-4

MTD MC-224497-01

KIT, KNIFE

$

$

Not available

9-5

MTD MC-216682-00

NUT

$

$

Not available

10

MTD MC-9228-331011

KNOB ASS'Y

$13.99

$

In Stock, only 2 left!

0

11

MTD MC-224040-00

SCREEN, SPARK ARRESTER

$

$

Not available
