MT 432 T (38717x53A) - Murray 38" Lawn Tractor (1999) Chassis & Hood Parts Diagram

38" Lawn Tractor

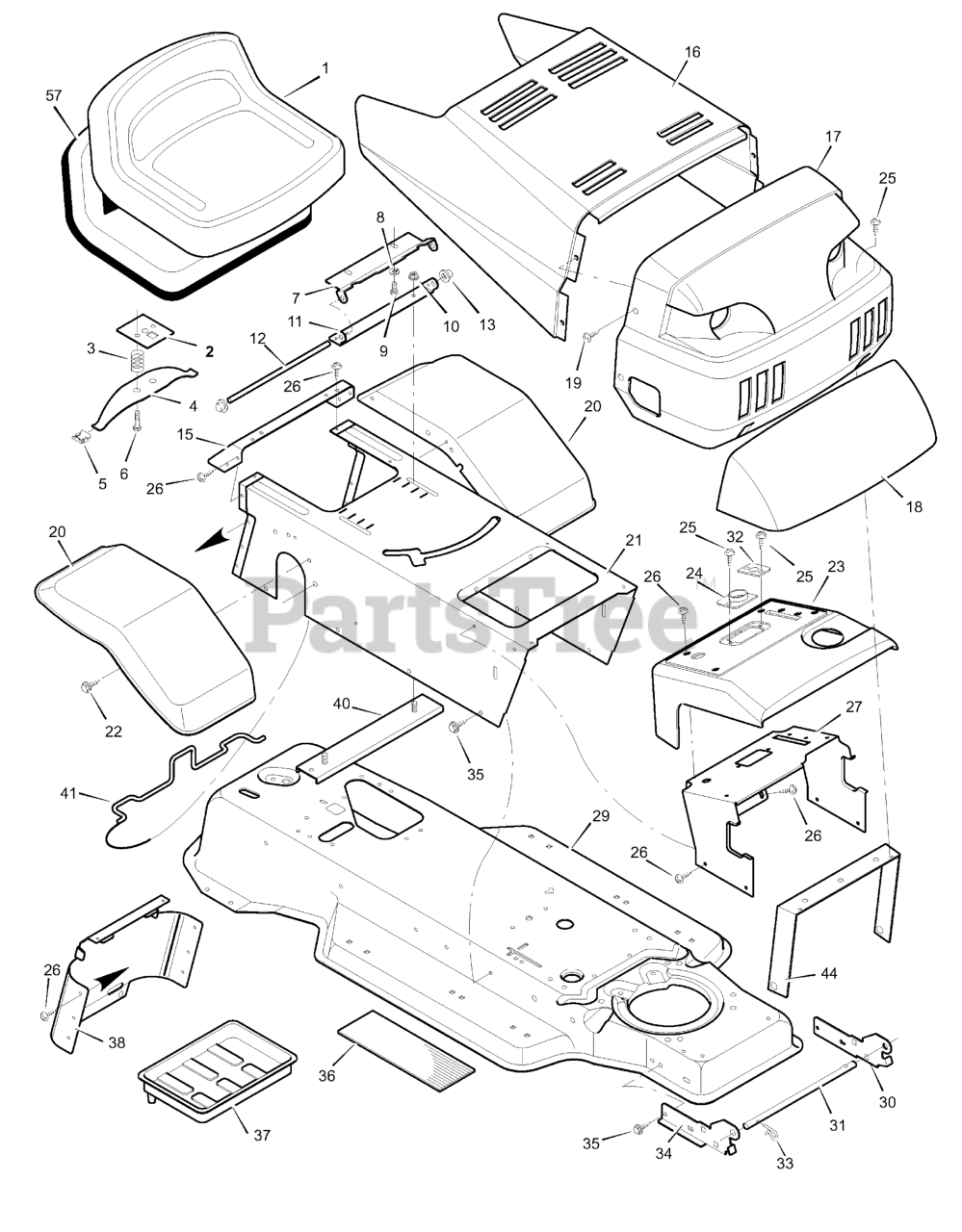

Chassis & Hood Parts Diagram

  • Title

1

Murray 092387MA

Seat

$349.99

$

Usually ships in 2-12 days

0

2

Murray 091963 Z

Plate Assembly, Switch

$

$

Currently unavailable

3

Murray 164X26MA

Spring, Compression

$3.49

$

Usually ships in 2-12 days

0

4

Murray 091964MA

Spring, Seat

$

$

Not available

5

Murray 091822MA

Glide, Spring

$8.99

$

Usually ships in 2-12 days

0

6

Murray 009X38MA

Bolt, Shoulder

$3.99

$

Usually ships in 2-12 days

0

7

Murray 092334E700

Support, Seat

$

$

Currently unavailable

8

Murray 018X16MA

Lockwasher

$3.99

$

Usually ships in 2-12 days

0

9

Murray 001X45MA

Bolt, Hex
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

10

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

11

Murray 091729E701

Bracket, Pivot

$

$

Currently unavailable

12

Murray 091730 Z

Rod, Pivot

$

$

Currently unavailable

13

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

15

Murray 091724E700

Fender, Apron

$

$

Currently unavailable

16

Murray 92333E510

Hood

$

$

Currently unavailable

17

Murray 092367MA

Grille Assembly

Note: (includes Lens)

$320.99

$

Usually ships in 2-12 days

0

18

Murray 092369MA

Lens

$138.99

$

Usually ships in 2-12 days

0

19

Murray 009X47MA

Screw

$4.49

$

Usually ships in 2-12 days

0

20

Murray 92328E510

Fender

$

$

Currently unavailable

21

Murray 092727E700

Console Assembly

$

$

Currently unavailable

22

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

23

Murray 92605E700

Dash Panel

$

$

Currently unavailable

24

Murray 092399

Bearing, Steering

$4.99

$

Usually ships in 2-12 days

0

25

Murray 26X239MA

Screw

$4.49

$

Usually ships in 2-12 days

0

26

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 19

0

27

Murray 92331E700

Support, Dash

$

$

Not available

29

Murray 092815E700

Frame Assembly

$

$

Currently unavailable

30

Murray 092347E701MA

Bracket, Left Grille

$8.49

$

Usually ships in 2-12 days

0

31

Murray 092332 Z

Rod, Pivot

$

$

Currently unavailable

32

Murray 092398

Bearing

$3.99

$

Usually ships in 2-12 days

0

33

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

34

Murray 092346E700

Bracket, Right Grille

$

$

Currently unavailable

35

Murray 26X249MA

Screw

$

$

Not available

36

Murray 094107

Mat

$11.99

$

Usually ships in 2-12 days

0

37

Murray 091895MA

Tray, Battery

$

$

Not available

38

Murray 092443E700

Cap, Console

$39.99

$

Usually ships in 2-12 days

0

39

Murray 002X64MA

Bolt
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

40

Murray 091857E701

Channel Assembly

$

$

Currently unavailable

41

Murray 092725 Z

Clamp, Battery

$

$

Currently unavailable

44

Murray 92448 Z

Brace, Grille

$

$

Currently unavailable

57

Murray 092357

Pan, Seat (with foam)

$

$

Currently unavailable

--

Murray F-99846L

Instruction Book

$

$

Currently unavailable

--

Murray 48X225

Decal, Left Hood

$

$

Currently unavailable

--

Murray 48X226

Decal, Right Hood

$

$

Currently unavailable

--

Murray 44X6815MA

Decal, Warning

$9.99

$

Usually ships in 2-12 days

0
