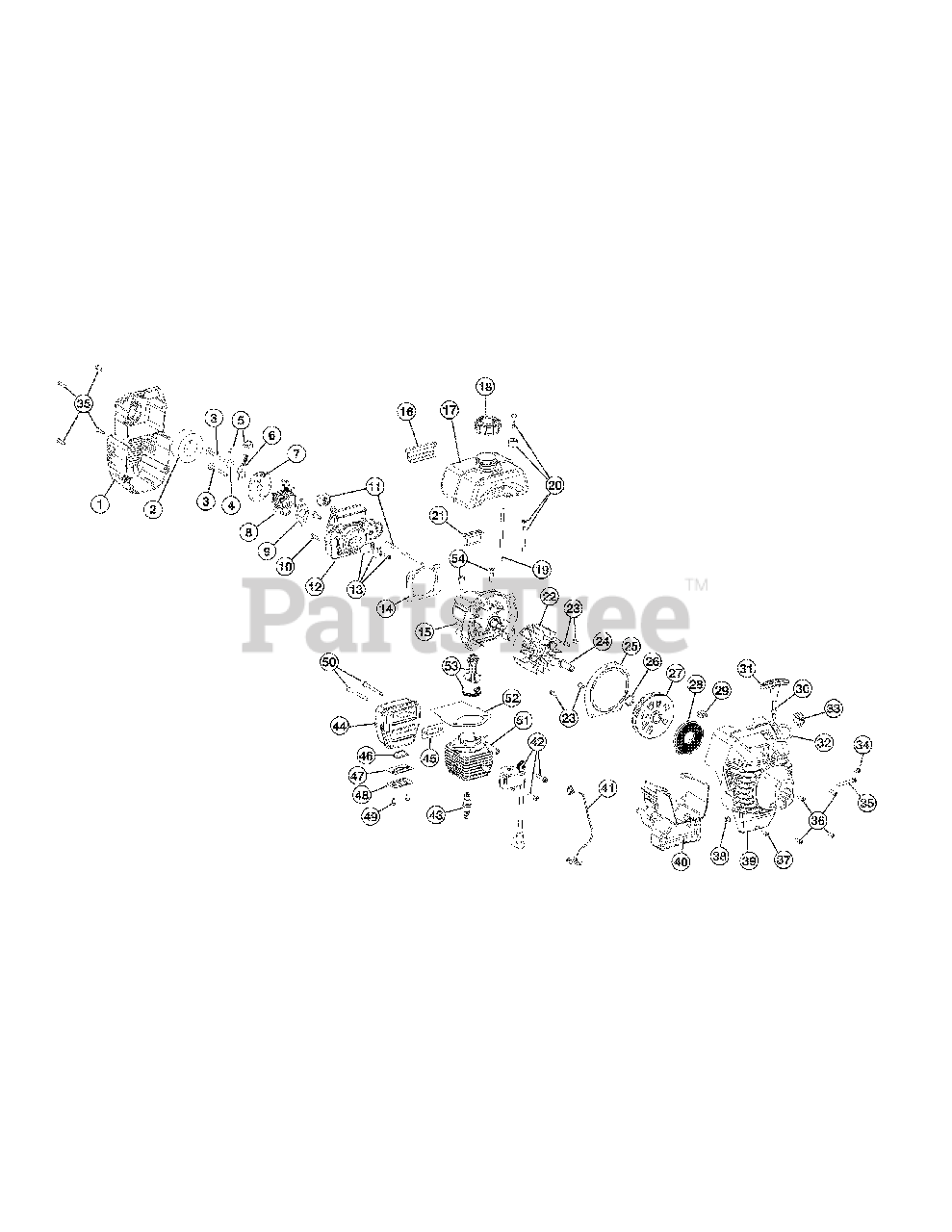

MT 700 (41AD700G977) - McCulloch String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner Cover Assembly (includes 2 & 34)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350

Air Cleaner Filter
(Superseded to 791-180350B)

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screws

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 12

0

5

MTD 791-182070

Choke Knob & Screw
(Superseded to 791-182202)

$14.99

$

Usually ships in 3-6 days

0

6

MTD 753-04418

Choke Lever Assembly (includes 5)

$10.99

$

Usually ships in 3-6 days

0

7

MTD 753-04419

Choke Lever & Plate (includes 6)

$

$

Not available

8

MTD 753-04408

Carburetor Assembly (includes 9 & 20)

$66.99

$

In Stock, only 2 left!

0

9

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-181558

Primer and Hose Assembly
(Superseded to 791-683974B)

$21.99

$

In Stock, Qty 20+

0

12

MTD 753-1196

Carburetor Mount Assembly (includes 10, 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$15.99

$

In Stock, only 3 left!

0

15

MTD 753-04321

Crankcase Service Assembly (includes 10 & 23)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 791-181152

Fuel Tank Assembly (includes 18 & 20)

$

$

Not available

18

MTD 791-182271

Fuel Cap Assembly

$19.99

$

Usually ships in 3-6 days

0

19

MTD 791-181086

Fuel Return Line

$6.99

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$15.99

$

In Stock, Qty 20+

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

23

MTD 743-1202

Screw

$

$

Currently unavailable

24

MTD 791-610303

Square Nut Drive

$

$

Not available

25

MTD 753-04705

Pulley Retainer Assembly

$

$

Not available

26

MTD 791-181247

Palnut
(Superseded to 753-04288)

$9.99

$

In Stock, only 1 left!

0

27

MTD 753-04823

Recoil Pulley Assembly

$30.99

$

In Stock, Qty 9

0

28

MTD 753-04286

Recoil Spring

$24.99

$

In Stock, Qty 6

0

29

MTD 753-04824

Eyelet Retainer

$

$

Not available

30

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

31

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

32

MTD 791-613103

Rope

$9.99

$

In Stock, only 3 left!

0

33

MTD 753-04241

Switch Assembly (includes 41)

$

$

Not available

34

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

35

MTD 753-04003

Clamping Screw
(Superseded to 9689A)

$10.99

$

Usually ships in 3-6 days

0

36

MTD 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

37

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 17

0

38

MTD 791-180217

Clamping Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 9

0

39

MTD 753-04825

Starter Housing Assembly (includes 23, 25-38)
(Superseded to 753-05207)

$

$

Not available

40

MTD 753-04702

Shroud Extension and Stand

$29.99

$

Usually ships in 3-6 days

0

41

MTD 753-04242

Wire Lead
(Superseded to 794-00028)

$8.49

$

Usually ships in 3-6 days

0

42

MTD 753-04324

Module Assembly

$102.99

$

In Stock, only 1 left!

0

43

MTD 791-610311

Spark Plug
(Superseded to 791-610311B)

$13.99

$

In Stock, Qty 8

0

44

MTD 753-04618

Muffler Assembly (includes 45-50)
(Superseded to 753-05169)

$104.99

$

Usually ships in 3-6 days

0

45

MTD 753-04619

Exhaust Gasket

$8.49

$

In Stock, only 3 left!

0

46

MTD 753-04689

Spark Arrestor

$

$

Not available

47

MTD 753-04690

Exhaust Hood Diverter

$

$

Not available

48

MTD 753*-04691

Exhaust Hood

$

$

Currently unavailable

49

MTD 753-04315

Screw
(Superseded to 753-04110)

$

$

Not available

50

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$3.99

$

Usually ships in 3-6 days

0

51

MTD 753-04814

Cylinder Assembly (includes 52 & 53)

$78.99

$

In Stock, only 1 left!

0

52

MTD 753-04367

Piston & Rod Assembly

$

$

Not available

53

MTD 753-04182

Cylinder Gasket

$15.99

$

Usually ships in 3-6 days

0

54

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

MTD 753-1209

Piston Ring (NOT SHOWN)

$49.99

$

Usually ships in 3-6 days

0

MTD 753-04826

Short Block Assembly(includes 15, 43, 51-54) (NOT SHOWN)

$195.99

$

Usually ships in 3-6 days

0
