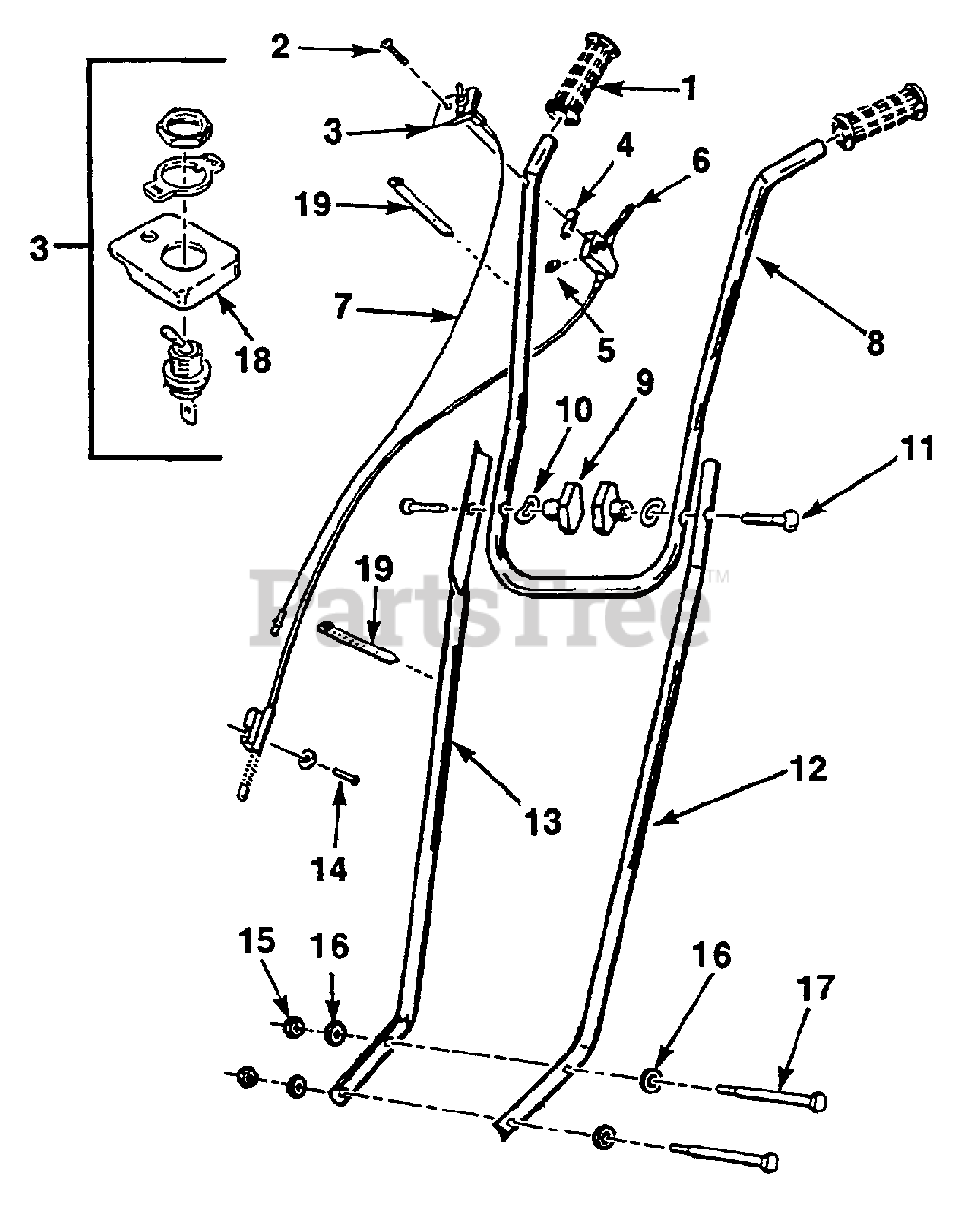

MTC 12 (UT-22082) - Homelite Tiller Handles and Controls Parts Diagram

Tiller

Handles and Controls Parts Diagram

  • Title

1

Homelite 0107568

GRIP- Handlebar

$

$

Not available

2

Homelite 0107559

SCREW- Set, #10-24 x 1 3/8"

$

$

Not available

3

Homelite 0107515

SWITCH ASSY.- w/Mounting Plate

$

$

Not available

4

Homelite 0107560

ISOLATOR

$

$

Not available

5

Homelite 0107561

NUT- Throttle/Switch Assy.

$

$

Not available

6

Homelite 0107540

THROTTLE CABLE ASSY. w/Throttle Trigger

$

$

Not available

7

Homelite 0107555

WIRE ASSY.- Ground

$

$

Not available

8

Homelite 0107519

HANDLEBAR- Upper

$

$

Not available

9

Homelite 0107564

KNOB- Plastic Handlebar 5/16"

$

$

Not available

10

Homelite 0107562

WASHER- Curved Knob 5/16"

$

$

Not available

11

Homelite 0107556

SCREW- Curved Head 5/16-18 x 1 1/2"

$

$

Not available

12

Homelite 0107546

HANDLEBAR- Lower L.H.
(Superseded to UP05916)

$

$

Not available

13

Homelite 0107544

HANDLEBAR- Lower R.H.

$

$

Not available

14

Homelite 88044

SCREW- #8-32 x 1.0 hex hd.

$

$

Not available

15

Homelite 81204

NUT- Flex-Loc 1/4-20

$3.49

$

Usually ships in 3-7 days

0

16

Homelite 0107562

WASHER- Curved 5/16"

$

$

Not available

17

Homelite JA400134

SCREW- 1/4-20 x 4 1/2"

$

$

Currently unavailable

18

Homelite 0107514

MOUNTING PLATE

$

$

Currently unavailable

19

Homelite 0107558

TIE STRAP
(Superseded to UP05918)

$

$

Not available
