MTC 12 (UT-22082) - Homelite Tiller Tiller Parts Diagram

Tiller

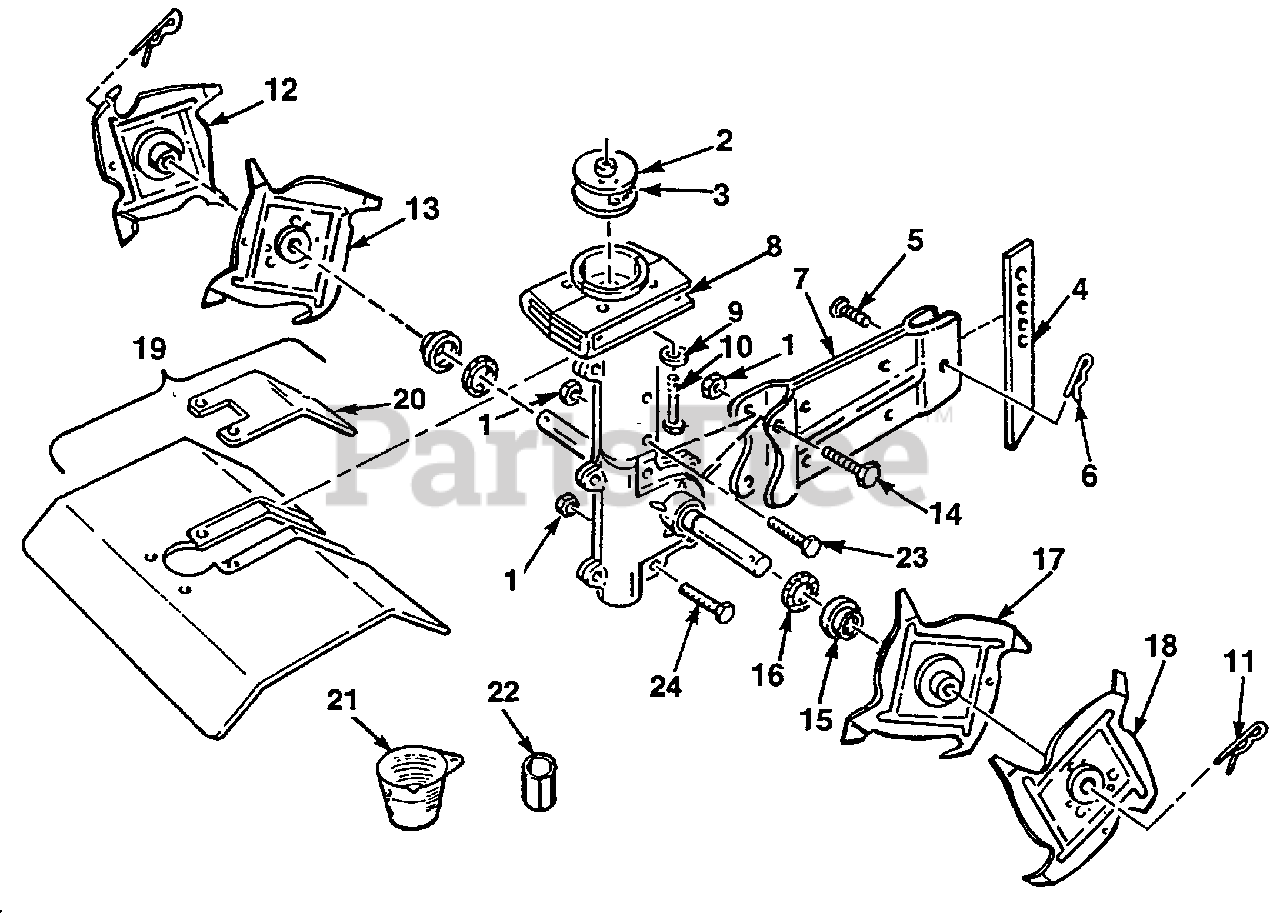

Tiller Parts Diagram

  • Title

1

Homelite 81204

NUT- 1/4-20

$3.49

$

Usually ships in 3-7 days

0

2

Homelite 0107539

CLUTCH

$

$

Not available

3

Homelite 0107553

SPRING- Clutch
(Superseded to UP05896)

$13.99

$

In Stock, only 4 left!

0

4

Homelite 0107520

DRAG STAKE
(Superseded to UP05897)

$

$

Not available

5

Homelite JA461451

PIN- Clevis, 5/16 x 7/8"

$

$

Currently unavailable

6

Homelite 0107566

HAIRPIN

$

$

Not available

7

Homelite 0107570

BRACKET ASSY.- Drag Stake
(Superseded to UP05915)

$27.99

$

Usually ships in 3-7 days

0

8

Homelite 0107571

TRANSMISSION ASSY.

Note: (incl. 7,16, and 15)

$

$

Currently unavailable

9

Homelite 83009

WASHER- Lock 1/4"

$4.99

$

Usually ships in 3-7 days

0

10

Homelite 80295

SCREW- 1/4-20 x 2", hex hd.

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 0107590

HAIRPIN- Cotter 3/4"

$

$

Not available

12

Homelite 0107505

TINE AND HUB- R.H. Outboard (D)

$

$

Not available

13

Homelite 0107509

TINE AND HUB- R.H. Inboard (C)

$

$

Not available

14

Homelite JA400112

SCREW- 1/4-20 x 1"
(Superseded to UP04158)

$

$

Not available

15

Homelite 0107551

DIRT CAP- Black Plastic
(Superseded to UP05909)

$

$

Not available

16

Homelite 0107583

WASHER- Felt 1/8 x 3/4 x 1 1/2"
(Superseded to UP05908)

$6.99

$

Usually ships in 3-7 days

0

17

Homelite 0107513

TINE AND HUB- L.H. Inboard (B)

$

$

Not available

18

Homelite 0107512

TINE AND HUB- L.H. Outboard (A)

$

$

Not available

19

Homelite 0107595

FRONT SHIELD
(Superseded to UP05931)

$

$

Not available

20

Homelite 0107596

REAR SHIELD
(Superseded to UP05931)

$

$

Not available

21

Homelite 0107502

FUEL MIX CUP (Generic)

$

$

Not available

22

Homelite 0107548

TINE SPACERS

$

$

Not available

23

Homelite 80388

SCREW- Hex hd. 1/4-20 x 1 1/4"

$

$

Not available

24

Homelite JA400108

SCREW- hex hd. 1/4-20 x 3/4"
(Superseded to 80052)

$

$

Not available
