MTD 1840 AV CC (41AY08AR900) - Yard Machines Chainsaw General Assembly 1840 Parts Diagram

Chainsaw

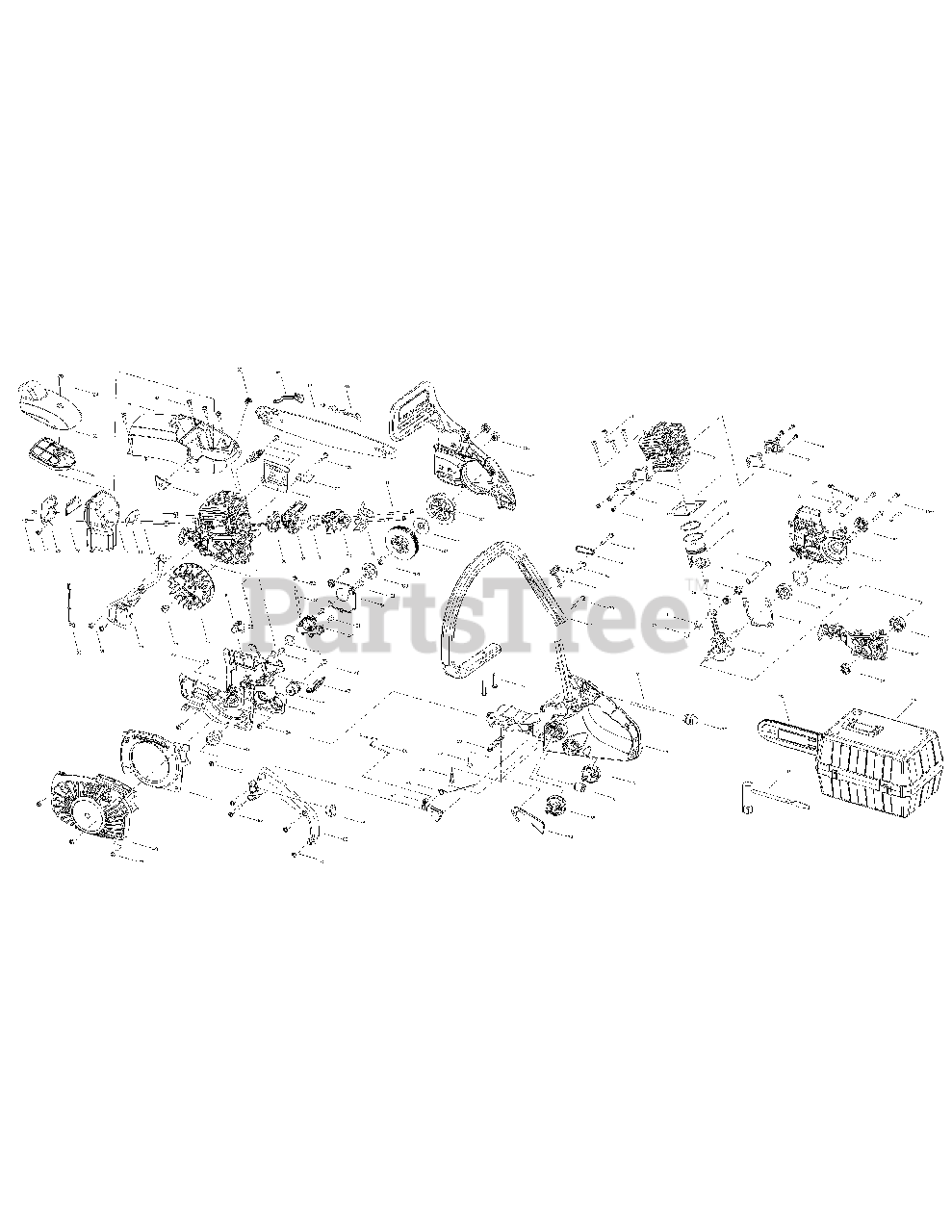

General Assembly 1840 Parts Diagram

  • Title

1

MTD MC-9SGEB-05-20

SCREW

$

$

Not available

2

MTD MC-9SKKB-04-10

SCREW

$

$

Not available

3

MTD MC-9067-310802

CAP

$

$

Not available

4

MTD MC-9014-310803

GASKET

$

$

Not available

5

MTD MC-9292-310801F

CYLINDER

$

$

Not available

6

MTD MC-9067-310801

CAP

$

$

Not available

7

MTD MC-9014-310801

GASKET

$

$

Not available

8

MTD MC-9189-310801

PISTON RING

$

$

Not available

9

MTD MC-9290-310801

PISTON

$

$

Not available

10

MTD MC-9CA-10.3

RING

$

$

Not available

11

MTD MC-9131-310801

WASHER

$

$

Not available

12

MTD MC-9NR-K101411

ROLLER

$

$

Not available

13

MTD MC-9PC-10-35

PIN, PISTON

$

$

Not available

14

MTD MC-9157-332101

SEAL

$

$

Not available

15

MTD MC-9228-310819

CLY CASE ASS' Y

$

$

Not available

15-1

MTD MC-9072-310802F

CLY CASE, LEFT

$

$

Currently unavailable

15-2

MTD MC-9PA-03-08S

PIN

$

$

Not available

15-3

MTD MC-9072-310801F

CLY CASE, RIGHT

$

$

Currently unavailable

15-4

MTD MC-9SKKB-05-27

SCREW

$

$

Not available

16

MTD MC-9DB-620101

BEARING

$

$

Not available

17

MTD MC-9228-310801

CRANK/ROD ASS' Y

$

$

Not available

18

MTD MC-9014-310802

GASKET

$

$

Not available

19

MTD MC-9CB-32

RING

$

$

Not available

20

MTD MC-9157-310801

SEAL

$

$

Not available

21

MTD MC-9191-310802

SCREW

$

$

Not available

22

MTD MC-9010-310801

WIRE

$

$

Not available

23

MTD MC-9NCC-05U

NUT

$

$

Not available

24

MTD MC-9SKKB-05-14

SCREW

$

$

Not available

25

MTD MC-9014-310810

COVER, MESH

$

$

Not available

26

MTD MC-9016-310801

SPARK ARRESTER

$

$

Not available

27

MTD MC-9228-310804

MUFFLER ASS' Y

$

$

Not available

28

MTD MC-9014-310804

BAFFLE

$2.49

$

In Stock, only 1 left!

0

29

MTD MC-9191-310803

SCREW

$2.49

$

In Stock, only 1 left!

0

30

MTD MC-9010-310802

WIRE

$

$

Not available

31

MTD MC-9SKKB-04-14

SCREW

$

$

Not available

32

MTD MC-9288-310801

IGNITION ASS' Y

$

$

Not available

33

MTD MC-9NHC-08

NUT
(Superseded to MC-9NAC-08)

$

$

Not available

34

MTD MC-9169-310801

FLYWHEEL ASS' Y

$

$

Not available

35

MTD MC-6221-830301

WOODRUFF KEY

$

$

Not available

36

MTD MC-9014-310805

SPACER

$

$

Not available

37

MTD MC-9228-310806

ISOLATER ASS'Y, CARBURETER

$

$

Not available

38

MTD MC-9014-310006

SPACER

$

$

Not available

39

MTD MC-9287-310801

CARBURETER

$

$

Not available

40

MTD MC-9072-310803

AIR GUIDE

$

$

Not available

41

MTD MC-9SKKB-04-70

SCREW

$

$

Not available

42

MTD MC-9SKKBB05-18

SCREW
(Superseded to 710-04232)

$5.49

$

In Stock, only 2 left!

0

43

MTD MC-9228-310815

STARTER HOUSING ASS'Y

$

$

Not available

44

MTD MC-9211-310801

CAP, AIRWAY

$

$

Not available

45

MTD MC-9035-310802

PLUG, LEFI

$

$

Currently unavailable

46

MTD MC-9004-310804

BRACKET

$

$

Currently unavailable

47

MTD MC-9012-310801

FIXED, PUSH ROD

$

$

Not available

48

MTD MC-9035-310801

PLUG, RINGHT

$

$

Currently unavailable

49

MTD MC-9228-310805

PUMP ASS'Y

$

$

Not available

50

MTD MC-9072-310806

CAP, ANTI-DUST

$

$

Not available

51

MTD MC-9129-310804

PIPE

$

$

Not available

52

MTD MC-9154-310802

CONNECTOR

$

$

Not available

53

MTD MC-9295-310801

SPARK PLUG

$

$

Not available

54

MTD MC-9014-310811

SPACER

$

$

Not available

55

MTD MC-9263-310801

CATCH:CHAIN

$

$

Not available

56

MTD MC-9SKKB-05-32

SCREW

$

$

Not available

57

MTD MC-9105-310803

CAP, ADJUST

$

$

Not available

58

MTD MC-9067-310805

SHROUD

$

$

Not available

59

MTD MC-9072-310804

HOLDER, CHOKE LEVER

$

$

Not available

60

MTD MC-9114-310801

LEVER, CHOKE

$

$

Not available

61

MTD MC-9228-310808

AIR FILTER ASS.Y

$

$

Not available

62

MTD MC-9067-310806

TOP COVER

$

$

Not available

63

MTD MC-9068-310803

HANDLE, LB

$

$

Not available

64

MTD MC-9022-310701

SWITCH

$

$

Not available

65

MTD MC-9SKKBB05-35

SCREW

$

$

Not available

66

MTD MC-9188-310802

PUSH ROD

$

$

Not available

67

MTD MC-9028-310802

TRIGGER, THROTTLE

$

$

Not available

68

MTD MC-9024-310801

SPRING

$

$

Not available

69

MTD MC-9043-310901

FIXED, PLATE

$

$

Currently unavailable

70

MTD MC-9SKKBB05-27

SCREW

$

$

Not available

71

MTD MC-9068-310801

HANDLE, FRONT

$

$

Not available

72

MTD MC-9024-310802

SPRING

$

$

Not available

73

MTD MC-9043-310802

CAP, SPRING

$

$

Not available

74

MTD MC-9028-310801

TRIGGER, RELEASE

$

$

Not available

75

MTD MC-9228-310809

OIL CAP ASS' Y

$

$

Not available

76

MTD MC-9228-310816

HANDLE ASS'Y (R)

$

$

Not available

77

MTD MC-9142-310002

PRIMER

$21.99

$

In Stock, Qty 20+

0

78

MTD MC-9129-310803

PIPE

$

$

Not available

79

MTD MC-9WFB-10-18

SPACER

$

$

Not available

80

MTD MC-9073-310803

WORM

$

$

Not available

81

MTD MC-9NR-K101313

ROLLER

$

$

Not available

82

MTD MC-9200-310801

DRUM ASS'Y

$

$

Not available

83

MTD MC-9014-310807

WASHER

$

$

Not available

84

MTD MC-9228-310813

CLUTCH ASS'Y

$

$

Not available

85

MTD MC-9228-310814

BRAKE KIT ASS' Y

$

$

Not available

86

MTD MC-9NAZ-5/16-18

NUT

$

$

Not available

87

MTD MC-9182-310101

FUEL FILTER

$

$

Not available

88

MTD MC-9228-310821

FUEL CAP ASS'Y

$

$

Currently unavailable

89

MTD MC-9040-310824F

BAR

$

$

Currently unavailable

90

MTD MC-6220-210813

CHAIN

$

$

Not available

91

MTD MC-9004-310803

BRACKET

$

$

Currently unavailable

92

MTD MC-9042-310201

SPANNER

$

$

Not available

93

MTD MC-9101-310805

SCABBARD

$

$

Not available

94

MTD MC-9120-310801

CARRY CASE

$

$

Not available
