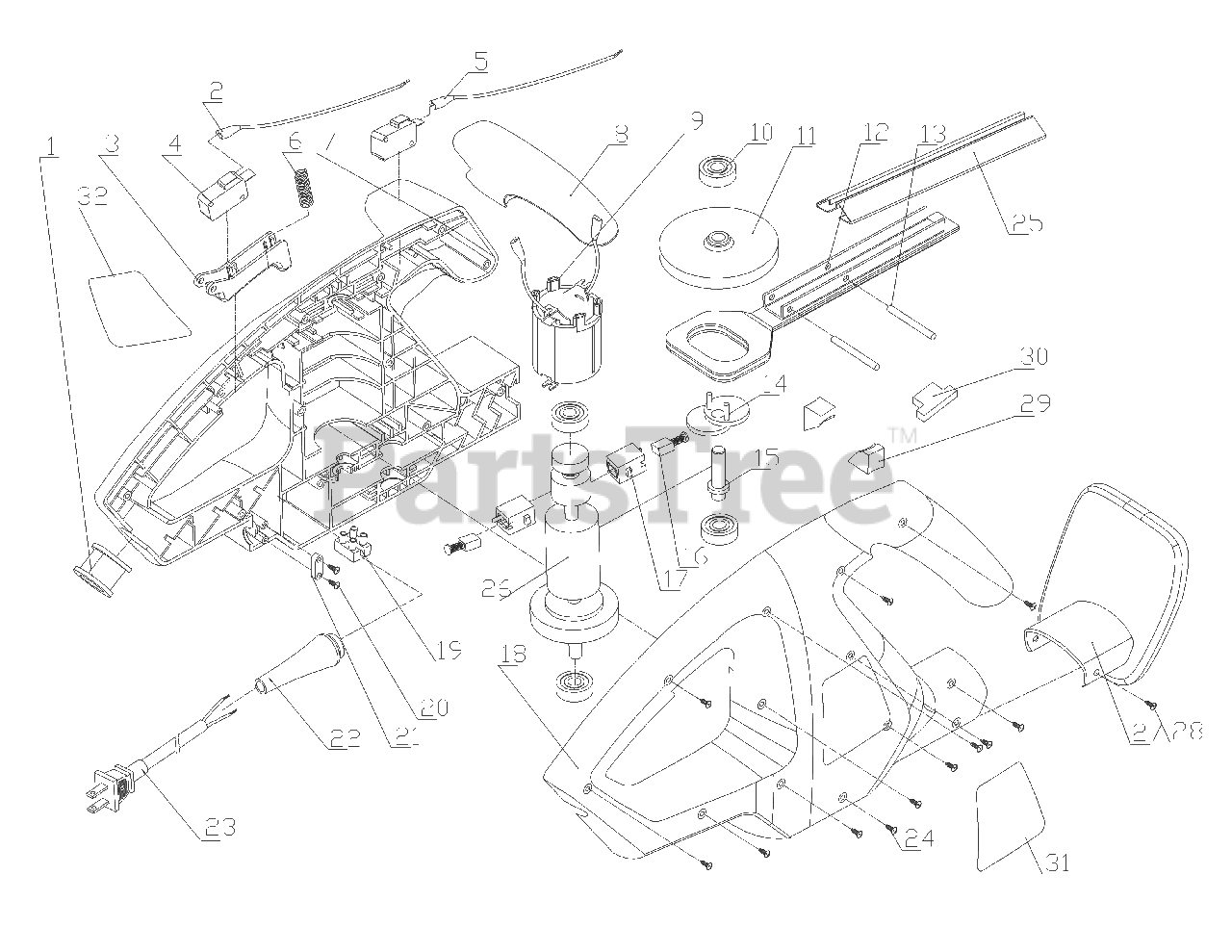

MTD 18K (41AFA18K900) - Yard Machines Hedge Trimmer, Electric General Assembly Parts Diagram

Hedge Trimmer, Electric

General Assembly Parts Diagram

  • Title
1

MTD MC-6059-203A01

Tube

Note:

$

$

Not available

2

MTD MC-6010-203A02

Wire

Note:

$

$

Not available

3

MTD MC-6028-203A06

Trigger

Note:

$

$

Not available

4

MTD MC-6022-203A01

SWITCH

Note:

$

$

Not available

5

MTD MC-6010-203A01

WIRE

Note:

$

$

Not available

6

MTD MC-6024-203A01

SPRING

Note:

$

$

Not available

7

MTD MC-6038-203A05

HOUSING (L)

Note:

$

$

Not available

8

MTD MC-6028-203A05

TRIGGER

Note:

$

$

Not available

9

MTD MC-6261-203A01

FIELD ASS'Y

Note:

$

$

Not available

10

MTD MC-6MB-60801

BEARING

Note:

$

$

Currently unavailable

11

MTD MC-6073-203A01

GEAR

Note:

$

$

Not available

12

MTD MC-6250-203A03

18" BLADE

Note:

$

$

Not available

13

MTD MC-6115-203A01

PIN

Note:

$

$

Not available

14

MTD MC-6112-203A01

ECCENTRIC SHAFT

Note:

$

$

Not available

15

MTD MC-6111-203A01

OUTPUT SHAFT

Note:

$

$

Not available

16

MTD MC-6216-203A01

BRUSH

Note:

$

$

Not available

17

MTD MC-6159-203A01

BRUSH HOLDER

Note:

$

$

Not available

18

MTD MC-6038-203A06

HOUSING (R)

Note:

$

$

Not available

19

MTD MC-6041-840001

TERMINAL BLOCK

Note:

$

$

Not available

20

MTD MC-6SDABB04-14

SCREW

Note:

$

$

Not available

21

MTD MC-6043-982002

STRAIN RELIEF

Note:

$

$

Not available

22

MTD MC-6199-203A01

CORD GUARD

Note:

$

$

Not available

23

MTD MC-6011-203A01

POWER CORD

Note:

$

$

Not available

24

MTD MC-6SDABB04-20

SCREW

Note:

$

$

Not available

25

MTD MC-6017-203A03

BLADE COVER

Note:

$

$

Not available

26

MTD MC-6260-203A01

ARMATURE

Note:

$

$

Not available

27

MTD MC-6262-203A01

COVER

Note:

$

$

Not available

28

MTD MC-6SVABB04-10

SCREW

Note:

$

$

Not available

29

MTD MC-6252-203A02

GASKET

Note:

$

$

Not available

30

MTD MC-6252-203A01

GASKET

Note:

$

$

Not available

31

MTD MC-6097-203A20

LABEL (R)

Note:

$

$

Currently unavailable

32

MTD MC-6097-203A19

LABEL (L)

Note:

$

$

Currently unavailable
