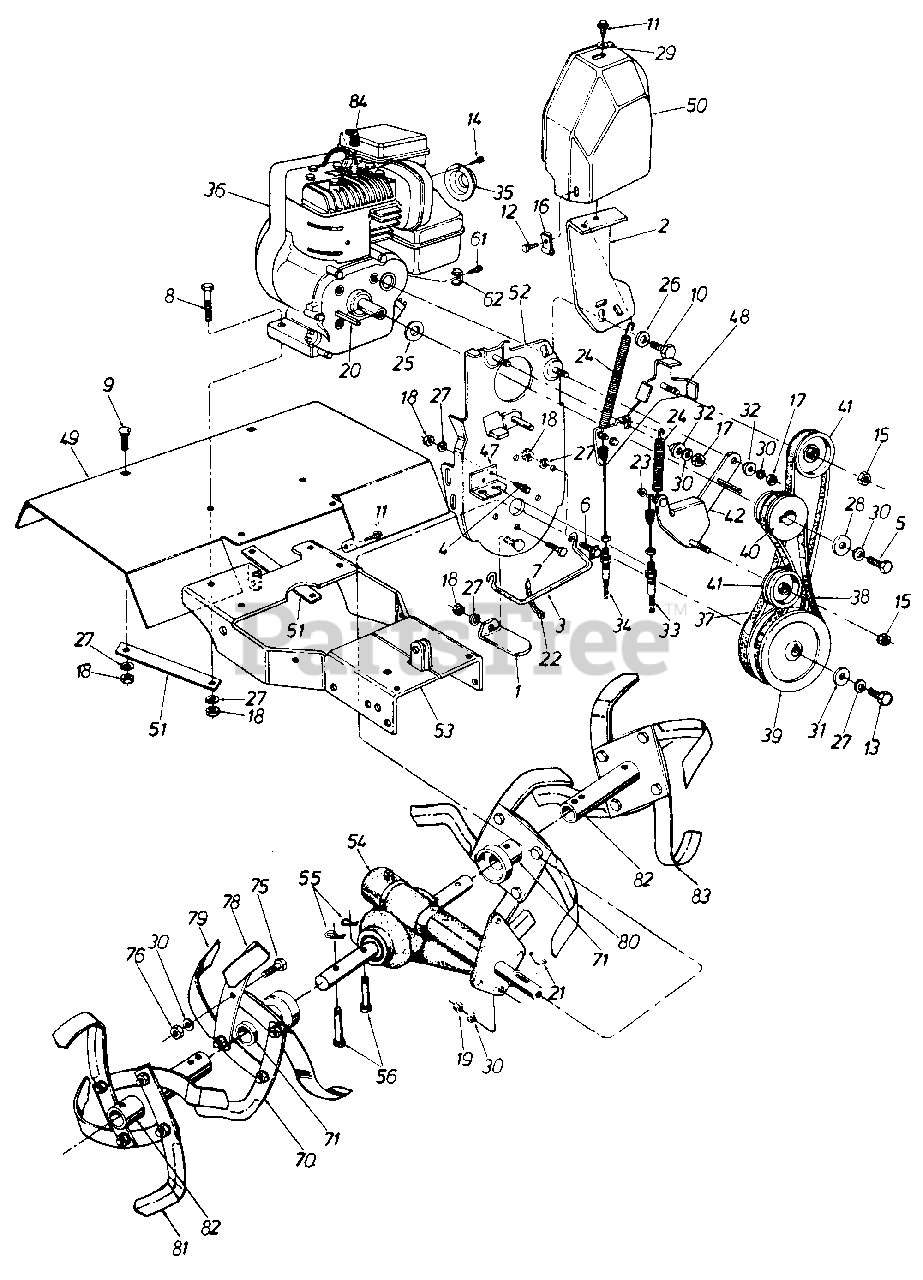

MTD 2105A88 (218-355-098) - Wizard Tiller (1988) (Western Auto) Parts Parts Diagram

Tiller

Parts Parts Diagram

  • Title

1

MTD 04648

Belt Guard

$

$

Currently unavailable

2

MTD 04657

Bracket

$

$

Currently unavailable

3

MTD 04704

Belt Retainer

$

$

Currently unavailable

4

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

6

MTD 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

7

MTD 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$5.99

$

In Stock, Qty 20+

0

9

MTD 710-0451

Carr. Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 7

0

11

MTD 710-0599

Hex TT-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.99

$

In Stock, Qty 20+

0

13

MTD 710-0643

Hex L-Scr. 5/16-18 x 1.0" Lg.

$7.49

$

In Stock, Qty 20+

0

14

MTD 710-0783

Hex Wash. Hd. Sloted Scr. #8-32 x .38" Lg.

$

$

Not available

15

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, only 3 left!

0

16

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

17

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 15

0

18

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

19

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

20

MTD 714-0105

Sq. Key 3/16 x 1.0"
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

21

MTD 714-0126

#9 Hi-Pro Key 3/16 x 3/4"

$4.99

$

In Stock, Qty 20+

0

22

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

23

MTD 726-0106

Cap Speed Nut 1/4 Rod

$4.49

$

Usually ships in 3-6 days

0

24

MTD 732-0562

Extension Spring 3-518" Lg.

$

$

Currently unavailable

25

MTD 736-0315

Fl-Wash. 3/4" I.D. x 1.5" O.D.

$7.49

$

Usually ships in 3-6 days

0

26

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

MTD 736-0133

Fl-Wash. .406" x 1.25" x .10"

$5.99

$

In Stock, Qty 7

0

29

MTD 736-0142

Fl-Wash. .281 I.D. x .50 O.D. x .063"

$4.99

$

In Stock, Qty 20+

0

30

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

31

MTD 736-0231

Fl-Wash. .344" x 1.125" x .125"

$4.99

$

In Stock, Qty 19

0

32

MTD 738-0372

Shoulder Spacer
(Superseded to 738-0372B)

$10.99

$

In Stock, Qty 20+

0

33

MTD 746-0619

Clutch Control Cable

Note: (Forward)

$

$

Not available

34

MTD 746-0620

Clutch Control Cable

Note: (Reverse)

$

$

Not available

35

MTD 751-0233

Muffler Deflector
(Superseded to BS-796956)

$10.99

$

Usually ships in 2-12 days

0

36

5 H.P. Engine-B&S 130202-3113-01

$

$

Not available

37

MTD 754-0189

V-Belt 44" Lg.
(Superseded to 954-0189)

$36.99

$

Usually ships in 3-6 days

0

38

MTD 754-0255

V-Belt 37" Lg.
(Superseded to 954-0255)

$

$

Not available

39

MTD 756-0221

Transmission Pulley

$

$

Not available

40

MTD 756-0223

Engine PuUey

$

$

Not available

41

MTD 756-0225

Fl-ldler Pulley

$

$

Not available

42

MTD 784-0221

Tine Idler Brkt. Ass'y.

$

$

Not available

47

MTD 784-0226

Clutch Cable Bracket

$

$

Not available

48

MTD 784-0237

Idler Bracket Ass'y.

$

$

Not available

49

MTD 784-G240

Tine Shield

$

$

Currently unavailable

50

MTD 784-0241

Belt Guard

$

$

Currently unavailable

51

MTD 784-0246

Brkt. Tine Shield Reinforcement

$

$

Currently unavailable

52

MTD 784-0250

Mounting Plate Ass'y.

$

$

Not available

53

MTD 04697

Tiller Frame Ass'y.

$

$

Currently unavailable

54

MTD 717-0304

Transmission Ass'y. Comp.

Note: (See Breakdown)

$

$

Currently unavailable

55

MTD 714-0149

Internal Coter Pin
(Superseded to 914-0149B)

$

$

Not available

56

MTD 1545-029

Clevis Pin
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

61

MTD 710-0899

Hex Sems Scr. #10-32 x .62" Lg.
(Superseded to 710-0899A)

$7.49

$

Usually ships in 3-6 days

0

62

MTD 751-0360

Casing Clamp
(Superseded to 751B221535)

$10.99

$

In Stock, Qty 20+

0

70

MTD 04675

Inner Tine Adapter Ass'y. Comp. L.H.

$

$

Not available

71

MTD 04673

Inner Tine Adapter Ass'y.

$

$

Currently unavailable

75

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

76

MTD 712-0241

Hex Nut 3/8-24

$4.99

$

In Stock, Qty 15

0

78

MTD 742-0107

Tine 14"-L.H.

Variations

MTD 742-0107-0637

No Longer Available TINE-LH-14 - POWDER BLACK (0637)

$

$

Not available

$

$

79

MTD 742-0108

Tine 14"-R.H.
(Superseded to 742-0108-0637)

Variations

MTD 742-0108-0637

TINE-RH-14IN-BOLO - POWDER BLACK (0637)

$

$

Not available

$

$

80

MTD 04676

Inner Tine Adapter Ass'y. Comp. R.H.

$

$

Currently unavailable

81

MTD 04695

Outer Tine Adapter Ass'y. Comp. L.H.

$

$

Currently unavailable

82

MTD 06797

Outer Tine Adapter Ass'y.

$

$

Currently unavailable

83

MTD 04696

Outer Tine Adapter Ass'y. Comp. R.H.

$

$

Currently unavailable

84

MTD 735-0639

Spark Plug Boot

$

$

Not available
