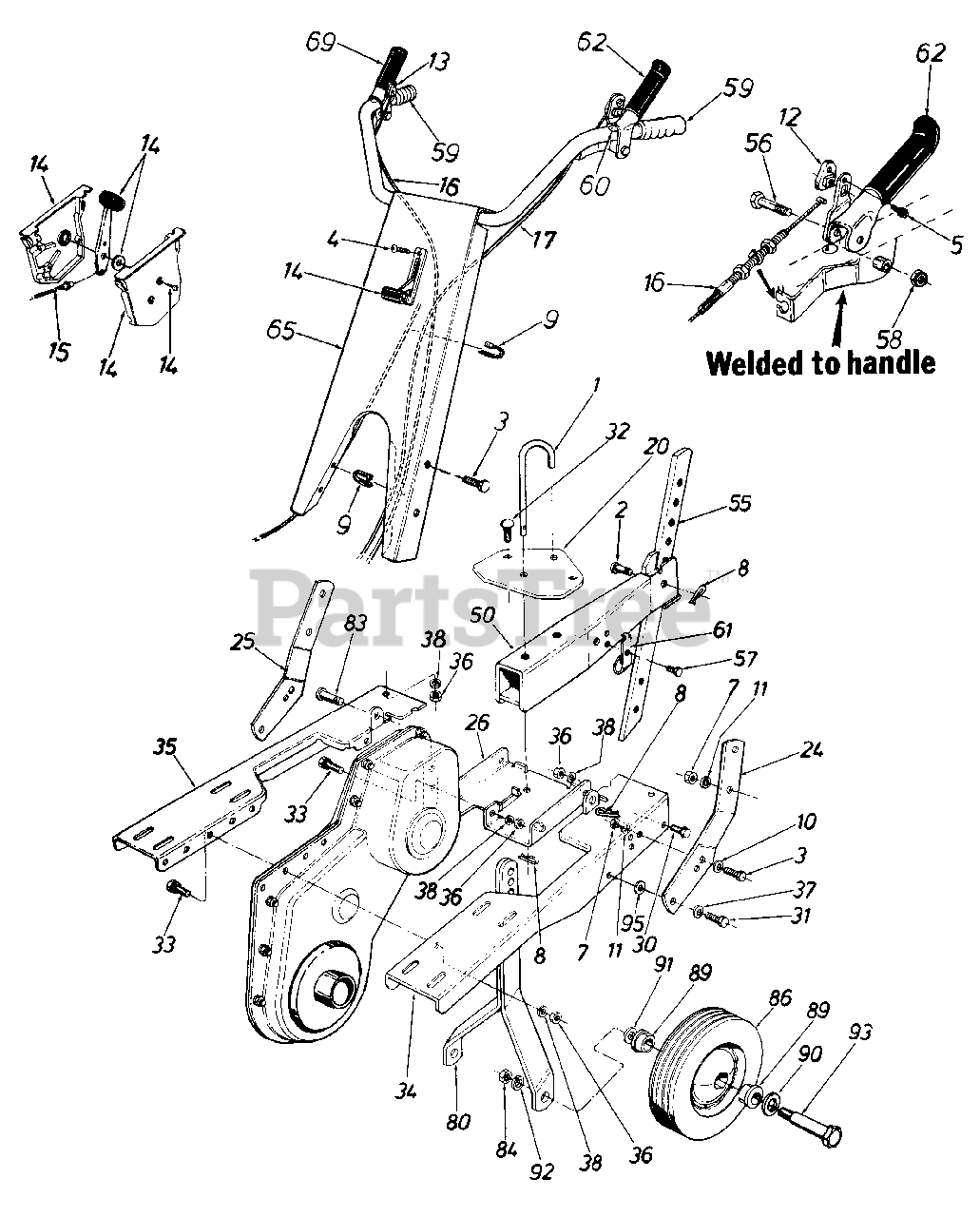

MTD 2205A98 (219-385-098) - Wizard Tiller (1989) (Western Auto) Parts Parts Diagram

Tiller

Parts Parts Diagram

  • Title

1

MTD 04602

U-Clevis Pin .5" Dia.

$

$

Not available

2

MTD 1545-029

Clevis Pin 2" Lg.
(Superseded to 711-0679A)

$13.99

$

In Stock, only 2 left!

0

3

MTD 710-0253

Hex Bolt 3/8-16 x 1.0" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

5

MTD 710-0919

Hex B-Tap Scr. #10 x .44" Lg.

$4.49

$

In Stock, Qty 12

0

7

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

8

MTD 714-0149B

Internal Cotter Pin

$3.99

$

In Stock, Qty 20+

0

9

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

10

MTD 736-0105

Bell-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

11

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

12

MTD 746-0605

Barrel Cable Hold-Down-L.H.
(Superseded to 946-0605)

$3.99

$

In Stock, Qty 17

0

13

MTD 746-0606

Barrel Cable Hold-Down-R.H.

$

$

Not available

14

MTD 831-0823A

Throttle Control Box Ass'y.

$30.99

$

In Stock, Qty 20+

0

15

MTD 746-0503

Throttle Control Wire-35"
(Superseded to 946-0503)

$

$

Not available

16

MTD 746-0622A

Clutch Control Cable-

Note: (Reverse)

$

$

Not available

17

MTD 746-0621A

Clutch Control Cable-
(Superseded to 946-0621B)

Note: (Forward)

$

$

Not available

20

MTD 04586

U-Channel Plate

$

$

Currently unavailable

24

MTD 06805

Handle Brkt.-L.H.

$

$

Currently unavailable

25

MTD 06806

Handle Brkt.-R.H.

$

$

Not available

26

MTD 06816

U-Channel Brkt. Ass'y.

$

$

Currently unavailable

30

MTD 710-0118

Hex Bolt 5/16-18 x .75 Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

31

MTD 710-0253

Hex Bolt 3/8-16 x 1.0" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

32

MTD 710-0451

Carr. Bolt 5/16-18 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

33

MTD 710-0322

Hex Sems Bolt 5/16-18 x 1.0" Lg.

$

$

Not available

34

MTD 06792

Engine U-Channel Ass'y.-L.H.

$

$

Currently unavailable

35

MTD 06794

Engine U-Channel Ass'y.-R.H.

$

$

Not available

36

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-0105

Bell-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

38

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

50

MTD 06807

Tailpiece Ass'y.

$

$

Not available

55

MTD 06811

Depth Stake

$

$

Currently unavailable

56

MTD 710-0151

Hex Bolt 3/8-24 x 2 0n Lg.

$6.99

$

In Stock, Qty 5

0

57

MTD 710-0599

Hex TT-Tap Scr. 1/4-20 x 1 /2n Lg

$3.99

$

In Stock, Qty 20+

0

58

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 7

0

59

MTD 720-0180

Grip Handle
(Superseded to 720-04083)

$13.99

$

In Stock, only 3 left!

0

60

MTD 726-0247

Push Cap
(Superseded to 935-0199A)

Note: (For Handles)

$6.99

$

In Stock, Qty 16

0

61

MTD 732-0322

Depth Stake-Spring

$

$

Currently unavailable

62

MTD 784-0202

Clutch Grip Ass'y.-L.H.
(Superseded to 684-04399A-0637)

$31.99

$

In Stock, Qty 5

0

65

MTD 784-0243

Handle Ass'y.

$

$

Not available

69

MTD 784-0255

Clutch Grip Ass'y.-R.H.

$

$

Not available

80

MTD 06813

Wheel Yoke Ass'y.

$

$

Not available

83

MTD 1545-029

Clevis Pin 2" Lg.
(Superseded to 711-0679A)

$13.99

$

In Stock, only 2 left!

0

84

MTD 712-0200A

Hex Jam Nut 1/2-20 Thd.

$4.49

$

In Stock, only 1 left!

0

86

MTD 734-0584

Wheel Ass'y. 10 x 1.75
(Superseded to 753-04874)

$58.99

$

In Stock, only 1 left!

0

89

MTD 741-0116

Flange Brg. .631 I.D.

$

$

Not available

90

MTD 736-0187

Fl-Wash. .640" x 1.24n x 06n

$4.49

$

In Stock, Qty 20+

0

91

MTD 736-0253

Bell-Wash. 1/2n I.D.

$3.99

$

In Stock, Qty 20+

0

92

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 20+

0

93

MTD 738-0318

Shoulder Bolt .625" Dia. x 2.75"

$

$

Not available

MTD 784-0257

Transmission Comp.

$

$

Currently unavailable

95

UNKNOWN

$

$

Not available
