MTD 27P (41AC027P900) - Yard Machines String Trimmer, Electric General Assembly Parts Diagram

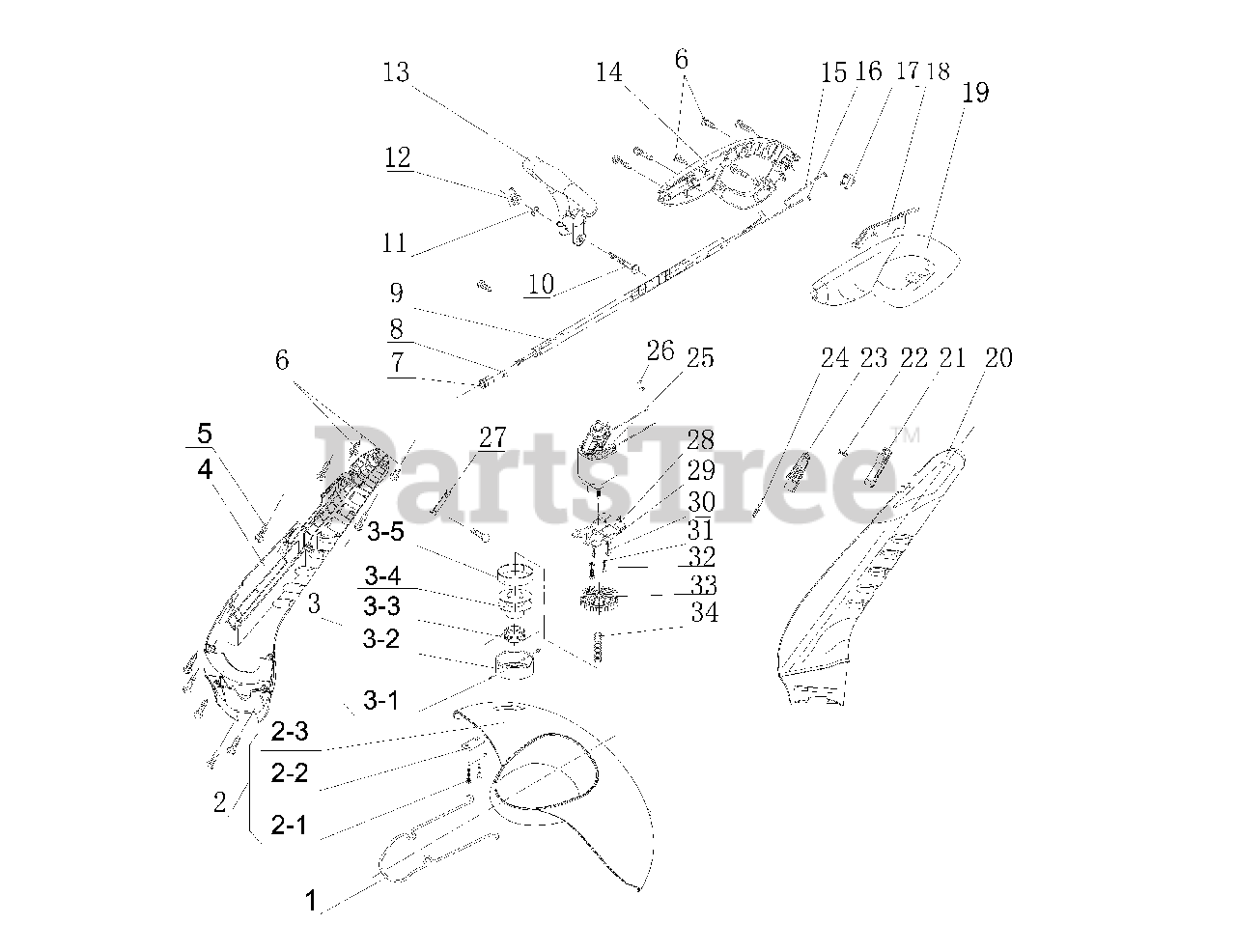

String Trimmer, Electric

General Assembly Parts Diagram

  • Title

$

$

Not available

2

MTD MC-6228-202701

GUARD ASS'Y

$

$

Not available

2-1

$

$

Not available

2-2

MTD MC-6250-202503

WIRE CUTTING BLADE

$

$

Not available

2-3

$

$

Not available

3-1

$

$

Not available

3-2

MTD MC-6059-202005A

SPOOL COVER

$

$

Not available

3-3

MTD MC-6194-202001

WIRE-CUTTING 9m

$

$

Not available

3-4

MTD MC-6008-202001A

SPOOL CARRIER

$

$

Not available

3-5

MTD MC-6059-202004

SPOOL COVER

$

$

Not available

3

MTD MC-6228-202004A

SPOOL CARRIER ASS'Y

$

$

Not available

4

MTD MC-6038-202-606

HOUSING (R)

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

8

MTD MC-6056-202-603

SNAP BUTTON

$

$

Currently unavailable

9

MTD MC-6114-202602

ADJUSTABLE ROD

$

$

Not available

$

$

Not available

11

$

$

Not available

$

$

Not available

13

MTD MC-6196-202601

CENTRAL HANDGRIP

$

$

Not available

14

MTD MC-6068-202-606

UPPER HANDGRIP (R)

$

$

Not available

$

$

Not available

$

$

Not available

17

$

$

Not available

18

$

$

Not available

19

MTD MC-6068-202-605

UPPER HANDGRIP (L)

$

$

Not available

20

MTD MC-6038-202-605

HOUSING (L)

$

$

Not available

21

$

$

Currently unavailable

22

$

$

Not available

$

$

Currently unavailable

24

$

$

Not available

25

MTD MC-6099-202702

MOTOR 120V

$

$

Not available

26

MTD MC-6154-840001

TERMINAL BLOCK

$

$

Not available

27

$

$

Not available

28

MTD MC-6072-202601

MOTOR PLATE

$

$

Not available

29

$

$

Not available

30

$

$

Not available

31

$

$

Not available

$

$

Not available

33

MTD MC-6270-202003

CUTTER ASS'Y

$

$

Not available

34

$

$

Not available
