MTD 5520 (41BY85AR978) - Murray Chainsaw Engine Assembly Parts Diagram

Chainsaw

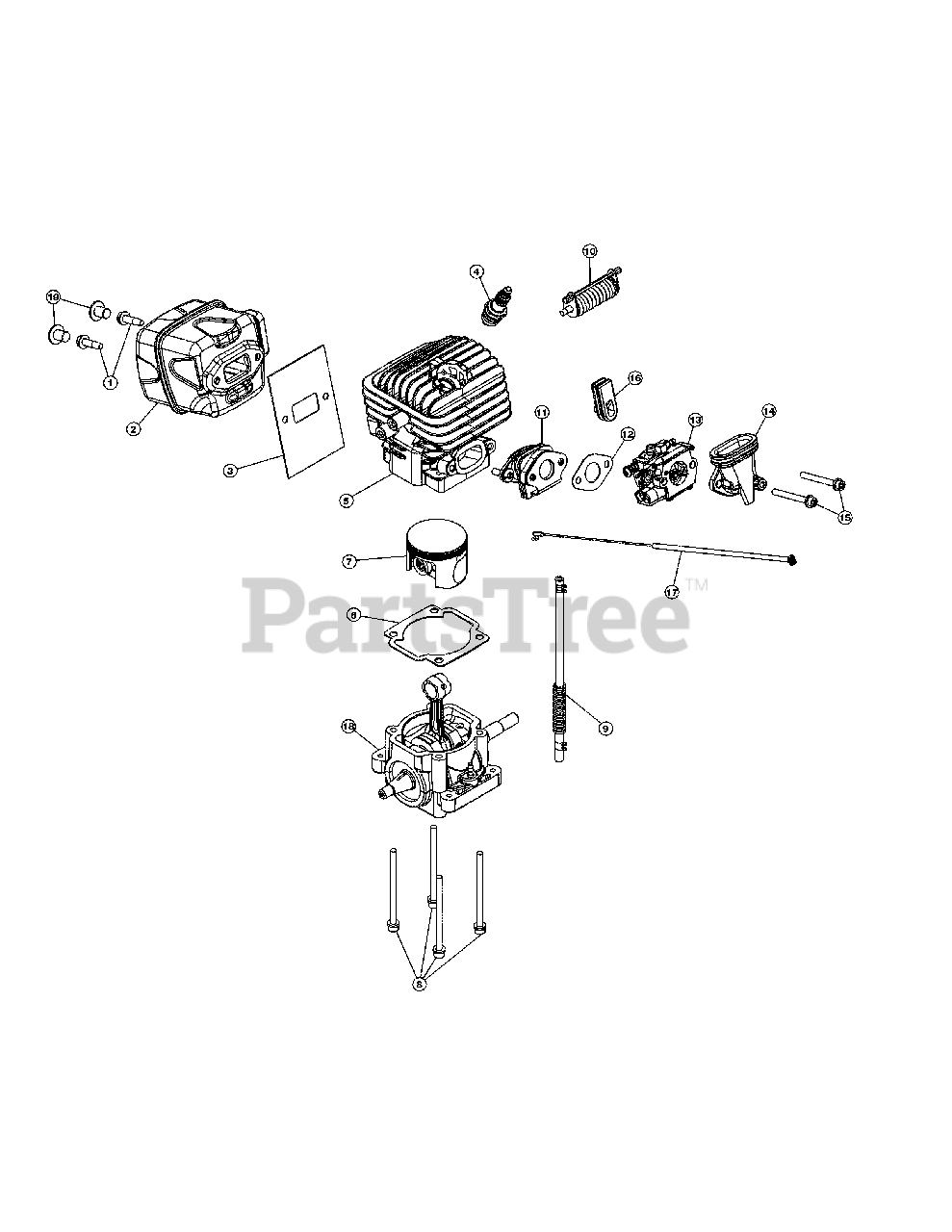

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06397

Muffler Screw

$

$

Not available

2

MTD 753-06268

Muffler Assembly (Incl. 1, 3 & 19)

$

$

Not available

3

MTD 753-06398

Muffler Gasket

$2.99

$

Usually ships in 3-6 days

0

4

MTD 753-06269

Spark Plug

$

$

Not available

5

MTD 753-06742

Cylinder Assembly (Incl. 6, 8 & 10)

$

$

Not available

6

MTD 753-06400

Cylinder Gasket

$3.49

$

In Stock, only 1 left!

0

7

MTD 753-06743

Piston Assembly

$

$

Not available

8

MTD 753-06402

Cylinder Hardware

$2.99

$

Usually ships in 3-6 days

0

9

MTD 753-06726

Breather Hose w/clamp

$2.99

$

Usually ships in 3-6 days

0

10

MTD 753-06404

Isolator Assembly

$6.49

$

Usually ships in 3-6 days

0

11

MTD 753-06727

Insulator Assembly

$

$

Not available

12

MTD 753-06406

Carburetor Gasket

$

$

Not available

13

MTD 753-06728

Carburetor

$30.99

$

In Stock, only 4 left!

0

14

MTD 753-06385

Boot & Bracket Assembly (Incl. 16 & 17)

$

$

Not available

15

MTD 753-06410

Carburetor Hardware

$2.49

$

Usually ships in 3-6 days

0

16

MTD 753-06411

Grommet

$2.49

$

Usually ships in 3-6 days

0

17

MTD 753-06409

Throttle Cable

$

$

Not available

18

MTD 753-06744

Shortblock Assembly (Incl. 4-10)

$

$

Not available

19

MTD 753-06507

Muffler Plug

$

$

Not available
