MTD A13P (41ACA13P900) - Yard Machines String Trimmer, Electric General Assembly Parts Diagram

String Trimmer, Electric

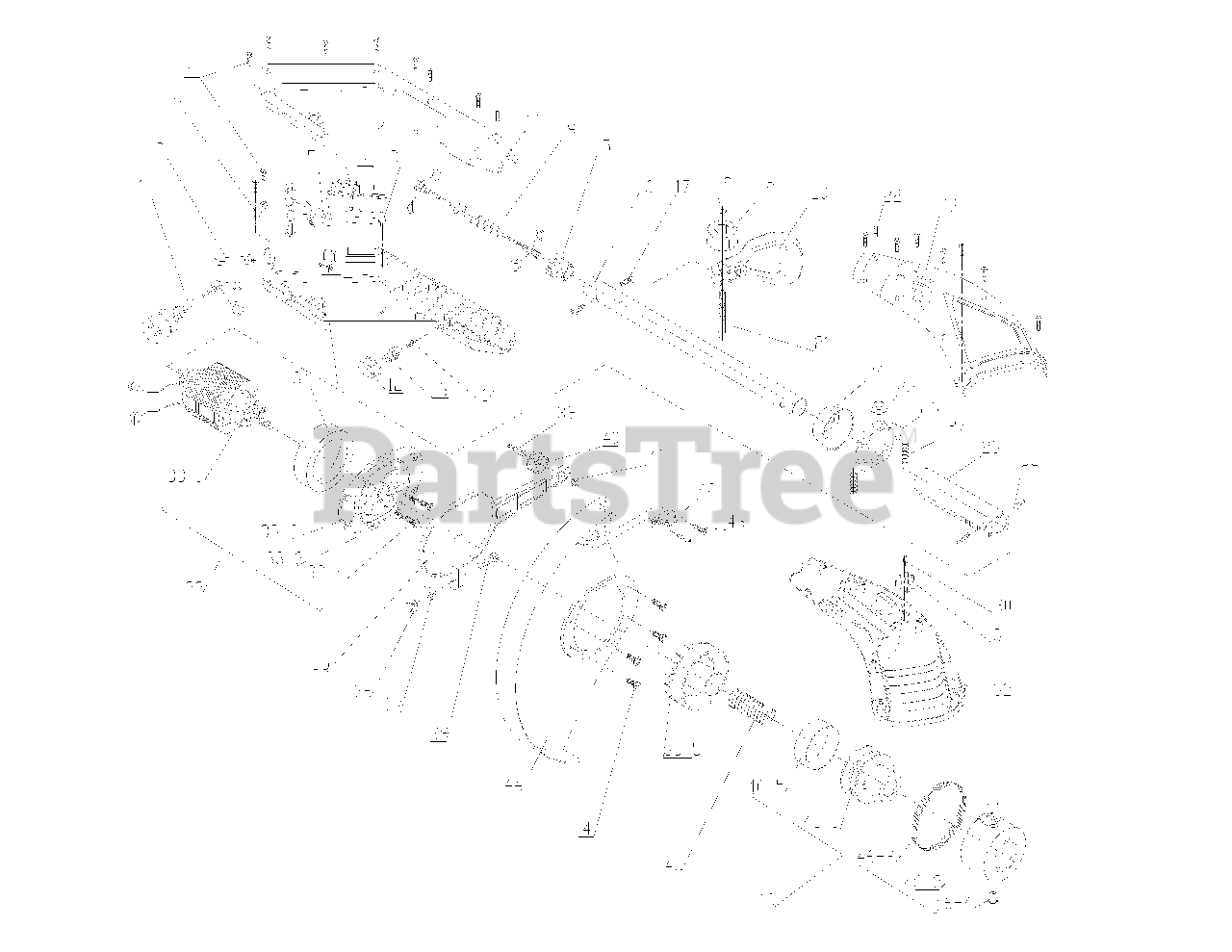

General Assembly Parts Diagram

  • Title

1

MTD MC-6011-202A02

POWER CORD

$

$

Not available

2

MTD MC-6199-202A01

CORD GUARD

$

$

Not available

3

MTD MC-6043-815501

PLATE (PRESSING CORD)

$

$

Not available

4

MTD MC-6SDABB04-14

SCREW

$

$

Not available

5

MTD MC-6022-202A01

SWITCH

$

$

Not available

6

MTD MC-6134-202A04

TRIGGER

$

$

Not available

7

MTD MC-6024-202A01

SPRING

$

$

Not available

8

MTD MC-6134-202A05

TRIGGER

$

$

Not available

9

MTD MC-6010-202A01

WIRE

$

$

Not available

10

MTD MC-6068-202A06

UPPER HANDGRIP (R)

$

$

Not available

11

MTD MC-6068-202A05

UPPER HANDGRIP (L)

$

$

Not available

12

MTD MC-6056-202A03

BUTTON

$

$

Not available

13

MTD MC-6021-202A01

LEVER

$

$

Not available

14

MTD MC-6024-202A02

SPRING

$5.99

$

In Stock, only 1 left!

0

15

MTD MC-6131-202A01

JOINT PIPE

$

$

Not available

16

MTD MC-6129-202A01

CENTRAL TUBE

$

$

Not available

17

MTD MC-6SDABB04-06

SCREW

$

$

Not available

18

MTD MC-6NAB-06

NUT

$

$

Not available

19

MTD MC-6056-230302

BUTTON

$

$

Not available

20

MTD MC-6068-230301

CENTRAL HANDGRIP

$

$

Not available

21

MTD MC-6SXDB-06-65

SCREW

$

$

Not available

22

MTD MC-6SDABB04-18

SCREW

$

$

Not available

23

MTD MC-6038-202A05

HOUSING (R)

$

$

Not available

24

MTD MC-6059-202A01

JACKET

$

$

Not available

25

MTD MC-6056-202A04

BUTTON

$

$

Not available

26

MTD MC-6239-202A01

FIXED RING

$

$

Not available

27

MTD MC-6024-202A03

SPRING

$

$

Not available

28

MTD MC-6131-202A02

EXPANDING RING

$

$

Not available

29

MTD MC-6SVABB04-10

SCREW

$

$

Not available

30

MTD MC-6SDABA03-16

SCREW

$

$

Not available

31

MTD MC-6041-840001

TERMINAL BLOCK

$

$

Not available

32

MTD MC-6038-202A06

HOUSING (L)

$

$

Not available

33

MTD MC-6228-202A15

MOTOR ASS'Y

$

$

Not available

33-1

MTD MC-6099-202A03

MOTOR

$

$

Not available

33-2

MTD MC-6187-202A01

FIXED PLATE

$

$

Not available

33-3

MTD MC-6SDAB-03-12

SCREW

$

$

Not available

33-4

MTD MC-6SDAB-04-12

SCREW

$

$

Not available

33-5

MTD MC-6270-202003

CUTTER ASS'Y

$

$

Not available

34

MTD MC-6131-202A04

CUSHION RING

$

$

Not available

35

MTD MC-6114-202A02

EGDER GUIDE

$

$

Not available

36

MTD MC-6NBB-06

NUT

$

$

Not available

37

MTD MC-6043-202A01

GASKET

$

$

Not available

38

MTD MC-6SXDB-06-20

SCREW

$

$

Not available

39

MTD MC-6115-202A01

SHAFT PIN

$

$

Not available

40

MTD MC-6137-202A01

WHEEL

$

$

Not available

41

MTD MC-6NAB-05

NUT

$

$

Not available

42

MTD MC-6250-202503

WIRE CUTTING BLADE

$

$

Not available

43

MTD MC-6SDABB04-08

SCREW

$

$

Not available

44

MTD MC-6262-202A02

SHIELD

$

$

Not available

45

MTD MC-6024-202A04

SPRING

$

$

Not available

46

MTD MC-6228-202004A

SPOOL CARRIER ASS'Y

$

$

Not available

46-1

MTD MC-6008-202001A

SPOOL CARRIER

$

$

Not available

46-2

MTD MC-6194-202001

WIRE-CUTTING

$

$

Not available

46-3

MTD MC-6059-202005A

SPOOL COVER

$

$

Not available

46-4

MTD MC-6140-B23101

PILOT

$

$

Not available

46-5

MTD MC-6059-202004

BLISTER PACK

$

$

Not available
