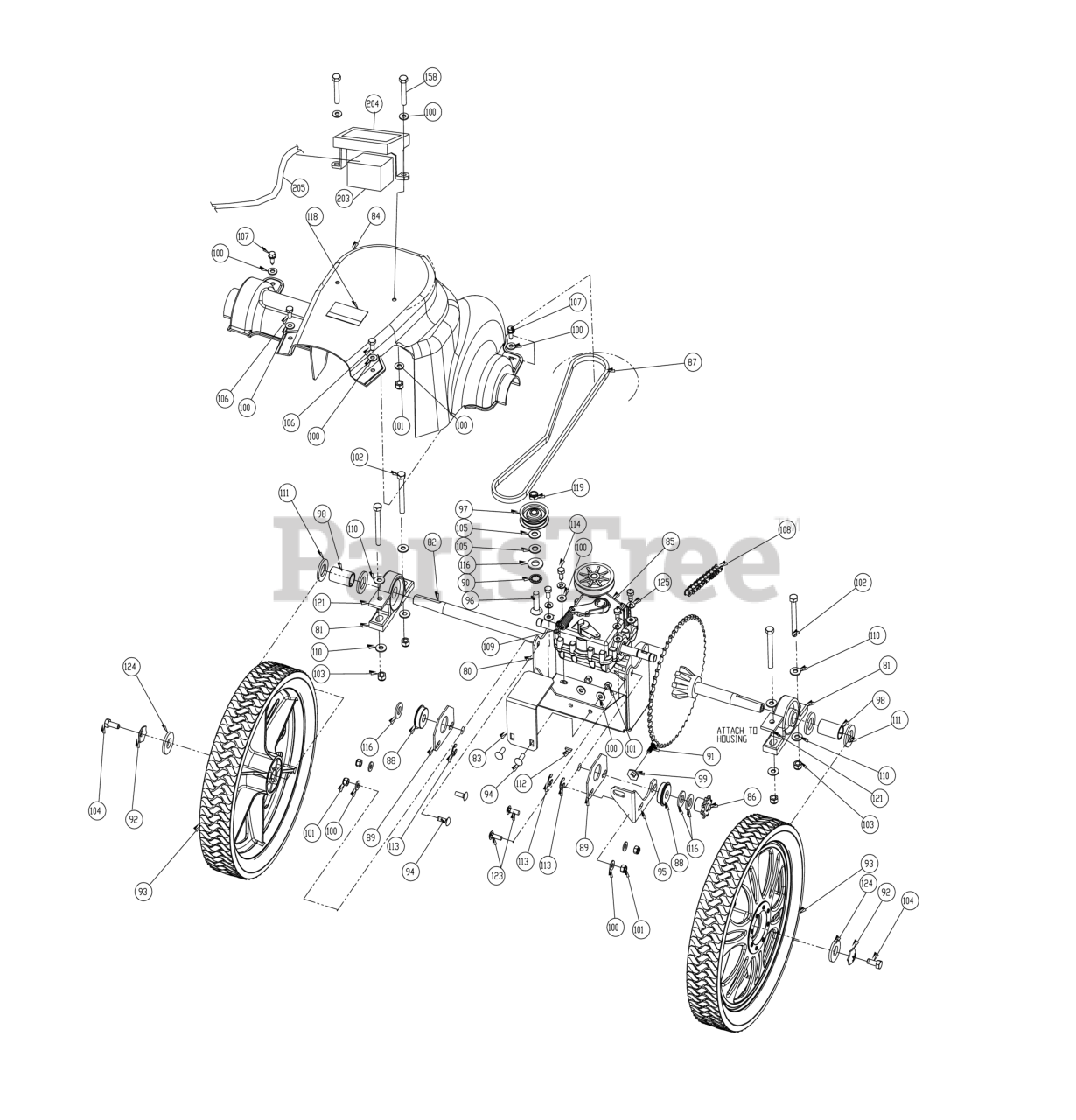

MV 650 SPHDS - Billy Goat Lawn & Litter Vacuum Drive /Rear Axle Assembly Parts Diagram

Lawn & Litter Vacuum

Drive /Rear Axle Assembly Parts Diagram

  • Title

80

Billy Goat 840110

BRACKET TRANS MOUNT WA VAC

$66.99

$

Usually ships in 2-11 days

0

81

Billy Goat 350133

BEARING 3/4" CAST P BLOCK

$37.99

$

In Stock, only 2 left!

0

82

Billy Goat 840009

DIFFERENTIAL 54 TOOTH D CUT

$343.99

$

Usually ships in 2-11 days

0

83

Billy Goat 840086

BRACKET TRANS ANTI ROTATE

$42.99

$

Usually ships in 2-11 days

0

84

Billy Goat 840010

GUARD COVER TRANS DRIVE

$196.99

$

Usually ships in 2-11 days

0

85

Billy Goat 840085

TRANSMISSION 3 SP GENERAL TRANS

$425.99

$

Usually ships in 2-11 days

0

86

Billy Goat 510126

SPROCKET 8 TOOTH 41B8

$16.99

$

Usually ships in 2-11 days

0

87

Billy Goat 840066

BELT MV

$24.99

$

Usually ships in 2-11 days

0

88

Billy Goat 510125

BEARING 1/2" CLIP

$9.99

$

Usually ships in 2-11 days

0

89

Billy Goat 840011

PLATE TRANS BEARING SUPPORT

$6.99

$

Usually ships in 2-11 days

0

90

Billy Goat 520025

WASHER LOCK 1/2" INTERNAL TOOTH

$0.99

$

Usually ships in 2-11 days

0

91

Billy Goat 8041004

SCREWCAP 1/4"-20X3/4" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

92

Billy Goat 430298

WASHER LOCK 5/16" TWISTED TOOTH HEAVY

$1.99

$

Usually ships in 2-11 days

0

93

Billy Goat 840102

WHEEL AND TIRE 14" TREADED

$129.99

$

Usually ships in 2-11 days

0

94

Billy Goat 8024021

BOLT CARRIAGE 1/4" X 3/4"

$0.99

$

Usually ships in 2-11 days

0

95

Billy Goat 840028

BRACKET TRANS REINFORCE VAC

$13.99

$

Usually ships in 2-11 days

0

96

Billy Goat 8024060

BOLT CARRIAGE 3/8"-16 X 1 1/2" ZP

$1.49

$

Usually ships in 2-11 days

0

97

Billy Goat 840087

PULLEY IDLER 2"OD X 3/8" ID

$20.99

$

In Stock, only 1 left!

0

98

Billy Goat 840027

SPACER WHEEL 0.75 ID

$10.99

$

In Stock, only 1 left!

0

99

Billy Goat 840188

BRACKET BEARING FIX MV

$2.99

$

In Stock, only 2 left!

0

100

Billy Goat 8172007

WASHER 1/4"SAE9/32"X5/8"X1/16"

$0.99

$

In Stock, Qty 11

0

101

Billy Goat 8160001

NUT LOCK 1/4"-20 HEX Z/P

$0.99

$

In Stock, only 2 left!

0

102

Billy Goat 8041036

SCREWCAP 5/16"-18 X 3" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

103

Billy Goat 8160002

NUT LOCK 5/16"-18 HEX Z/P

$0.99

$

In Stock, Qty 11

0

104

Billy Goat 8041026

SCREWCAP 5/16"-18X3/4" HCS ZP

$0.99

$

In Stock, Qty 6

0

105

Billy Goat 8172009

WASHER 3/8"SAE 13/32"X13/16"X1/16"

$1.49

$

In Stock, only 2 left!

0

106

Billy Goat 890359

SCREW SELF TAP 1/4"-20 X 5/8" HWH TYPE F

$1.49

$

In Stock, Qty 8

0

107

Billy Goat 8122082

SCREW SM 1/4"X3/4" TYPE A HX WF

$1.49

$

Usually ships in 2-11 days

0

108

Billy Goat 840072

SEE: 840072-S
(Superseded to 840072-S)

$61.99

$

In Stock, only 1 left!

0

109

Billy Goat 800242

SPRING EXTENSION

$4.49

$

In Stock, only 2 left!

0

110

Billy Goat 8171002

WASHER 1/4" FLAT Z/P

$0.99

$

In Stock, Qty 6

0

111

Billy Goat 8172015

WASHER 3/4" SAE 13/16"X1.5"X1/8"ZP

$0.99

$

In Stock, only 3 left!

0

112

Billy Goat 510180

KEY WOODRUFF 1/8" X 1/2"

$1.49

$

In Stock, Qty 7

0

113

Billy Goat 350146

RING RETAINING 1/2"

$0.99

$

In Stock, Qty 13

0

114

Billy Goat 840213

SCREWCAP 1/4"-20 X 5/8" GR 5

$0.99

$

Usually ships in 2-11 days

0

116

Billy Goat 8171006

WASHER 1/2"FC9/16"X1 3/8"X7/64"

$0.99

$

Usually ships in 2-11 days

0

118

Billy Goat 900327

LABEL DANGER

$3.99

$

In Stock, only 3 left!

0

119

Billy Goat 8161042

NUT LOCK 3/8-16 LT WT THIN ZP

$0.99

$

In Stock, Qty 11

0

121

Billy Goat 840188

BRACKET BEARING FIX MV

$2.99

$

In Stock, only 2 left!

0

123

Billy Goat 8024022

BOLT CARRIAGE 1/4"-20 X 1" ZP

$0.99

$

Usually ships in 0 days

0

124

Billy Goat 8172020

WASHER FLAT FENDER 5/16

$0.99

$

In Stock, only 4 left!

0

125

Billy Goat 8177010

WASHER LOCK 1/4" S/T MED

$

$

Not available

195

Billy Goat 840017

BEARING 1/2 ID
(Superseded to 900774)

$8.99

$

In Stock, only 1 left!

0
