MX 18500 E (1696367-00) - Murray 18" Walk-Behind Mower (2013) Lift Group (1696367) Parts Diagram

18" Walk-Behind Mower

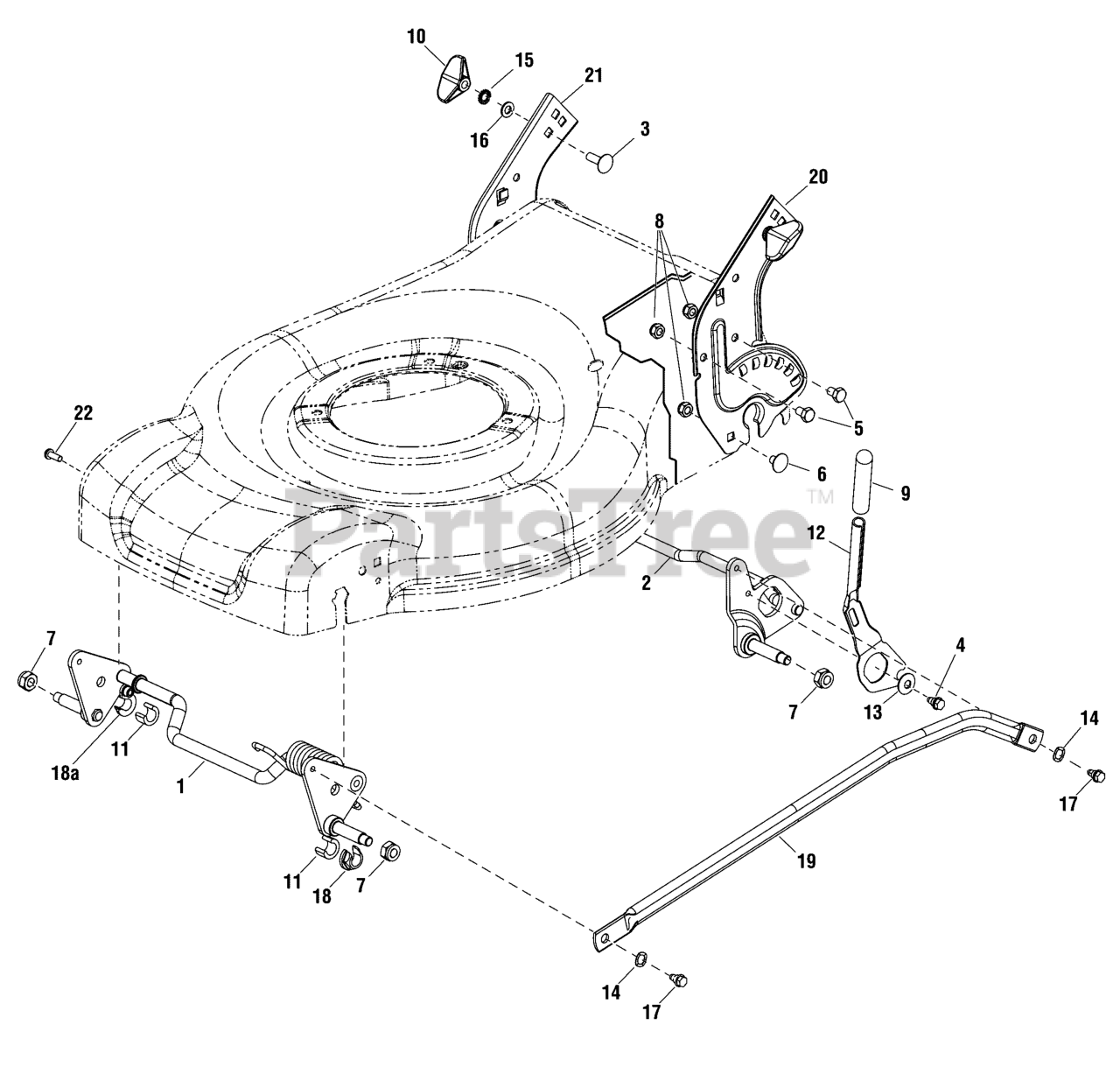

Lift Group (1696367) Parts Diagram

  • Title

1

Murray 703605

CROSSBAR ASSEMBLY, Front

$

$

Currently unavailable

2

Murray 703606

CROSSBAR ASSEMBLY, Rear

$

$

Currently unavailable

3

Murray 703623

SCREW, Head, M8 x 25 DIN 603

$

$

Currently unavailable

4

Murray 703624

SCREW, TT, 1/4-20 x 1/2

$

$

Currently unavailable

5

Murray 703627

SCREW, M8 x 12 DIN 933

$

$

Currently unavailable

6

Murray 703629

BOLT, Carriage, M8 x 12 DIN 933

$

$

Currently unavailable

7

Murray 703633

NUT, M10 x 1.25 DIN 985

$

$

Currently unavailable

8

Murray 703635

NUT, M8 DIN 985

$

$

Currently unavailable

9

Murray 703644

KNOB, Adjuster, 0.50 x 3.54

$9.99

$

Usually ships in 2-12 days

0

10

Murray 703646

NUT, WING, M8 x 1.25

$

$

Currently unavailable

11

Murray 703655

SPACER, Clip, 1/2 x 500

$

$

Currently unavailable

12

Murray 703694

LEVER, Height Adjustment

$26.99

$

In Stock, only 1 left!

0

13

Murray 703519

WASHER, Belleville, 0.340X0.872X0.060

$6.99

$

Usually ships in 2-12 days

0

14

Murray 703711

WASHER, Wave, 0.390 x 3/4

$9.49

$

Usually ships in 2-12 days

0

15

Murray 703782

WASHER, B8,4 DIN 6798

$

$

Currently unavailable

16

Murray 703783

WASHER, Flat, A8.4 DIN 125

$

$

Currently unavailable

17

Murray 703714

SCREW, Shoulder, 1/4-20 x 1/2

$

$

Currently unavailable

18

Murray 703715

BEARING, Flange Hex, D 0.500

$

$

Currently unavailable

18A

Murray 703716

BEARING, Flange, D 0.500

$

$

Currently unavailable

19

Murray 703740

LINK, Single Lever

$

$

Currently unavailable

20

Murray 703771

BRACKET ASSEMBLY, LH

$

$

Currently unavailable

21

Murray 703772

BRACKET ASSEMBLY, RH

$

$

Currently unavailable

22

Murray 703622

SCREW, M6 x 16

$

$

Currently unavailable
