MX 450 (881021) - Murray 16" Walk-Behind Mower, Canada (2010) Drive Group Parts Diagram

16" Walk-Behind Mower, Canada

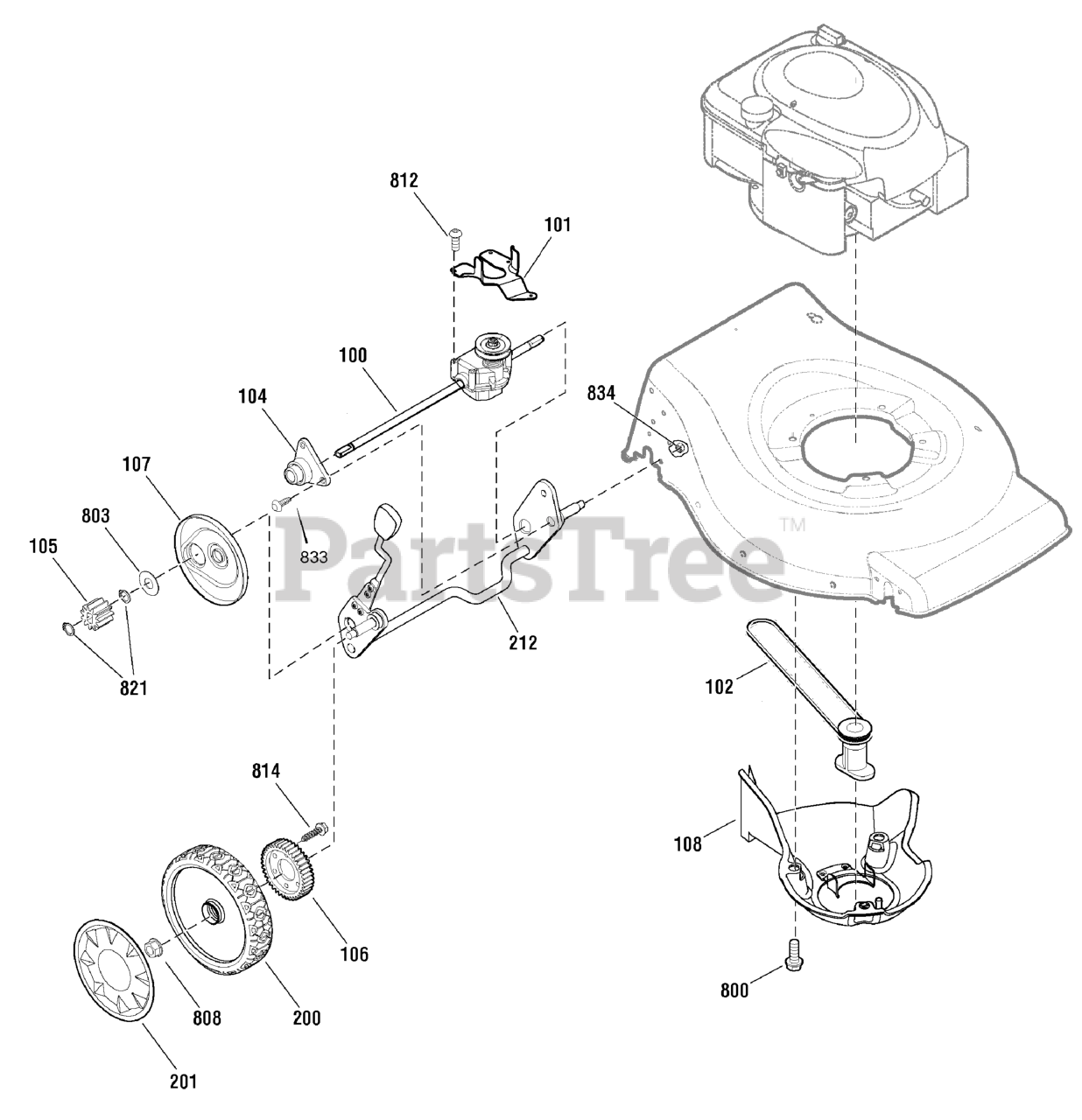

Drive Group Parts Diagram

  • Title

100

Murray 880379YP

TRANSMISSION

$91.99

$

Usually ships in 2-12 days

0

101

Murray 880282YP

BELT GUIDE, Transmission

$12.99

$

Usually ships in 2-12 days

0

102

Murray 880424YP

V-BELT

$22.99

$

Usually ships in 2-12 days

0

104

Murray 880787YP

SLEEVE ASSEMBLY, Rear Axle

$17.99

$

Usually ships in 2-12 days

0

105

Murray 880226YP

GEAR, Pinion

$7.99

$

Usually ships in 2-12 days

0

106

Murray 880225YP

GEAR, Drive

$7.49

$

Usually ships in 2-12 days

0

107

Murray 880640YP

DUST COVER

$22.99

$

In Stock, only 1 left!

0

108

Murray 880796YP

BELT COVER ASSEMBLY

$22.99

$

Usually ships in 2-12 days

0

200

Murray 880194YP

WHEEL, Rear

$

$

Not available

201

Murray 880699YP

HUBCAP, Rear

$13.99

$

Usually ships in 2-12 days

0

212

Murray 880873BIYP

CROSSBAR, Rear
(Superseded to 880873BMYP)

$63.99

$

Usually ships in 2-12 days

0

800

Murray 0025X6MA

CAPSCREW, Hex Head, 3/8-16 x 1

$5.49

$

Usually ships in 2-12 days

0

803

Murray 880324YP

WASHER, Thrust

$3.49

$

Usually ships in 2-12 days

0

808

Murray 015X84MA

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

812

Murray 880760YP

SCREW, #10 x 1

$4.49

$

Usually ships in 2-12 days

0

814

Murray 26X296MA

SCREW, 1/4-15 x 3/4

$4.49

$

In Stock, only 1 left!

0

821

Murray 880269YP

RING, External Retaining

$3.99

$

Usually ships in 2-12 days

0

822

Murray 15X116MA

NUT, Hex, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

833

Murray 880845YP

SCREW, Torx, 1/4-20 x 5/8

$3.49

$

Usually ships in 2-12 days

0

834

Murray 880859YP

NUT, Flange Lock, 1/4-20

$3.99

$

Usually ships in 2-12 days

0
