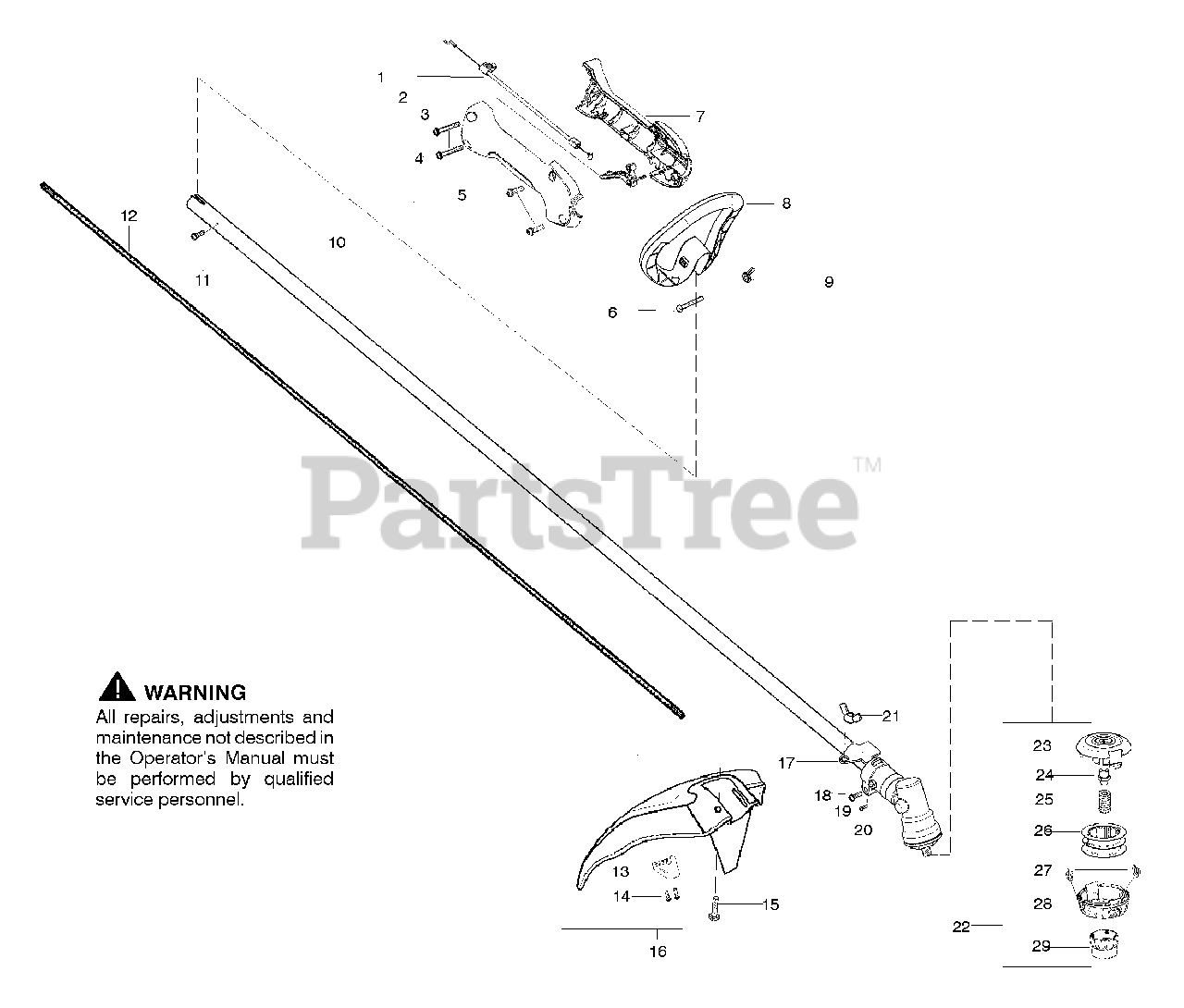

MX 557 - Weed Eater String Trimmer Handle & Shaft Assembly Parts Diagram

String Trimmer

Handle & Shaft Assembly Parts Diagram

  • Title

1

Poulan 530057566

Assy-Throttle Cable

$

$

Not available

2

Poulan 530058000

Trigger

$6.49

$

In Stock, Qty 20+

0

3

Poulan 530058751

Throttle Hsg. (Right)

$

$

Not available

4

Poulan 530016406

Screw

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

6

Poulan 530015786

Bolt-Handle

$4.99

$

In Stock, only 4 left!

0

7

Poulan 530058750

Throttle Hsg. (Left)

$

$

Not available

8

Poulan 530058753

Assy-Handle

Note: (Incl. 6,9)

$

$

Not available

9

Poulan 530016152

Wingnut-Handle
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

10

Poulan 530071780

Assy-Drive Shaft Hsg.

$32.99

$

Usually ships in 3-10 days

0

11

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

12

Poulan 530096169

Shaft-Flex

$21.99

$

Usually ships in 3-10 days

0

13

Poulan 530052285

Line Limiter

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

15

Poulan 530015820

Bolt-Shield

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 530071823

Kit-Shield Assy

Note: (Incl.13,14)

$

$

Not available

17

Poulan 530057554

Bracket-Shield

$6.49

$

In Stock, Qty 11

0

18

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

19

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

20

Poulan 530096099

Assy-Gearbox

$53.99

$

In Stock, only 1 left!

0

21

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

22

Poulan 537419202

Assy-TNG 7 Head
(Superseded to 596585805)

Note: (Incl. 23,24,25,26,27,28,29)

$31.99

$

In Stock, Qty 5

0

23

Poulan 537419302

Housing

$15.99

$

In Stock, only 2 left!

0

24

Poulan 537419801

Adapter

$8.99

$

In Stock, only 1 left!

0

25

Poulan 537338801

Spring

$6.49

$

In Stock, Qty 8

0

26

Poulan 952711631

Accy-Wound Spool

$10.99

$

In Stock, only 2 left!

0

27

Poulan 537419701

Eyelet
(Superseded to 545003365)

$12.99

$

In Stock, Qty 5

0

28

Poulan 537419401

Cover
(Superseded to 545003365)

$12.99

$

In Stock, Qty 5

0

29

Poulan 537419601

Knob

$6.49

$

In Stock, Qty 20+

0

Poulan 545137271

Operator Manual

Note: Not Shown

$

$

Not available

Poulan 530055350

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
