MX 675 RMD 22 H (866087-00) - Murray 22" Walk-Behind Mower (2015) Handles Group (866087) Parts Diagram

22" Walk-Behind Mower

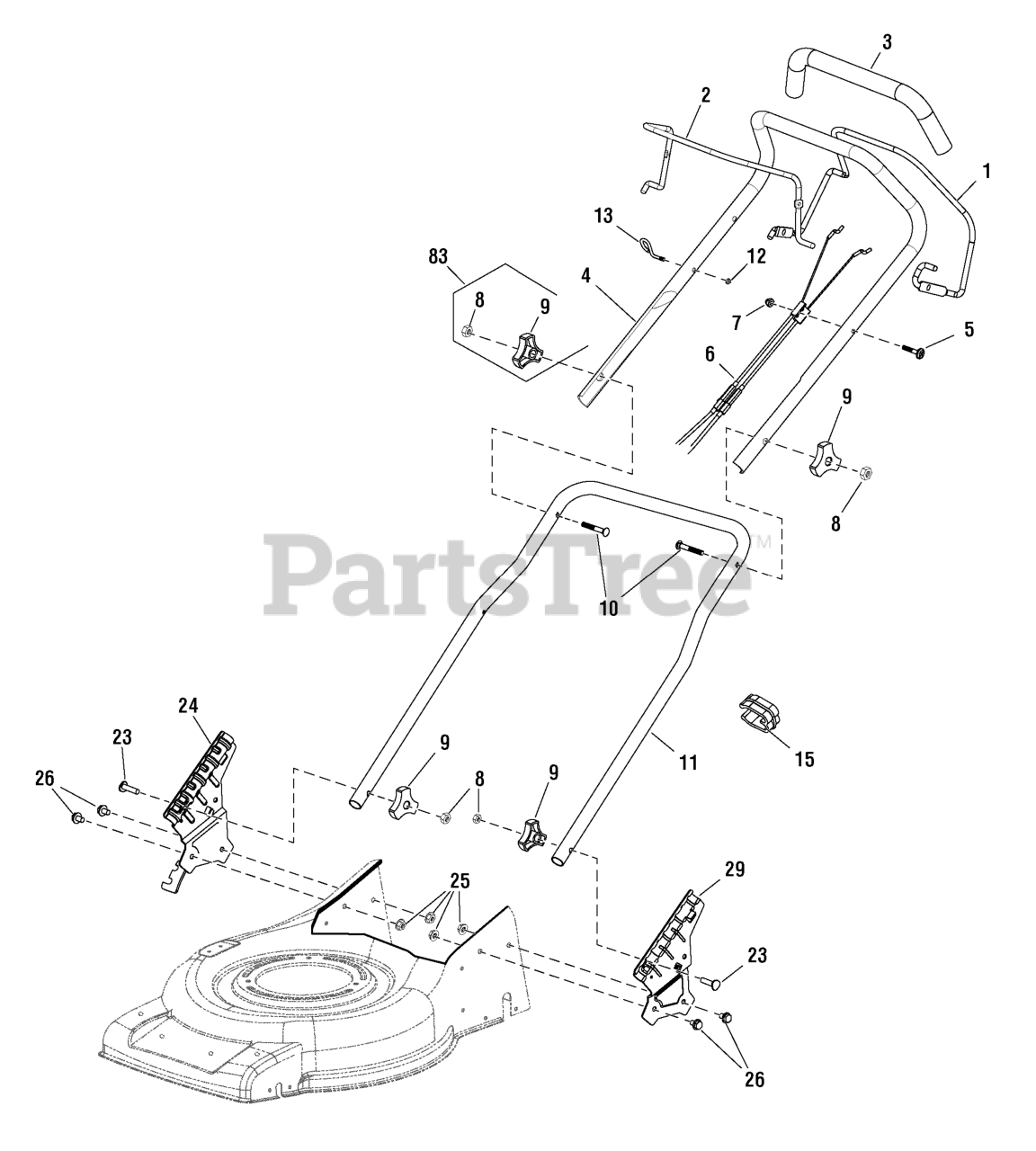

Handles Group (866087) Parts Diagram

  • Title

1

Murray 707341

BAIL, Drive

$

$

Currently unavailable

2

Murray 707259

BAIL, Engine

$

$

Currently unavailable

3

Murray 707258

GRIP

$

$

Currently unavailable

4

Murray 707738

HANDLE, Upper

$

$

Currently unavailable

5

Murray 707262

BOLT, M6 x 35

$

$

Currently unavailable

6

Murray 707780

CABLE, Brake

$

$

Currently unavailable

7

Murray 707217

NUT, Acorn, M6

$3.49

$

In Stock, only 1 left!

0

8

Murray 707205

NUT, M8

$3.49

$

Usually ships in 2-12 days

0

9

Murray 707212

KNOB

$4.99

$

Usually ships in 2-12 days

0

10

Murray 707323

BOLT, Carriage, M8 x 45

$3.49

$

In Stock, only 1 left!

0

11

Murray 707264

HANDLE, Lower

$

$

Currently unavailable

12

Murray 707196

NUT, M6

$3.49

$

In Stock, only 1 left!

0

13

Murray 707218

ROPE GUIDE

$3.99

$

In Stock, only 2 left!

0

15

Murray 707265

CLIP, Cable

$2.99

$

Usually ships in 2-12 days

0

23

Murray 707272

BOLT, Arc Head

$3.99

$

Usually ships in 2-12 days

0

24

Murray 707344

BRACKET, Handle, Right

$

$

Currently unavailable

25

Murray 707274

NUT, Hex, M8

$2.99

$

Usually ships in 2-12 days

0

26

Murray 707227

BOLT, Hex Flange, M8 x 16

$2.99

$

Usually ships in 2-12 days

0

29

Murray 707273

BRACKET, Handle, Left

$23.99

$

Usually ships in 2-12 days

0

83

Murray 707419

KIT, Hardware, Knob

Note: (Includes Ref. Nos. 8 & 9)

$4.99

$

Usually ships in 2-12 days

0
