MXH 650 (881031) - Murray 19" Walk-Behind Mower, Canada (2010) Drive Group Parts Diagram

19" Walk-Behind Mower, Canada

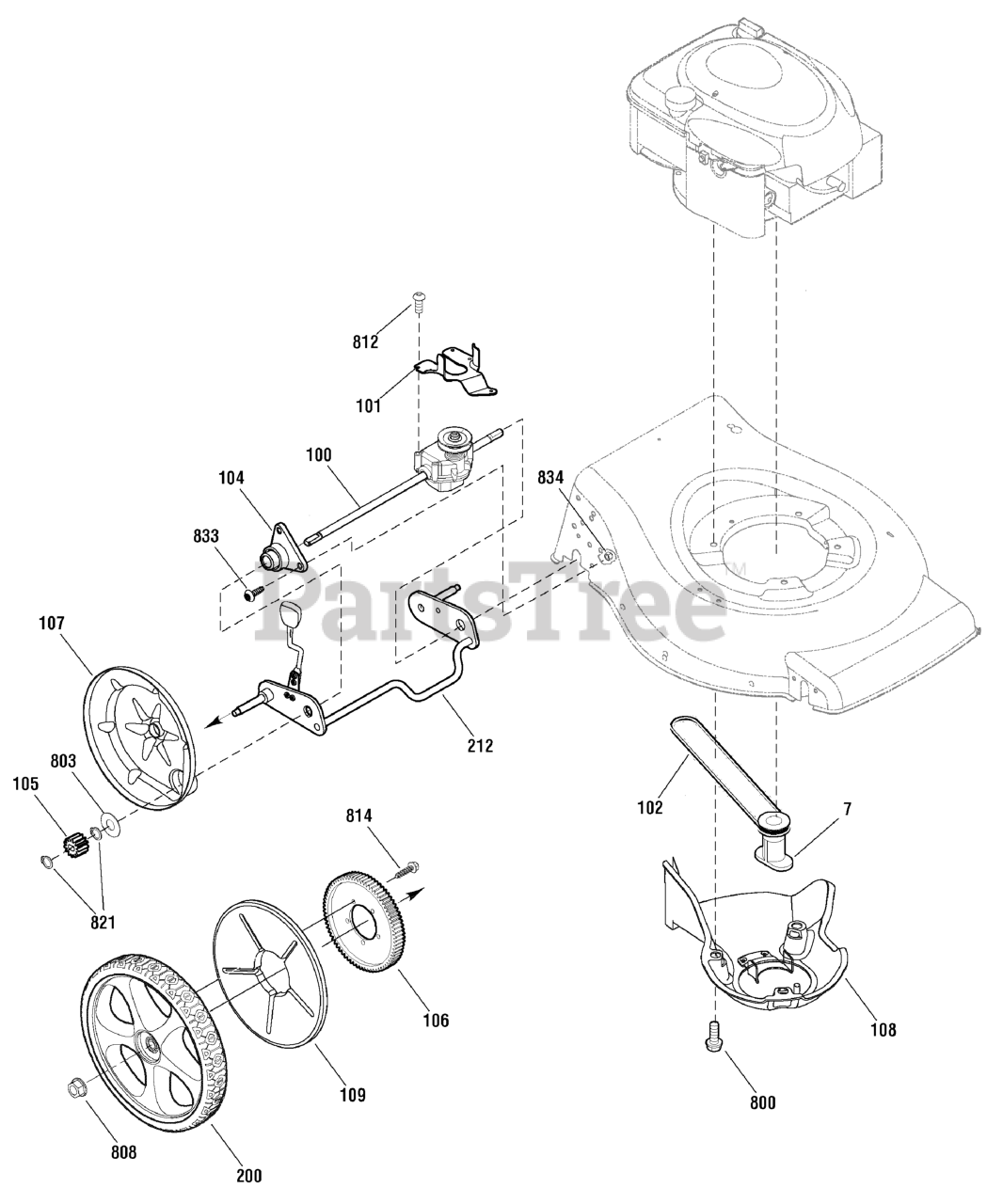

Drive Group Parts Diagram

  • Title

7

Murray 880567YP

BLADE ADAPTER ASSEMBLY

$31.99

$

In Stock, only 1 left!

0

100

Murray 880604YP

TRANSMISSION

$148.99

$

Usually ships in 2-12 days

0

101

Murray 880282YP

BELT GUIDE, Transmission

$12.99

$

Usually ships in 2-12 days

0

102

Murray 880268YP

V-BELT

$26.99

$

Usually ships in 2-12 days

0

104

Murray 880787YP

SLEEVE ASSEMBLY, Rear Axle

$17.99

$

Usually ships in 2-12 days

0

105

Murray 880527YP

GEAR, Pinion

$8.49

$

Usually ships in 2-12 days

0

106

Murray 880526YP

GEAR, Drive

$15.99

$

Usually ships in 2-12 days

0

107

Murray 880528YP

DUST COVER

$18.99

$

Usually ships in 2-12 days

0

108

Murray 880796YP

BELT COVER ASSEMBLY

$22.99

$

Usually ships in 2-12 days

0

109

Murray 880539YP

COVER, Wheel

$19.99

$

Usually ships in 2-12 days

0

200

Murray 880695YP

WHEEL, Rear

$47.99

$

Usually ships in 2-12 days

0

212

Murray 880854YP

CROSSBAR ASSEMBLY, Rear

$75.99

$

Usually ships in 2-12 days

0

800

Murray 0025X6MA

SCREW, Hex Head, 3/8-16 x 1

$5.49

$

Usually ships in 2-12 days

0

803

Murray 880324YP

WASHER, Thrust

$3.49

$

Usually ships in 2-12 days

0

808

Murray 015X84MA

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

812

Murray 880760YP

SCREW, #10 x 1

$4.49

$

Usually ships in 2-12 days

0

814

Murray 26X296MA

SCREW, 1/4-15 x 3/4

$4.49

$

In Stock, only 1 left!

0

821

Murray 880269YP

RING, External Retaining

$3.99

$

Usually ships in 2-12 days

0

833

Murray 880845YP

SCREW, Torx, 1/4-20 x 5/8

$3.49

$

Usually ships in 2-12 days

0

834

Murray 880859YP

NUT, Flange Lock, 1/4-20

$3.99

$

Usually ships in 2-12 days

0
