MXMU 1967 5E (881560) - Murray 19" Walk-Behind Mower, Canada (2012) Deck Group (881335) Parts Diagram

19" Walk-Behind Mower, Canada

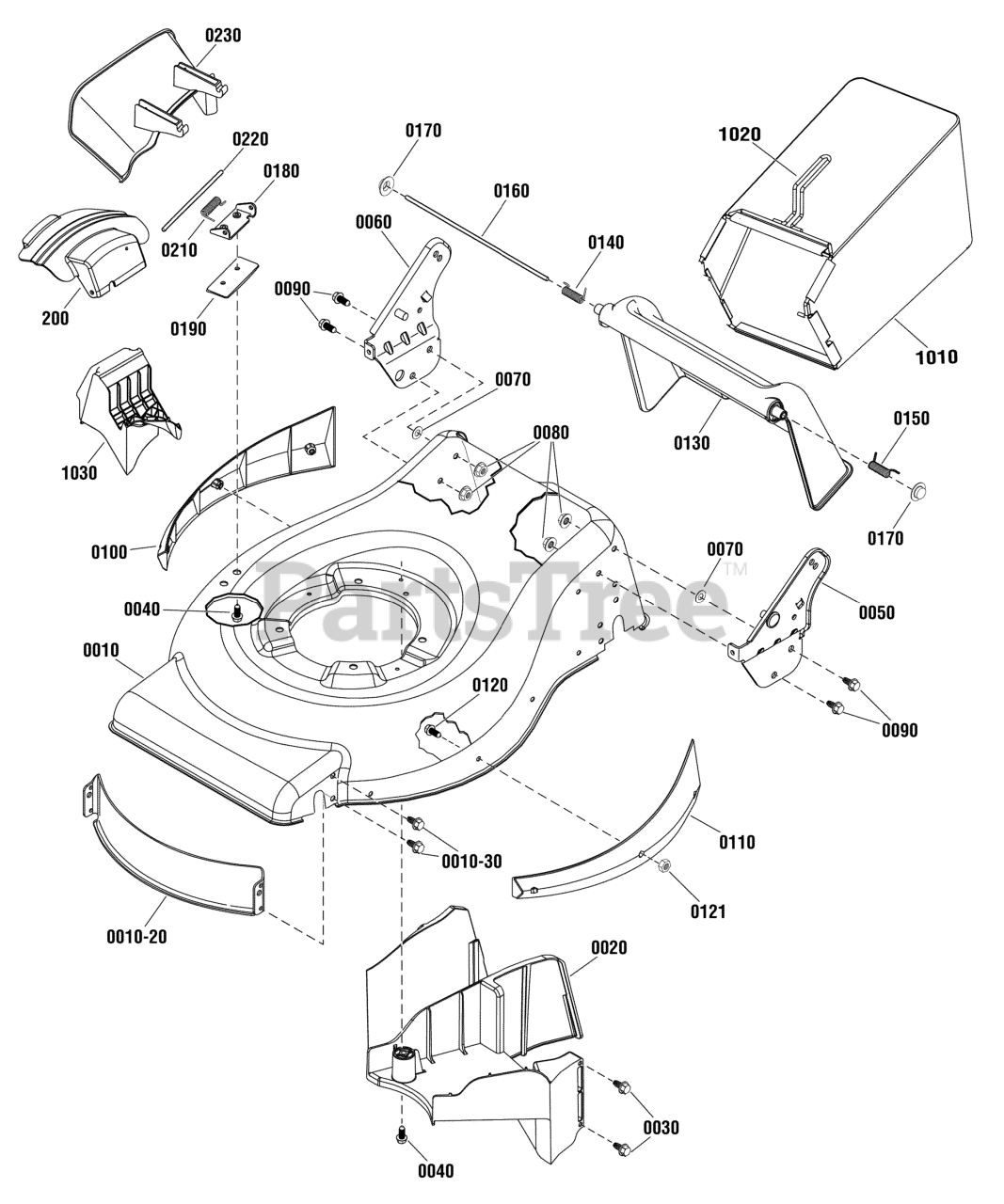

Deck Group (881335) Parts Diagram

  • Title

0010

Murray 881118BIYP

MOWER HOUSING, Rear/ Side Discharge

$205.99

$

Usually ships in 2-12 days

0

0010-20

Murray 880784YP

BAFFLE, Front, 19"
(Superseded to 880784BMYP)

$46.99

$

Usually ships in 2-12 days

0

0010-30

Murray 880664YP

SCREW, Pan Head, Taptite, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0020

Murray 880785YP

BAFFLE, Rear

$64.99

$

Usually ships in 2-12 days

0

0030

Murray 880804YP

SCREW, Hi-Lo, 1/4 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0040

Murray 880664YP

SCREW, Pan Head, Taptite, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0050

Murray 880951AYP

BRACKET, Handle, LH

$20.99

$

Usually ships in 2-12 days

0

0060

Murray 880950AYP

BRACKET, Handle, RH

$20.99

$

Usually ships in 2-12 days

0

0070

Murray 880607YP

WASHER, Flat, .34 ID x .69 OD

$3.99

$

Usually ships in 2-12 days

0

0080

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 19

0

0090

Murray 880748YP

SCREW, Hex Washer, 5/16-18 x 1/2

$3.99

$

Usually ships in 2-12 days

0

0100

Murray 881112YP

GUARD, Side, RH

$11.99

$

Usually ships in 2-12 days

0

0110

Murray 881109YP

GUARD, Side, LH

$14.99

$

Usually ships in 2-12 days

0

0120

Murray 880339YP

SCREW, Torx Head, M5 x .8 x 14mm

$3.99

$

In Stock, only 4 left!

0

0121

Murray 880428YP

NUT, Nylock, M5 X 0.8

$3.99

$

Usually ships in 2-12 days

0

0130

Murray 880671YP

DOOR, Rear

$44.99

$

Usually ships in 2-12 days

0

0140

Murray 880942YP

SPRING, Torsion, RH

$4.49

$

Usually ships in 2-12 days

0

0150

Murray 880943YP

SPRING, Torsion, LH

$4.49

$

Usually ships in 2-12 days

0

0160

Murray 880214YP

ROD, Rear Door

$11.99

$

Usually ships in 2-12 days

0

0170

Murray 7091020YP

NUT, Push, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 16

0

0180

Murray 880584YP

BRACKET, Mulch Cover

$16.99

$

Usually ships in 2-12 days

0

0190

Murray 880583YP

SPACER, Mulch Cover

$3.99

$

Usually ships in 2-12 days

0

0200

Murray 880580YP

MULCH COVER

$25.99

$

Usually ships in 2-12 days

0

0210

Murray 880582YP

SPRING, Torsion, Mulch Cover

$7.49

$

Usually ships in 2-12 days

0

0220

Murray 880581YP

ROD, Mulch Cover

$13.99

$

In Stock, only 2 left!

0

0230

Murray 880579YP

DEFLECTOR, Chute

$40.99

$

Usually ships in 2-12 days

0

1010

Murray 880965YP

BAG, 70L

$

$

Not available

1020

Murray 880963ZYP

FRAME, 70L

$77.99

$

In Stock, only 1 left!

0

1030

Murray 880909YP

MULCH PLUG

$45.99

$

Usually ships in 2-12 days

0
