MXTH 675 (881243) - Murray 19" Walk-Behind Mower, Canada (2011) Deck & Engine Group (881243dk) Parts Diagram

19" Walk-Behind Mower, Canada

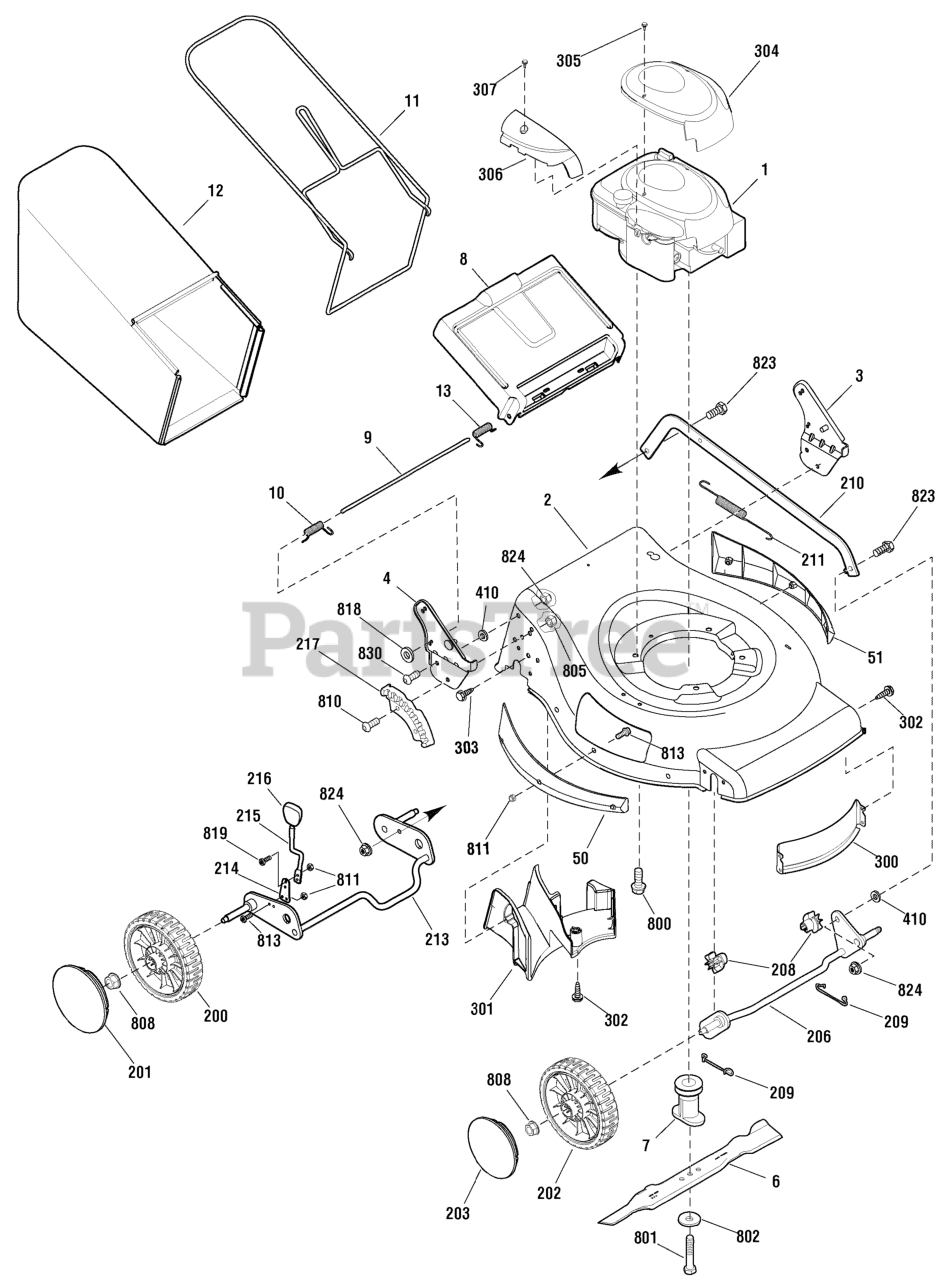

Deck & Engine Group (881243dk) Parts Diagram

  • Title

1

Murray 12T020-0276-B1

* ENGINE, 6.75GT Briggs & Stratton

Note: (Engine Model: 126T02-0276-B1)

$

$

Currently unavailable

2

* MOWER HOUSING

Note: (Includes Ref. Nos. 300 & 302)

$

$

Not available

3

Murray 880951AYP

BRACKET ASSEMBLY, Left Handle

$20.99

$

Usually ships in 2-12 days

0

4

Murray 880950AYP

BRACKET ASSEMBLY, Right Handle

$20.99

$

Usually ships in 2-12 days

0

6

Murray 880638YP

BLADE, 19"
(Superseded to 880638BZYP)

$26.99

$

Usually ships in 2-12 days

0

7

Murray 880567YP

BLADE ADAPTER ASSEMBLY

$31.99

$

In Stock, only 1 left!

0

8

Murray 880671YP

DOOR, Rear

$42.99

$

Usually ships in 2-12 days

0

9

Murray 880214YP

ROD, Rear Door

$10.99

$

Usually ships in 2-12 days

0

10

Murray 880942YP

SPRING, Torsion Rear Door, Right

$4.49

$

Usually ships in 2-12 days

0

11

Murray 880963ZYP

FRAME ASSEMBLY

$72.99

$

In Stock, only 1 left!

0

12

Murray 880965YP

BAG ASSEMBLY

$67.99

$

Usually ships in 2-12 days

0

13

Murray 880943YP

SPRING, Torsion Rear Door, Right

$4.49

$

Usually ships in 2-12 days

0

50

Murray 881112YP

SIDE GUARD, Right

$10.99

$

Usually ships in 2-12 days

0

51

Murray 881109YP

SIDE GUARD, Left

$14.99

$

Usually ships in 2-12 days

0

200

Murray 880194YP

WHEEL, Rear, Complete

Note: (Includes Bearing)

$

$

Not available

201

Murray 880699YP

HUBCAP, Rear

$13.99

$

Usually ships in 2-12 days

0

202

Murray 880703YP

WHEEL, Front

$36.99

$

Usually ships in 2-12 days

0

203

Murray 880698YP

HUBCAP, Front

$9.49

$

Usually ships in 2-12 days

0

206

Murray 880053YP

CROSSBAR ASSEMBLY, Front

$48.99

$

Usually ships in 2-12 days

0

208

Murray 880050YP

BUSHING, Front Crossbar

$4.99

$

Usually ships in 2-12 days

0

209

Murray 881163YP

SPRING, Clip Crossbar

$8.99

$

In Stock, Qty 7

0

210

Murray 880791BJYP

LINK, Single Lever, High Wheel

$41.99

$

Usually ships in 2-12 days

0

211

Murray 880052YP

SPRING, Extension

$6.99

$

Usually ships in 2-12 days

0

213

Murray 880829YP

REAR CROSSBAR

$94.99

$

Usually ships in 2-12 days

0

214

Murray 880642YP

SPRING, Adjuster

$5.99

$

In Stock, only 2 left!

0

215

Murray 880540YP

LEVER, Height Adjustment

$7.99

$

In Stock, only 2 left!

0

216

Murray 881059YP

KNOB, Adjuster

$5.49

$

In Stock, only 2 left!

0

217

Murray 880960YP

BRACKET, Height Adjuster

$16.99

$

Usually ships in 2-12 days

0

300

Murray 880784BIYP

BAFFLE, Front

$47.99

$

Usually ships in 2-12 days

0

301

Murray 880785YP

BAFFLE, Rear

$64.99

$

Usually ships in 2-12 days

0

302

Murray 880664YP

SCREW, Pan Head, Taptite, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

303

Murray 880804YP

SCREW, Pan Head, Taptite, 1/4-15 x 5/8

$3.99

$

Usually ships in 2-12 days

0

304

Murray 791511YP

COVER, Static

$32.99

$

Usually ships in 2-12 days

0

305

Murray 691138

SCREW, Hex Washer Head

$3.99

$

In Stock, Qty 12

0

306

Murray 792418

COVER, Control
(Superseded to 591706)

$69.99

$

In Stock, only 3 left!

0

307

Murray 698589

SCREW, Pan Head

$3.99

$

In Stock, only 3 left!

0

410

Murray 880607YP

WASHER, Flat, .34

$3.99

$

Usually ships in 2-12 days

0

800

Murray 7090324SM

SCREW, Hex Head, 3/8-16 x 1
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

801

Murray 880034YP

BOLT, Blade, 3/8-24 x 2

$4.49

$

Usually ships in 2-12 days

0

802

Murray 1101989MA

WASHER, Belleville

$5.49

$

Usually ships in 2-12 days

0

805

Murray 880020YP

NUT, Nylock, M8 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

808

Murray 015X84MA

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

810

Murray 880323YP

BOLT, Hex Key Head

$3.99

$

In Stock, only 4 left!

0

811

Murray 880428YP

NUT, Nylock

$3.99

$

Usually ships in 2-12 days

0

813

Murray 880339YP

SCREW, Torx Head, M5 x .8 x 14mm

$3.99

$

In Stock, only 4 left!

0

818

Murray 7091020YP

PUSHNUT, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

819

Murray 880577YP

SCREW, Torx Head, M5 x .8 x 12.5mm

$3.99

$

In Stock, only 4 left!

0

823

Murray 880651YP

BOLT, Shoulder, 5/16-18 x 1

$3.99

$

Usually ships in 2-12 days

0

824

Murray 015X88MA

Nut, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

830

Murray 48901MA

CAPSCREW, 5/16-18 x 3/4

$3.99

$

Usually ships in 2-12 days

0

1000

Murray 881412YP

DECAL KIT

$23.99

$

Usually ships in 2-12 days

0
