MXTH 675 (881243) - Murray 19" Walk-Behind Mower, Canada (2011) Drive Group (881243dr) Parts Diagram

19" Walk-Behind Mower, Canada

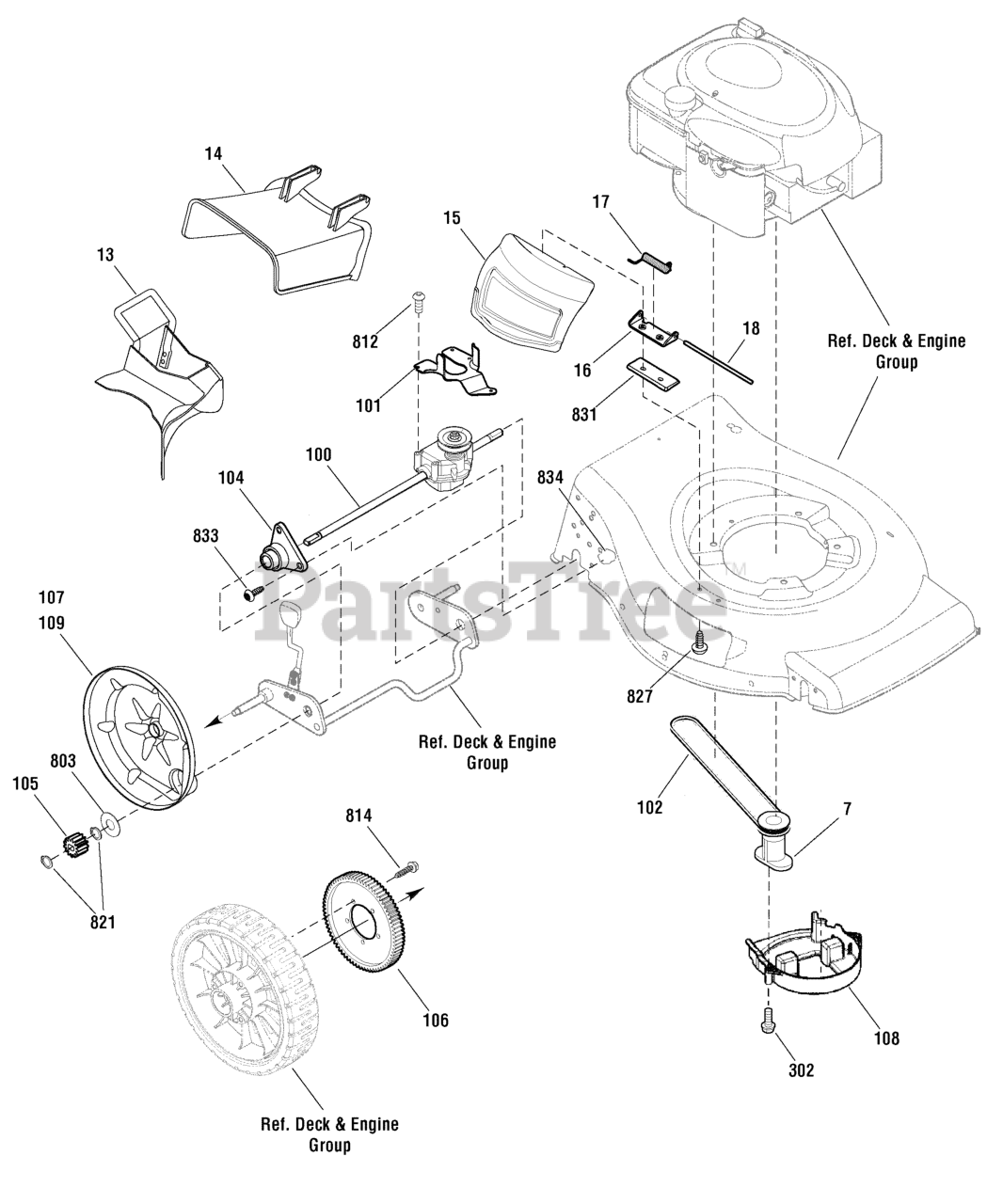

Drive Group (881243dr) Parts Diagram

  • Title

7

Murray 880567YP

BLADE ADAPTER ASSEMBLY

$31.99

$

In Stock, only 1 left!

0

13

Murray 880909YP

MULCH PLUG

$43.99

$

Usually ships in 2-12 days

0

14

Murray 880579YP

CHUTE DEFLECTOR

$39.99

$

In Stock, only 1 left!

0

15

Murray 880580YP

MULCH COVER

$24.99

$

Usually ships in 2-12 days

0

16

Murray 880584YP

BRACKET, Chute Deflector

$16.99

$

Usually ships in 2-12 days

0

17

Murray 880582YP

SPRING, Chute Deflector

$6.99

$

Usually ships in 2-12 days

0

18

Murray 880581YP

ROD, Chute Deflector

$13.99

$

In Stock, only 2 left!

0

100

Murray 880341YP

TRANSMISSION

$119.99

$

Usually ships in 2-12 days

0

101

Murray 880282YP

BELT GUIDE, Transmission

$12.99

$

Usually ships in 2-12 days

0

102

Murray 880268YP

V-BELT

$26.99

$

Usually ships in 2-12 days

0

104

Murray 880787YP

SLEEVE ASSEMBLY, Rear Axle

$17.99

$

Usually ships in 2-12 days

0

105

Murray 880226YP

GEAR, Pinion

$7.99

$

Usually ships in 2-12 days

0

106

Murray 880225YP

GEAR, Drive

$7.49

$

Usually ships in 2-12 days

0

107

Murray 880230YP

DUST COVER, RH

$9.49

$

Usually ships in 2-12 days

0

108

Murray 880796YP

BELT GUIDE

$22.99

$

Usually ships in 2-12 days

0

109

Murray 880640YP

DUST COVER, LH

$22.99

$

In Stock, only 1 left!

0

302

Murray 880664YP

SCREW, Pan Head, Taptite, 1/4-15 x 5/8

$3.99

$

Usually ships in 2-12 days

0

803

Murray 880324YP

WASHER, Thrust

$3.49

$

Usually ships in 2-12 days

0

812

Murray 880760YP

SCREW, #10 x 1

$4.49

$

Usually ships in 2-12 days

0

814

Murray 26X296MA

SCREW, 1/4-15 x 3/4

$4.49

$

In Stock, only 1 left!

0

821

Murray 880269YP

RING, External Retaining

$3.99

$

Usually ships in 2-12 days

0

827

Murray 880664YP

SCREW, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

831

Murray 880583YP

SPACER

$3.99

$

Usually ships in 2-12 days

0

833

Murray 880845YP

SCREW, Torx, 1/4-20 x 5/8

$3.49

$

Usually ships in 2-12 days

0

834

Murray 880859YP

NUT, Flange Lock, 1/4-20

$3.99

$

Usually ships in 2-12 days

0
