MXU 16550 E (881559) - Murray 16" Walk-Behind Mower, Canada (2012) Deck Group (881327) Parts Diagram

16" Walk-Behind Mower, Canada

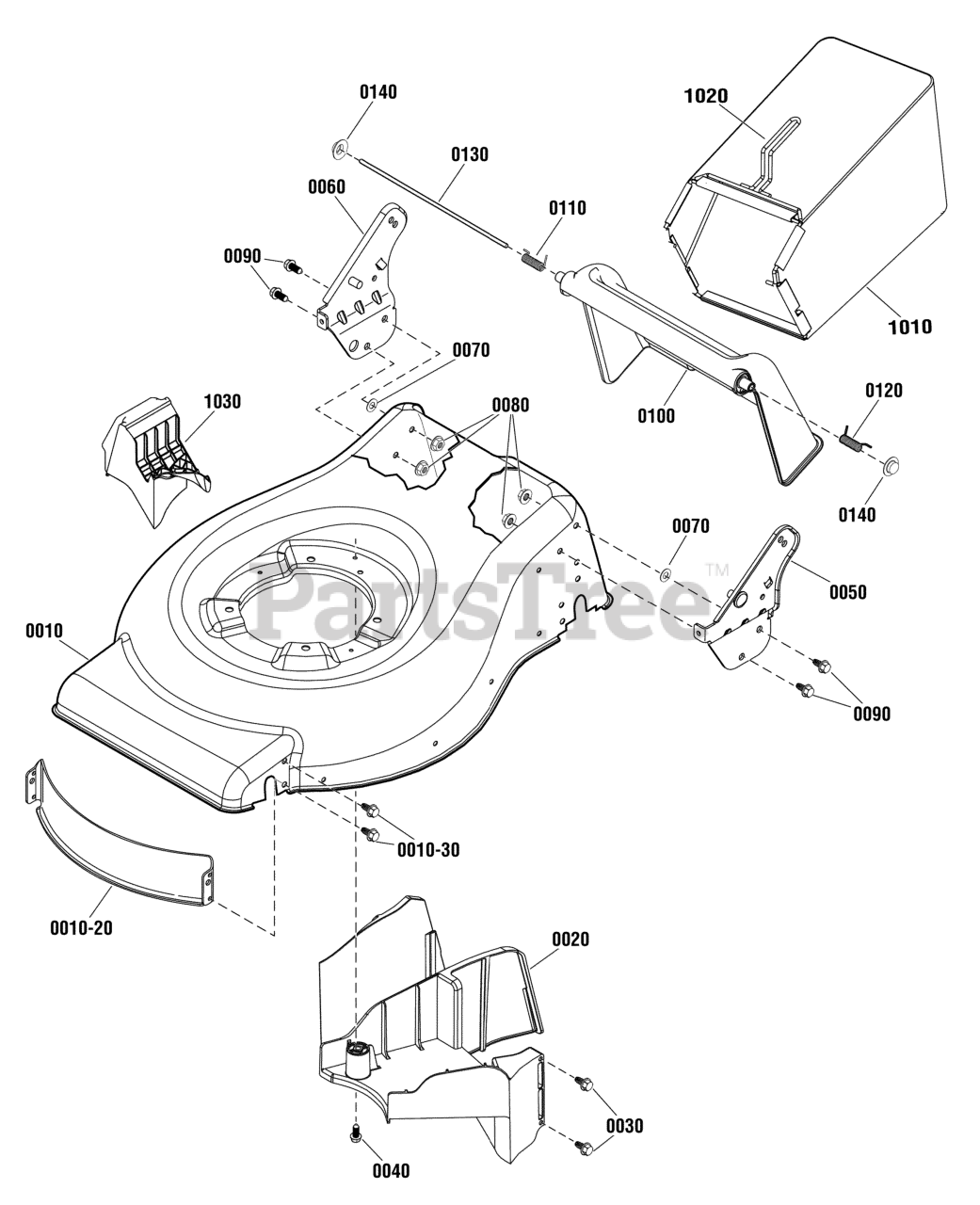

Deck Group (881327) Parts Diagram

  • Title

0010

Murray 881120BJYP

MOWER HOUSING
(Superseded to 881120BIYP)

Note: (Includes Ref. Nos. 0010-20 & 0010-30)

$247.99

$

Usually ships in 2-12 days

0

0010-20

Murray 880794BIYP

BAFFLE, Front, 16"

$34.99

$

Usually ships in 2-12 days

0

0010-30

Murray 880664YP

SCREW, Pan Head, Taptite, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0020

Murray 880793YP

BAFFLE, Rear

$43.99

$

Usually ships in 2-12 days

0

0030

Murray 880804YP

SCREW, Hi-Lo, 1/4 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0040

Murray 880664YP

SCREW, Pan Head, Taptite, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0050

Murray 880951AYP

BRACKET, Handle, LH

$20.99

$

Usually ships in 2-12 days

0

0060

Murray 880950AYP

BRACKET, Handle, RH

$20.99

$

Usually ships in 2-12 days

0

0070

Murray 880607YP

WASHER, Flat, .34 ID x .69 OD

$3.99

$

Usually ships in 2-12 days

0

0080

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0090

Murray 880748YP

SCREW, Hex Washer, 5/16-18 x 1/2

$3.99

$

Usually ships in 2-12 days

0

0100

Murray 880661YP

DOOR, Rear

$32.99

$

Usually ships in 2-12 days

0

0110

Murray 880942YP

SPRING, Torsion, RH

$4.49

$

Usually ships in 2-12 days

0

0120

Murray 880943YP

SPRING, Torsion, LH

$4.49

$

Usually ships in 2-12 days

0

0130

Murray 880213YP

ROD, Rear Door

$4.99

$

Usually ships in 2-12 days

0

0140

Murray 7091020YP

NUT, Push, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

1010

Murray 880947YP

BAG

$71.99

$

Usually ships in 2-12 days

0

1020

Murray 880944ZYP

FRAME

$82.99

$

Usually ships in 2-12 days

0

1030

Murray 880914YP

MULCH PLUG

$53.99

$

Usually ships in 2-12 days

0
