MXUA 21675 EX (881637) - Murray 21" Walk-Behind Mower (2012) Handle Assembly Parts Diagram

21" Walk-Behind Mower

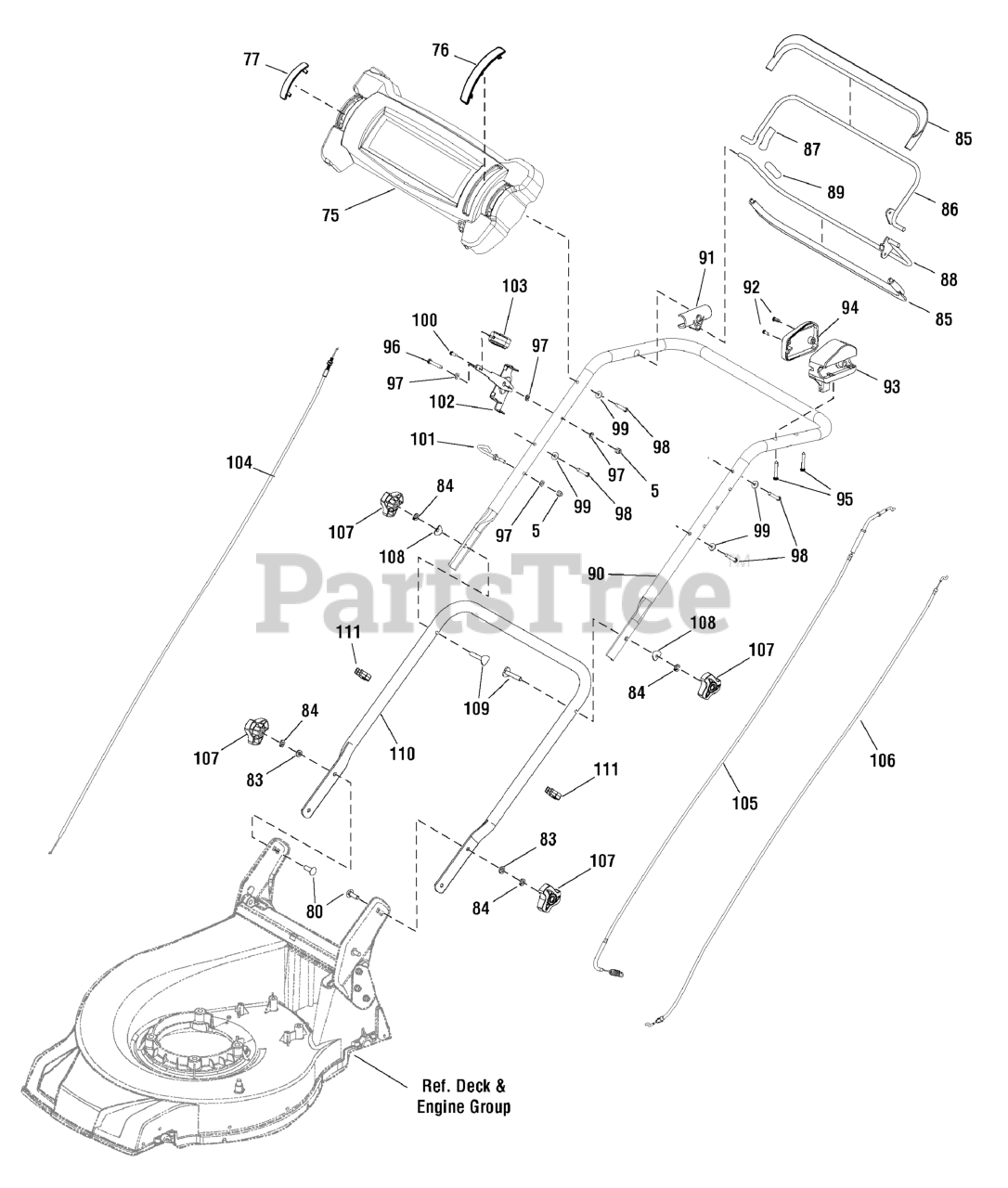

Handle Assembly Parts Diagram

  • Title

5

Murray 701183YP

NUT, Hex, Nylon Insert, Torque Type

$3.49

$

Usually ships in 2-12 days

0

75

Murray 701279YP

PANEL, Handle Cover

Note: (Used on 19" Decks)

$90.99

$

Usually ships in 2-12 days

0

75

Murray 701317YP

PANEL, Handle Cover

Note: (Used on 21" Decks)

$119.99

$

Usually ships in 2-12 days

0

76

Murray 701280YP

INSERT, Throttle Cover

$3.49

$

Usually ships in 2-12 days

0

77

Murray 701281YP

INSERT, Throttle Cover

$3.49

$

Usually ships in 2-12 days

0

80

Murray 701319YP

BOLT, Carriage,

$3.99

$

Usually ships in 2-12 days

0

83

Murray 701230YP

WASHER, Flat, C Class

$3.49

$

Usually ships in 2-12 days

0

84

Murray 701231YP

WASHER, Spring

$3.49

$

Usually ships in 2-12 days

0

85

Murray 701284YP

COVER, Handle

Note: (Used on 19" Decks)

$13.99

$

Usually ships in 2-12 days

0

85

Murray 701321YP

COVER, Handle

Note: (Used on 21" Decks)

$13.99

$

Usually ships in 2-12 days

0

86

Murray 701232YP

LEVER, Brake

Note: (Used on 19" Decks)

$17.99

$

Usually ships in 2-12 days

0

86

Murray 701322YP

LEVER, Brake

Note: (Used on 21" Decks)

$20.99

$

Usually ships in 2-12 days

0

87

Murray 701233YP

COVER, Brake Lever

$3.99

$

Usually ships in 2-12 days

0

88

Murray 701234YP

LEVER, Clutch

Note: (Used on 19" Decks)

$24.99

$

Usually ships in 2-12 days

0

88

Murray 701323YP

LEVER, Clutch

Note: (Used on 21" Decks)

$20.99

$

Usually ships in 2-12 days

0

89

Murray 701235YP

COVER, Clutch Lever

$3.99

$

Usually ships in 2-12 days

0

90

Murray 701236YP

HANDLE, Upper

Note: (Used on 19" Decks)

$88.99

$

Usually ships in 2-12 days

0

90

Murray 701324YP

HANDLE, Upper

Note: (Used on 21" Decks)

$81.99

$

Usually ships in 2-12 days

0

91

Murray 701285YP

HINGE

$5.99

$

Usually ships in 2-12 days

0

92

Murray 701237YP

SCREW, Pan Head, Cross Recessed Tapping

$2.99

$

Usually ships in 2-12 days

0

93

Murray 701369YP

CABLE BOX, Control Lever

$24.99

$

Usually ships in 2-12 days

0

94

Murray 701286YP

COVER, Cable Box

$9.49

$

Usually ships in 2-12 days

0

95

Murray 701238YP

SCREW, Pan Head, Cross Recessed Tapping

$3.49

$

Usually ships in 2-12 days

0

96

Murray 701239YP

SCREW, Pan Head, Cross Recessed, H-Form

$3.99

$

Usually ships in 2-12 days

0

97

Murray 701240YP

WASHER, Flat, C Class

$3.49

$

Usually ships in 2-12 days

0

98

Murray 701241YP

SCREW, Pan Head, Cross Recessed Tapping

$2.99

$

Usually ships in 2-12 days

0

99

Murray 701242YP

WASHER, A-Form

$3.49

$

In Stock, only 1 left!

0

100

Murray 701243YP

SCREW, Pan Head, Cross Recessed Tapping

$3.99

$

Usually ships in 2-12 days

0

101

Murray 701244YP

HOOK, Start Rope

$4.99

$

Usually ships in 2-12 days

0

102

Murray 701325YP

FRAME, Throttle

$22.99

$

Usually ships in 2-12 days

0

103

Murray 701245YP

GRIP, Throttle

$9.99

$

Usually ships in 2-12 days

0

104

Murray 701246YP

CABLE, Throttle

$19.99

$

Usually ships in 2-12 days

0

105

Murray 701288YP

CABLE, Clutch

$52.99

$

Usually ships in 2-12 days

0

106

Murray 701247YP

CABLE, Brake

Note: (Used on 19" Decks)

$26.99

$

Usually ships in 2-12 days

0

106

Murray 701289YP

CABLE, Brake

Note: (Used on 21" Decks)

$22.99

$

Usually ships in 2-12 days

0

107

Murray 701248YP

KNOB, Lock

$6.99

$

Usually ships in 2-12 days

0

108

Murray 701249YP

WASHER, Curved

$4.49

$

Usually ships in 2-12 days

0

109

Murray 701250YP

BOLT, Connecting

$5.49

$

Usually ships in 2-12 days

0

110

Murray 701251YP

HANDLE, Lower

Note: (Used on 19" Decks)

$96.99

$

Usually ships in 2-12 days

0

110

Murray 701327YP

HANDLE, Lower

Note: (Used on 21" Decks)

$48.99

$

Usually ships in 2-12 days

0

111

Murray 701290YP

CLIP, Cable

$3.99

$

Usually ships in 2-12 days

0
