MZ 25 (965877201) - Husqvarna Zero-Turn Mower (2010-02) ENGINE PLATE Parts Diagram

Zero-Turn Mower

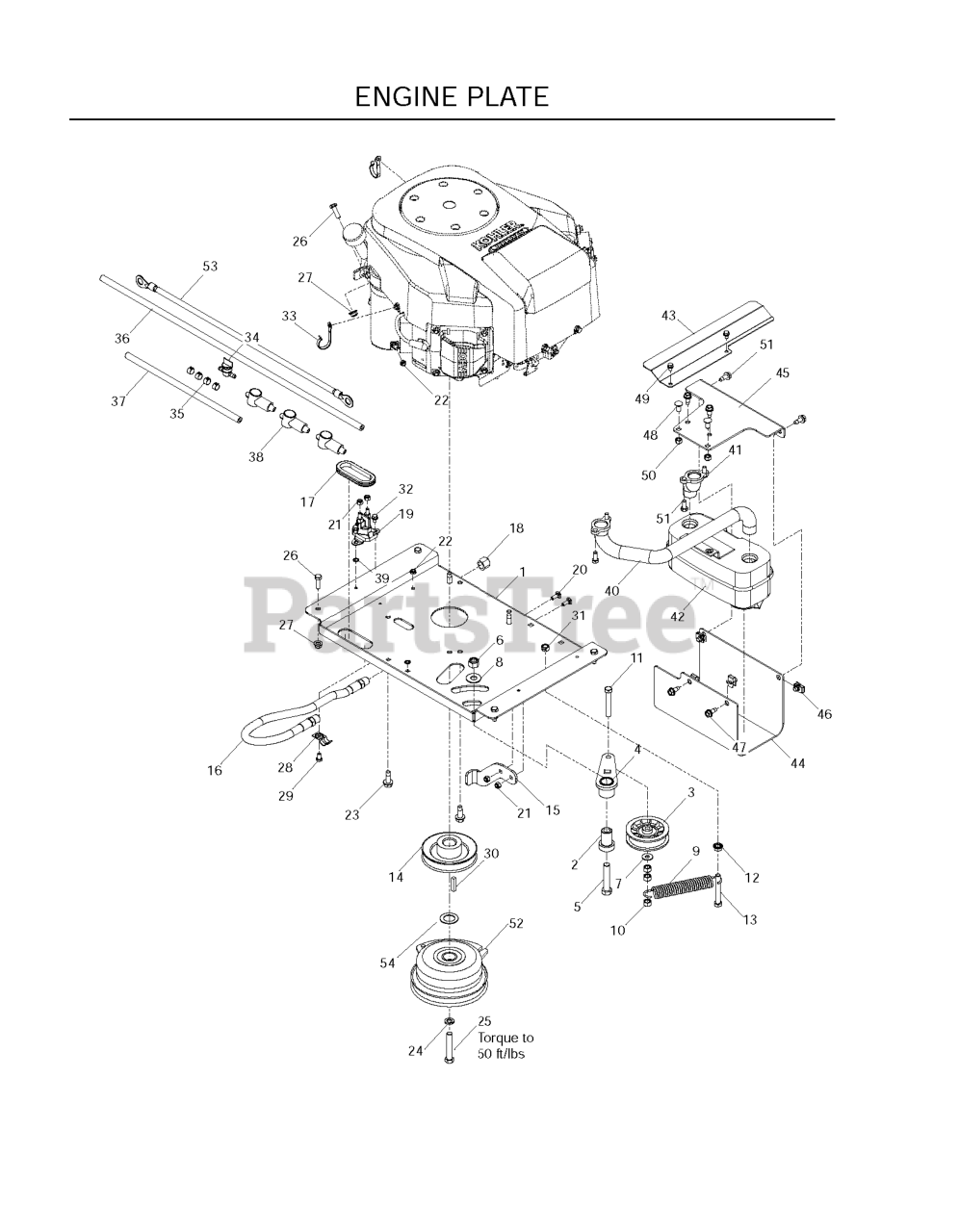

ENGINE PLATE Parts Diagram

  • Title

47

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$

$

Not available

26

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, Qty 19

0

48

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$2.49

$

In Stock, Qty 12

0

28

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

44

Husqvarna 539131769

GUARD, MUFFLER

$

$

Not available

16

Husqvarna 539131729

DRAIN, OIL

$

$

Not available

7

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990302

HWST 1/4C X 3/8
(Superseded to 596582701)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

38

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 8

0

54

Husqvarna 539115675

WASHER, 1.025 ID X 1.64
(Superseded to 596319801)

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

In Stock, only 4 left!

0

9

Husqvarna 539101977

SPRING

$14.99

$

In Stock, only 4 left!

0

12

Husqvarna 539990613

NUT 3/8C WHIZ
(Superseded to 596583501)

$3.99

$

In Stock, Qty 11

0

19

Husqvarna 539101714

SOLENOID

$33.99

$

In Stock, Qty 20+

0

36

Husqvarna 539105382

FUEL LINE 30"

$21.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

51

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 539131758

SHIELD, HEAT

$

$

Not available

40

Husqvarna 539131739

MANIFOLD, FT

$35.99

$

Usually ships in 3-10 days

0

Husqvarna 539107516

KOHLER PIGTAIL-CV490S

Note: NOT SHOWN

$

$

Not available

31

Husqvarna 539990546

NUT 3/8C CENTERBLOCK
(Superseded to 595305901)

$3.99

$

In Stock, Qty 20+

0

52

Husqvarna 539132732

CLUTCH, 125 FT/LB

$

$

Not available

1

Husqvarna 539131726

PLATE, ENGINE

$

$

Not available

4

Husqvarna 539112092

RP.IDLER ARM WELDMENT
(Superseded to 583593901)

$13.99

$

In Stock, Qty 20+

0

35

Husqvarna 539912222

HOSE CLAMP

$3.49

$

In Stock, only 2 left!

0

6

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539107098

CLAMP

$

$

Not available

2

Husqvarna 539101231

IDLER SPINDLE

$14.99

$

In Stock, Qty 19

0

53

Husqvarna 539132412

CABLE, POSITIVE

$

$

Not available

15

Husqvarna 539131728

TIE DOWN, CLUTCH

$

$

Not available

49

Husqvarna 539990302

HWST 1/4C X 3/8
(Superseded to 596582701)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539107210

GROMMET

$

$

Not available

22

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 596031501)

$2.49

$

In Stock, Qty 20+

0

39

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.49

$

In Stock, only 2 left!

0

11

Husqvarna 539110122

HCS 3/8-16 X 2-1/2 TPBLT

$

$

Not available

24

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

42

Husqvarna 539131604

MUFFLER ASM TWIN

$53.99

$

In Stock, Qty 20+

0

46

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 11

0

29

Husqvarna 539990071

HCS 1/4-20.
(Superseded to 596437001)

$3.99

$

In Stock, only 2 left!

0

27

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

8

Husqvarna 539990550

WASHER 1/2 FLAT
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 20+

0

45

Husqvarna 539131771

MOUNT MUFFLER BLACK

$

$

Not available

37

Husqvarna 539108212

FUEL LINE 13"

$2.49

$

In Stock, Qty 5

0

30

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$5.49

$

Usually ships in 3-10 days

0

34

Husqvarna 539916325

FUEL VALVE

$13.99

$

In Stock, only 2 left!

0

13

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, Qty 12

0

41

Husqvarna 539131740

MANIFOLD, RR

$

$

Not available

3

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$17.99

$

In Stock, Qty 20+

0

14

Husqvarna 539109639

PULLEY

$

$

Not available

25

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$7.49

$

In Stock, Qty 7

0

18

Husqvarna 539101364

DRAIN CAP

$

$

Not available

50

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0
