MZ 25 (968999780) - Husqvarna Zero-Turn Mower (2007-11) Mower Lift / Deck Lift Parts Diagram

Zero-Turn Mower

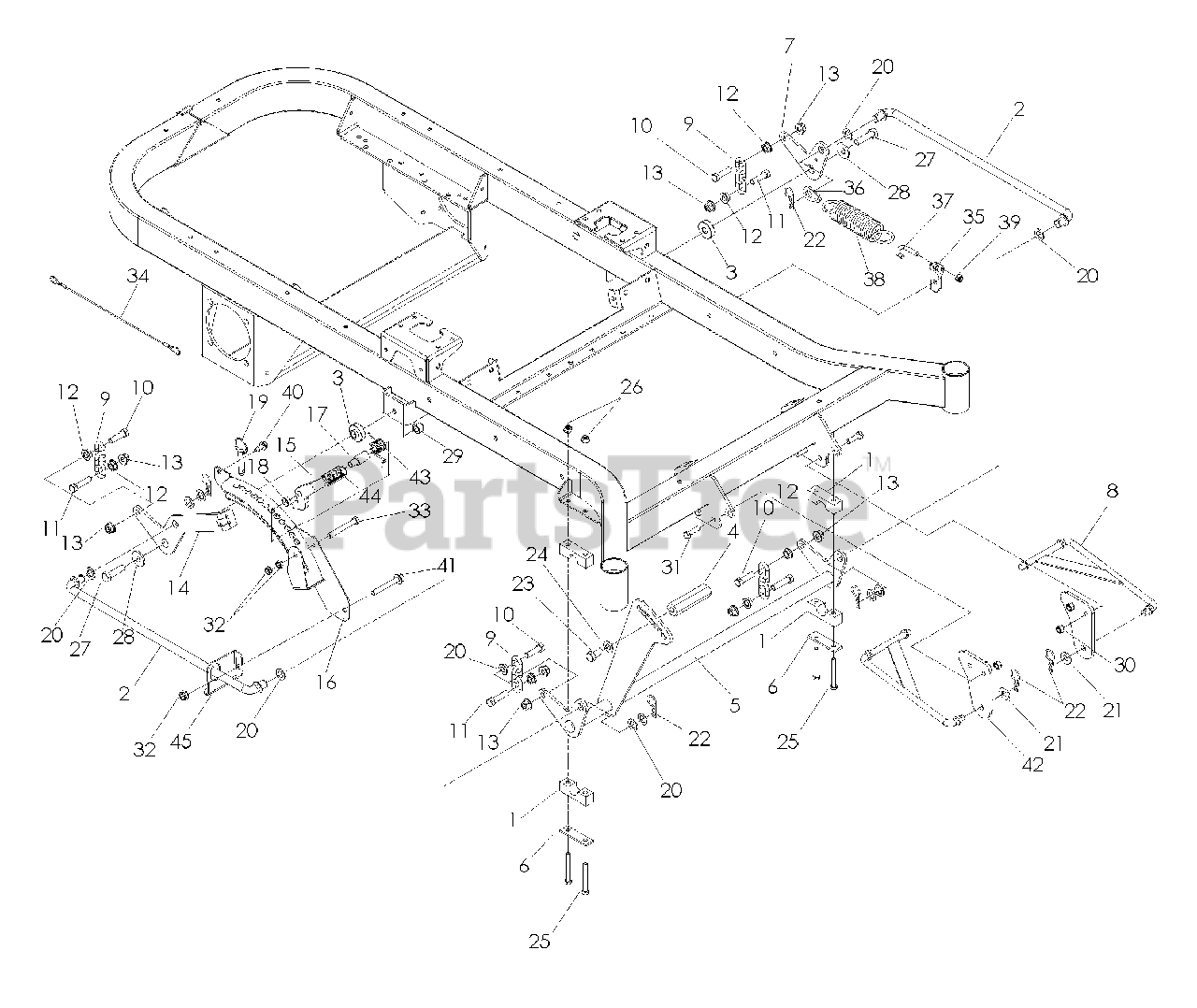

Mower Lift / Deck Lift Parts Diagram

  • Title

1

Husqvarna 539104808

PILLOW BLOCK

$8.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539110808

DECK LIFT LINK

$27.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539118937

IDLER SPACER

$

$

Not available

4

Husqvarna 539131556

PEDAL, FOOT, HEX

$27.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539131558

SHAFT, FRONT-LIFT
(Superseded to 539131509)

$

$

Not available

6

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$4.99

$

In Stock, only 3 left!

0

7

Husqvarna 539131897

BELLCRANK, RR, LIFT

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112223

STRUT LINKAGE

$37.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539109693

LIFT CHAIN-3 LINK

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539101175

HCS 7/16-14 x 1 1/2

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539108073

HCS 7/16-14 x 1 3/4

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102582

NUT 7/16-14 HEX WHIZ LK

$

$

Not available

13

Husqvarna 539132019

NUT 7/16-14 HEX WHIZ LK

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539131853

BELLCRANK, RR, RT

$31.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539131566

LATCH, TRANSPORT

$27.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539131850

HEIGHT, ADJUST, DECK

$84.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539131860

PIVOT, LATCH, TRANSPORT

$24.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539131861

SPACER, .3

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539132182

PIN, 1/2 x 1 1/2, DETENT RING

$

$

Not available

20

Husqvarna 539991043

BUSHING .625

$3.99

$

In Stock, only 2 left!

0

21

Husqvarna 539990250

WASHER, SAE

$1.49

$

Usually ships in 3-10 days

0

22

Husqvarna 539115501

PIN, COTTER 1 3/4

$

$

Not available

23

Husqvarna 539990646

HCS 1/2-13 x 1 3/4

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539102843

WASHER, 7/16" SPRING
(Superseded to 539115528)

$3.99

$

In Stock, only 3 left!

0

25

Husqvarna 539101721

HCS 5/16-18 x 2 3/4

$4.99

$

In Stock, Qty 16

0

26

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 539108181

HCS 1/2-13 x 1 3/4 GR 8

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539109554

WASHER 1/2 FLAT

$

$

Not available

29

Husqvarna 539101331

NUT 1/2 HEX NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539976941

HCS 3/8-16 x 1 1/4

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC

$

$

Not available

33

Husqvarna 539101341

HCS 3/8-16 x 3

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 539105059

LANYARD

$10.99

$

In Stock, only 1 left!

0

35

Husqvarna 539131791

MOUNT, SPRING

$12.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539131792

TAB, SPRING

$40.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539112896

J-BOLT

$

$

Not available

38

Husqvarna 539102642

SPRING, DECK BELTS

$31.99

$

In Stock, only 3 left!

0

39

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 539107475

BOLT 5/16-18 x 3/4 THD FRM

$6.49

$

In Stock, Qty 5

0

41

Husqvarna 539131781

HHFS 3/8-16 x 2 3/4

$4.99

$

In Stock, only 2 left!

0

42

Husqvarna 539132017

MOUNT, STRUT 52", 61"

$30.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539132018

MOUNT, STRUT, 72"

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539132734

SPRING, TORSION

$

$

Not available

44

Husqvarna 539132851

GRIP

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539132891

SUPPORT, LIFT LINKAGE MZ7227 ONLY

$

$

Not available
