MZ 48 - Husqvarna 48" Zero-Turn Mower (Original) ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

48" Zero-Turn Mower

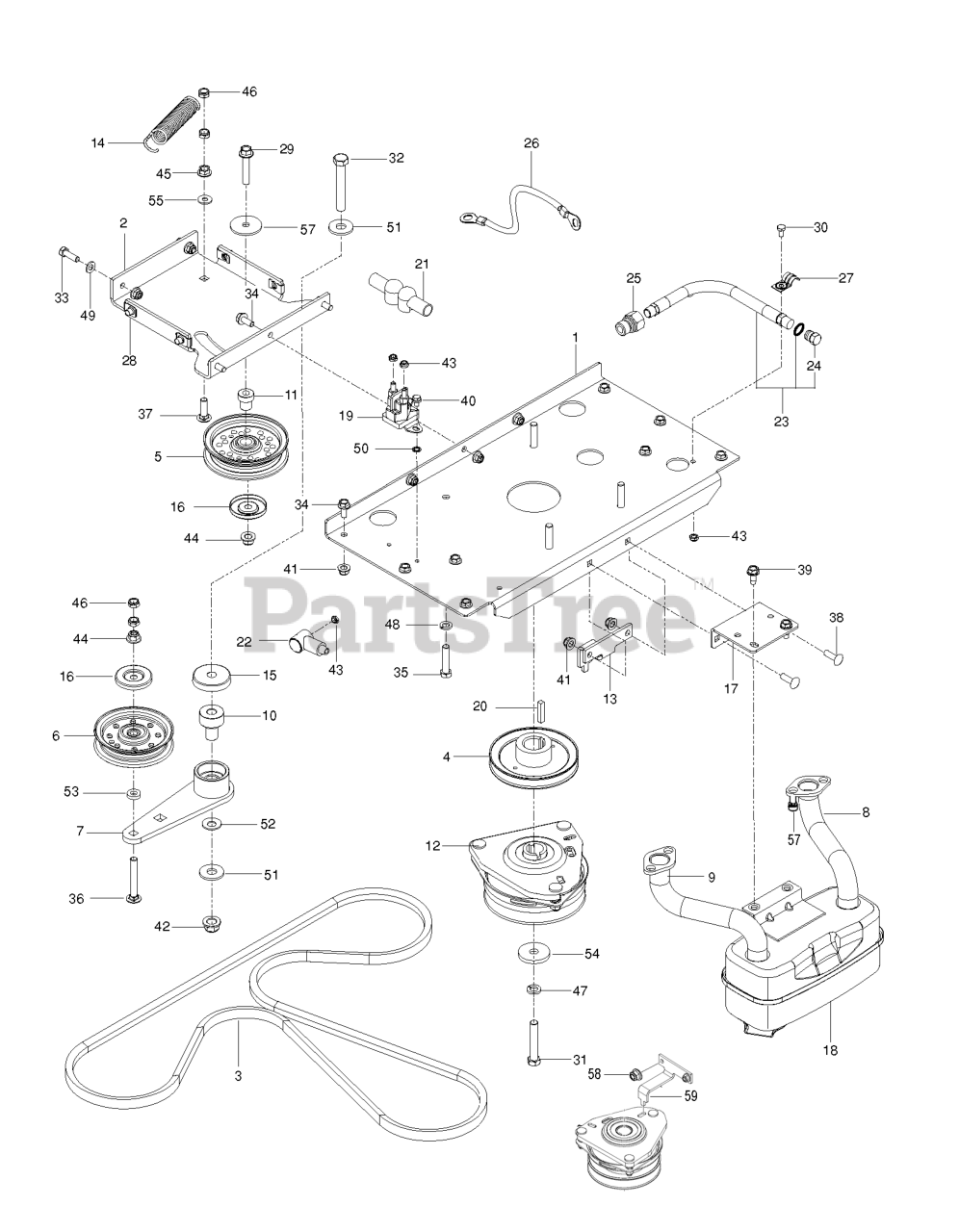

ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

  • Title

30

Husqvarna 874780408

BOLT
(Superseded to 596437001)

Note: For 967262801-00, 967262701-00

$3.49

$

In Stock, Qty 6

0

54

Husqvarna 539106504

SPINDLE WASHER

Note: For 96766590100, 967262801-00, 967262701-00

$

$

Not available

38

Husqvarna 596435701

Bolts

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 539102757

CABLE POSITIVE

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$31.99

$

In Stock, only 1 left!

0

48

Husqvarna 596238701

Washers

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 817120616

SCREW 3/8-16X1

Note: For 967262801-00, 967262701-00

$5.99

$

In Stock, Qty 11

0

1

Husqvarna 586651402

PLATE.PNT.ENGINE.E-DIP

$56.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990209

HCS 5/16C X 1

Note: For 96766590100

$1.99

$

Usually ships in 3-10 days

0

13

Husqvarna 585813601

BRACKET.CLUTCH.STOP.PNTX431
(Superseded to 585813602)

$

$

Not available

43

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 596031501)

$2.49

$

In Stock, Qty 20+

0

51

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

Note: For 967262801-00, 967262701-00

$

$

Not available

Husqvarna 532198316

PIGTAIL.MATNLK.OLD.HARN

Note: NOT SHOWN

$5.99

$

In Stock, only 2 left!

0

9

Husqvarna 583954501

PIPE.EXHAUST.LH.CV18/20

Note: For 967262801-00, 967262701-00

$26.99

$

In Stock, only 2 left!

0

43

Husqvarna 596031501

Hardware
(Superseded to 582478602)

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$2.49

$

In Stock, Qty 20+

0

Husqvarna 586839701

GASKET.EXHAUST.KAWASAKI
(Superseded to 532178151)

Note: NOT SHOWN/ For 96766590100

$2.49

$

In Stock, Qty 20+

0

12

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$376.99

$

In Stock, only 4 left!

0

37

Husqvarna 539100413

RHSNB 3/8-16 X 1-1/4

Note: For 96766590100

$

$

Not available

8

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$31.99

$

In Stock, only 2 left!

0

29

Husqvarna 525866201

HHFS 3/8-16 X 2.0 GD 5

Note: For 96766590100

$4.99

$

In Stock, only 1 left!

0

54

Husqvarna 596770301

Washers

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$5.99

$

In Stock, Qty 20+

0

40

Husqvarna 596582701

Screws

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 585813701

PULLEY.DRIVE.XMSN

$39.99

$

In Stock, only 2 left!

0

11

Husqvarna 525435601

PIVOT, IDLER

$6.99

$

In Stock, Qty 9

0

30

Husqvarna 596437001

Screws

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$3.49

$

In Stock, Qty 6

0

50

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.49

$

In Stock, only 2 left!

0

36

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

Note: For 96766590100

$

$

Not available

5

Husqvarna 539976688

IDLER PULLEY
(Superseded to 596739801)

$37.99

$

In Stock, Qty 8

0

21

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 9

0

56

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

52

Husqvarna 539115528

CONTACT BELLSPR 1/2

$

$

Not available

25

Husqvarna 522599002

ADAPTER, OIL DRAIN

$

$

Not available

2

Husqvarna 586670402

PLATE.PNT.IDLER.SUPPORT.E-DIP

$26.99

$

Usually ships in 3-10 days

0

32

Husqvarna 874780852

HCS 1/2-13 X 3-1/4 GD 5 ZD

Note: For 967262801-00, 967262701-00

$

$

Not available

18

Husqvarna 539131604

MUFFLER ASM TWIN

$51.99

$

In Stock, Qty 8

0

27

Husqvarna 539101363

CLAMP

$3.49

$

In Stock, only 1 left!

0

15

Husqvarna 539114662

SHIELD, DUST
(Superseded to 596394601)

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 581332806

Bolts

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$7.99

$

Usually ships in 3-10 days

0

14

Husqvarna 510254401

SPRING, PUMP
(Superseded to 510254402)

$9.49

$

In Stock, only 4 left!

0

39

Husqvarna 539107475

BOLT 5/16-18 X 3/4

Note: For 96766590100

$5.99

$

In Stock, only 2 left!

0

49

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

Note: For 96766590100

$3.49

$

In Stock, Qty 19

0

30

Husqvarna 539990071

HCS 1/4-20.
(Superseded to 596437001)

Note: For 96766590100

$3.49

$

In Stock, Qty 6

0

34

Husqvarna 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

Note: For 96766590100, 967262801-00, 967262701-00

$4.99

$

In Stock, only 2 left!

0

55

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

Note: For 96766590100

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 585807101

PLUG OIL DRAIN

$3.49

$

In Stock, only 2 left!

0

42

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 12

0

51

Husqvarna 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

Note: For 96766590100

$3.49

$

In Stock, only 3 left!

0

57

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

Note: For 967262801-00, 967262701-00

$3.49

$

In Stock, Qty 20+

0

45

Husqvarna 539990613

NUT 3/8C WHIZ

$

$

Not available

49

Husqvarna 819111116

WASHER
(Superseded to 596204101)

Note: For 967262801-00, 967262701-00

$3.49

$

In Stock, Qty 19

0

59

Husqvarna 585813602

BRACKET.CLUTCH.STOP.PNTX431
(Superseded to 585813601)

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$

$

Not available

3

Husqvarna 574870901

BELT, HYDRO, 3400

$39.99

$

In Stock, only 2 left!

0

36

Husqvarna 872140622

BOLT
(Superseded to 872110622)

Note: For 967262801-00, 967262701-00

$4.99

$

In Stock, Qty 6

0

17

Husqvarna 575229902

BRKT, MUFFLER, BLK

$45.99

$

Usually ships in 3-10 days

0

29

Husqvarna 874490632

HHFS 3/8-16 X 2.0 GD 5
(Superseded to 596319401)

Note: For 967262801-00, 967262701-00

$2.49

$

In Stock, only 1 left!

0

31

Husqvarna 581332802

CLUTCH BOLT7/16-20X2.5 GR596HR
(Superseded to 581332806)

Note: For 96766590100, 967262801-00, 967262701-00

$7.99

$

Usually ships in 3-10 days

0

39

Husqvarna 596135901

Bolts

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$2.49

$

In Stock, only 2 left!

0

22

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$6.99

$

In Stock, Qty 9

0

38

Husqvarna 872110508

BOLT CRT
(Superseded to 596435701)

Note: For 967262801-00, 967262701-00

$3.49

$

In Stock, Qty 20+

0

Husqvarna 586839901

GASKET
(Superseded to 532186054)

Note: NOT SHOWN/ For 967262801-00, 967262701-00

$3.49

$

Usually ships in 3-10 days

0

53

Husqvarna 539109562

WASHER 3/8 X 3/4 X .187 TK

$3.99

$

In Stock, Qty 15

0

33

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00
(Superseded to 596580801)

Note: For 967262801-00, 967262701-00

$3.49

$

In Stock, only 2 left!

0

40

Husqvarna 539990302

HWST 1/4C X 3/8
(Superseded to 596582701)

Note: For 96766590100

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

Note: For 96766590100

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 510041603

ARM, IDLER, STEEL, W/BGS

$62.99

$

Usually ships in 3-10 days

0

58

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$6.99

$

In Stock, Qty 20+

0

19

Husqvarna 582042802

Solenoids

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$28.99

$

In Stock, Qty 20+

0

10

Husqvarna 510206301

PIVOT, BEARING

$5.99

$

In Stock, only 2 left!

0

16

Husqvarna 510254501

DUST SHIELD
(Superseded to 510254502)

$4.99

$

In Stock, only 4 left!

0

32

Husqvarna 539103433

HCS 1/2C X 3 1/4

Note: For 96766590100

$6.99

$

In Stock, Qty 5

0

6

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.
(Superseded to 596481401)

$28.99

$

In Stock, only 1 left!

0

41

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

19

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

Note: For 96766590100, 967262801-00, 967262701-00

$28.99

$

In Stock, Qty 20+

0

47

Husqvarna 596238901

Washers

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$3.49

$

In Stock, Qty 15

0

35

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

Note: For 96766590100

$4.99

$

In Stock, Qty 7

0

8

Husqvarna 583954801

PIPE.EXHAUST.RH.CV18/20

Note: For 967262801-00, 967262701-00

$22.99

$

In Stock, only 2 left!

0

39

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

Note: For 967262801-00, 967262701-00

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

Note: For 96766590100, 967262801-00, 967262701-00

$3.49

$

In Stock, Qty 15

0

44

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

40

Husqvarna 817490406

RP_SCREW.1/4-20X3/8
(Superseded to 817600406)

Note: For 967262801-00, 967262701-00

$3.49

$

In Stock, only 2 left!

0

23

Husqvarna 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$37.99

$

In Stock, only 2 left!

0

35

Husqvarna 596564401

Bolts

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$4.99

$

In Stock, Qty 7

0

28

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 7

0

37

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 595901101)

Note: For 967262801-00, 967262701-00

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 592858702

Bolts

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$4.99

$

In Stock, only 2 left!

0

20

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$5.49

$

Usually ships in 3-10 days

0
