MZ 48 - Husqvarna 48" Zero-Turn Mower (Original) FUEL SYSTEM Parts Diagram

48" Zero-Turn Mower

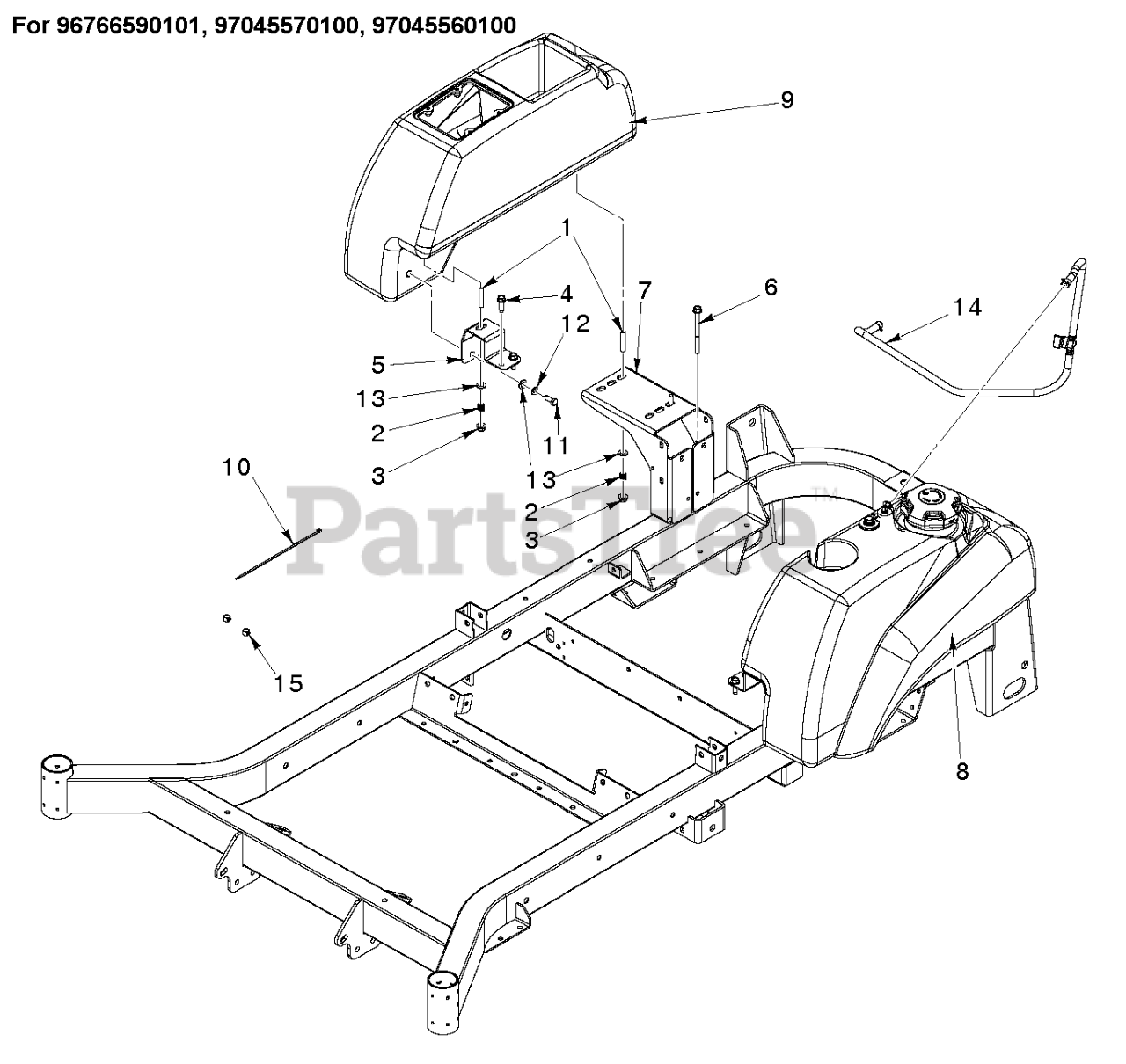

FUEL SYSTEM Parts Diagram

  • Title

8

Husqvarna 585722305

FUEL TANK ASSY LH MZ 2019
(Superseded to 598664901)

$683.99

$

Usually ships in 3-10 days

0

13

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 596238801

WASHER SPRING LOCK WASHER WITH

$3.49

$

In Stock, only 3 left!

0

7

Husqvarna 575533602

MOUNT, TANK, ZT BLK

$68.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 2 left!

0

14

Husqvarna 587044525

NEEDS DESCRIPTION

Note: For 97045560100

$

$

Currently unavailable

3

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$6.99

$

In Stock, Qty 9

0

2

Husqvarna 539102845

SPRING

$3.49

$

In Stock, Qty 5

0

6

Husqvarna 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$5.99

$

In Stock, only 4 left!

0

10

Husqvarna 539976856

TIE, PLASTIC

$6.99

$

Usually ships in 3-10 days

0

15

Husqvarna 596941501

TUBE.PURGE.FUEL.1875
(Superseded to 587044580)

$14.99

$

In Stock, only 1 left!

0

11

Husqvarna 596030501

SCREW HEXAGON HEAD SCREW 5/16-

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 588843202

SUPPORT.PNT.TANK.FRONT.STAMPED

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539107593

FENDER CONSOLE

$159.99

$

In Stock, only 1 left!

0

4

Husqvarna 596433801

SCREW HEX HEAD W/ WASHER 5/16-
(Superseded to 539113226)

$3.49

$

Usually ships in 3-10 days

0
