MZ 48 - Husqvarna 48" Zero-Turn Mower (Original) MOWER DECK / CUTTING DECK Parts Diagram

48" Zero-Turn Mower

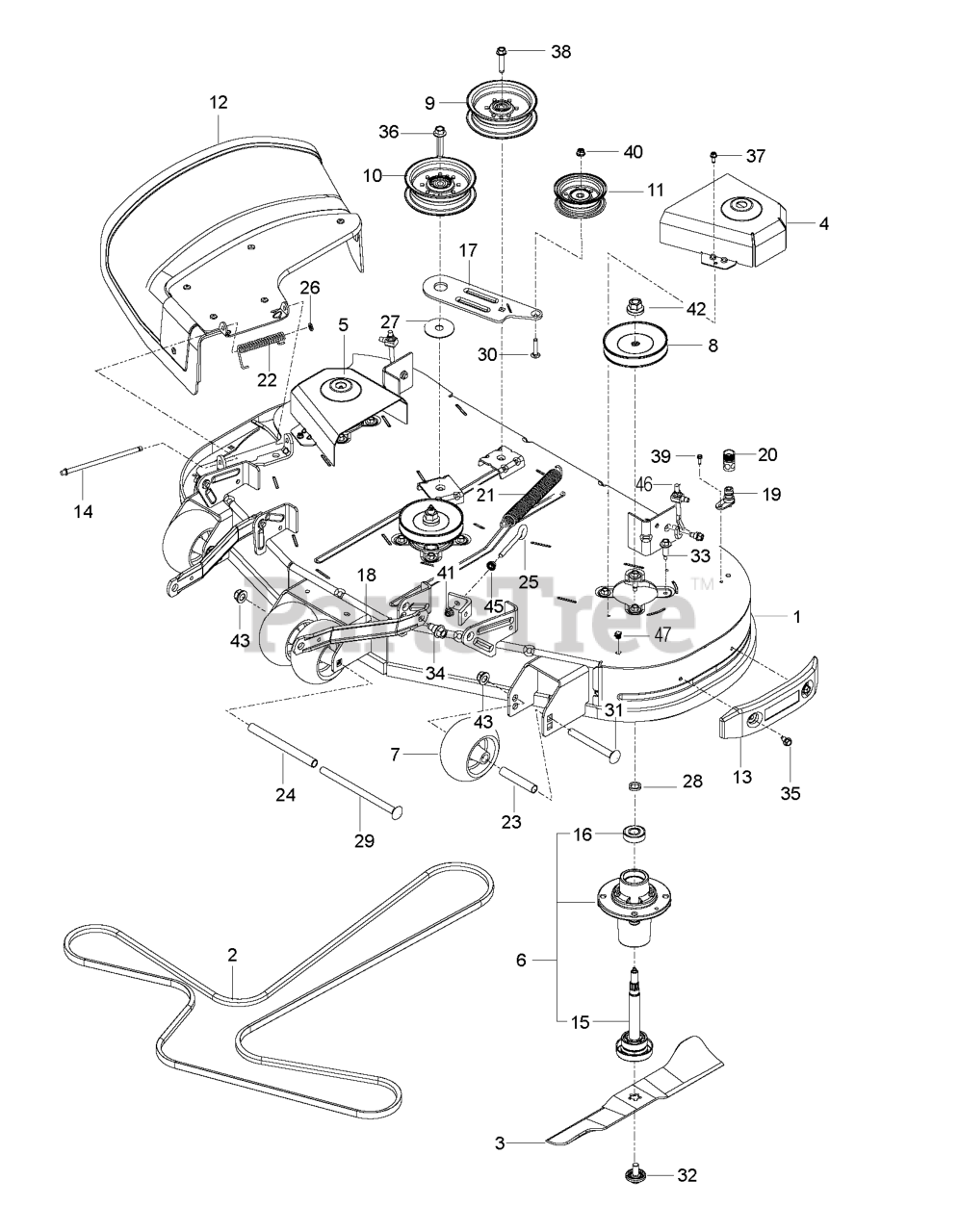

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

31

Husqvarna 510022302

Screws

$6.99

$

In Stock, Qty 9

0

29

Husqvarna 510022401

RHSNB 1/2-13 X 8 GR5 ZD

Note: For 96766590100, 967262801-00, 967262701-00

$31.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532110485

BEARING

Note: For 96766590100, 967262801-00, 967262701-00

$14.99

$

In Stock, Qty 20+

0

4

Husqvarna 588812802

COVER.PNT.MANDREL.LH.ZTR.GREY

$39.99

$

In Stock, Qty 9

0

47

Husqvarna 596952201

Plugs

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 582541101

BUMPER.ASM.SIDE.TRIM.CLRCUT.48

$22.99

$

In Stock, only 2 left!

0

21

Husqvarna 582504001

SPRING.EXTENSION

$7.99

$

In Stock, only 2 left!

0

6

Husqvarna 539131898

MANDREL ASM, CAST IRON

Note: CAST IRON

$79.99

$

In Stock, Qty 20+

0

20

Husqvarna 532416405

COUPLING.QUICK CONNECT

$9.49

$

In Stock, Qty 12

0

32

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$9.49

$

In Stock, Qty 20+

0

15

Husqvarna 532187291

SHAFT ASM MANDREL

$31.99

$

In Stock, Qty 20+

0

65

Husqvarna 596433501

NUT NUT.3/8-16.HEX.JAM.Z 3/8-1

Note: Jam Nut

$3.49

$

In Stock, Qty 6

0

12

Husqvarna 593649701

GSPW Deflectors

$113.99

$

Usually ships in 3-10 days

0

16

Husqvarna 598645501

Spacers

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$28.99

$

In Stock, Qty 20+

0

17

Husqvarna 588812202

ARM.PNT.CLUTCHING.EDIP
(Superseded to 529470302)

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$7.99

$

In Stock, only 2 left!

0

41

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: NUT HEXAGON FLANGE 5/16-18

$6.99

$

In Stock, Qty 11

0

23

Husqvarna 574196402

Tubes

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$6.99

$

In Stock, Qty 16

0

42

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

Note: For 96766590100, 967262801-00, 967262701-00

$2.49

$

In Stock, Qty 20+

0

46

Husqvarna 588783401

LINK.ASM.ADJUSTABLE
(Superseded to 599857101)

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$13.99

$

In Stock, Qty 20+

0

43

Husqvarna 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

$4.99

$

In Stock, Qty 14

0

19

Husqvarna 532415598

PORT.WASHOUT

$7.99

$

In Stock, Qty 6

0

42

Husqvarna 598490501

Nuts

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$9.49

$

In Stock, only 1 left!

0

3

Husqvarna 588811202

BLADE.BAGGER.COM.CLRCT.48".BLK

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$39.99

$

In Stock, only 2 left!

0

33

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$1.49

$

In Stock, Qty 20+

0

35

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 539119007

BLADE BOLT/WASHER

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$13.99

$

In Stock, Qty 10

0

5

Husqvarna 588812402

COVER.PNT.MANDREL.RH.GREY

$45.99

$

In Stock, Qty 20+

0

7

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$20.99

$

In Stock, Qty 20+

0

45

Husqvarna 596039201

GSPW Hardware

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 532173435

MANDREL.PULLEY.38.BRIGHT.ZINC

Note: For 96766590100, 967262801-00, 967262701-00

$22.99

$

In Stock, Qty 20+

0

36

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

In Stock, Qty 13

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

28

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

3

Husqvarna 588811002

BLADE.BAGGER.RES.CLRCT.48".BLK

Note: For 96766590100, 967262801-00, 967262701-00

$34.99

$

In Stock, Qty 20+

0

2

Husqvarna 579678501

BELT.DRIVE

$85.99

$

In Stock, only 1 left!

0

46

Husqvarna 532176205

TRUNNION

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$7.99

$

In Stock, Qty 6

0

18

Husqvarna 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$6.99

$

Usually ships in 3-10 days

0

39

Husqvarna 596637301

Screws

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 574196401

TUBE, ROLLER AXLE
(Superseded to 574196402)

$6.99

$

In Stock, Qty 16

0

46

Husqvarna 588252901

NUT.HEX.FLANGE.INS.BLK.3/8-16

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 588812304

ARM.PNT.CLUTCHING.ASM.EDIP
(Superseded to 529470302)

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$7.99

$

In Stock, only 2 left!

0

38

Husqvarna 596564003

BOLT;HEX_3/8-16 X 1.78.CLRZINC
(Superseded to 599972501)

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$45.99

$

In Stock, Qty 20+

0

6

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

Note: ALUMINUM

$85.99

$

In Stock, Qty 20+

0

24

Husqvarna 574196502

Tubes

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$22.99

$

In Stock, only 2 left!

0

8

Husqvarna 590805103

Pulleys

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$39.99

$

Usually ships in 3-10 days

0

39

Husqvarna 817490408

SCREW
(Superseded to 596437001)

Note: For 96766590100, 967262801-00, 967262701-00

$3.49

$

In Stock, Qty 10

0

25

Husqvarna 596240801

GSPW Bolts

$4.99

$

In Stock, only 4 left!

0

29

Husqvarna 594944501

Bolts

Note: For 96766590101, 97045570100, 97045560100, 96766590100

$9.49

$

In Stock, only 3 left!

0

23

Husqvarna 574196501

TUBE, ROLLER AXLE LONG
(Superseded to 574196502)

Note: For 96766590100, 967262801-00, 967262701-00

$22.99

$

In Stock, only 2 left!

0

22

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 9

0

14

Husqvarna 595297001

Rods

$6.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

Note: For 96766590100, 967262801-00, 967262701-00

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 532178515

WASHER

$6.99

$

In Stock, Qty 10

0

37

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

1

Husqvarna 598852701

Decals

Note: COMES WITH DISCHARGE CHUTE

$1709.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532196106

PULLEY.IDLER.2006

$43.99

$

In Stock, Qty 20+

0

18

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

Note: For 96766590100, 967262801-00, 967262701-00

$17.99

$

In Stock, only 2 left!

0

30

Husqvarna 872110614

BOLT

$

$

Not available
