MZ 48 - Husqvarna 48" Zero-Turn Mower (Original) SEAT Parts Diagram

48" Zero-Turn Mower

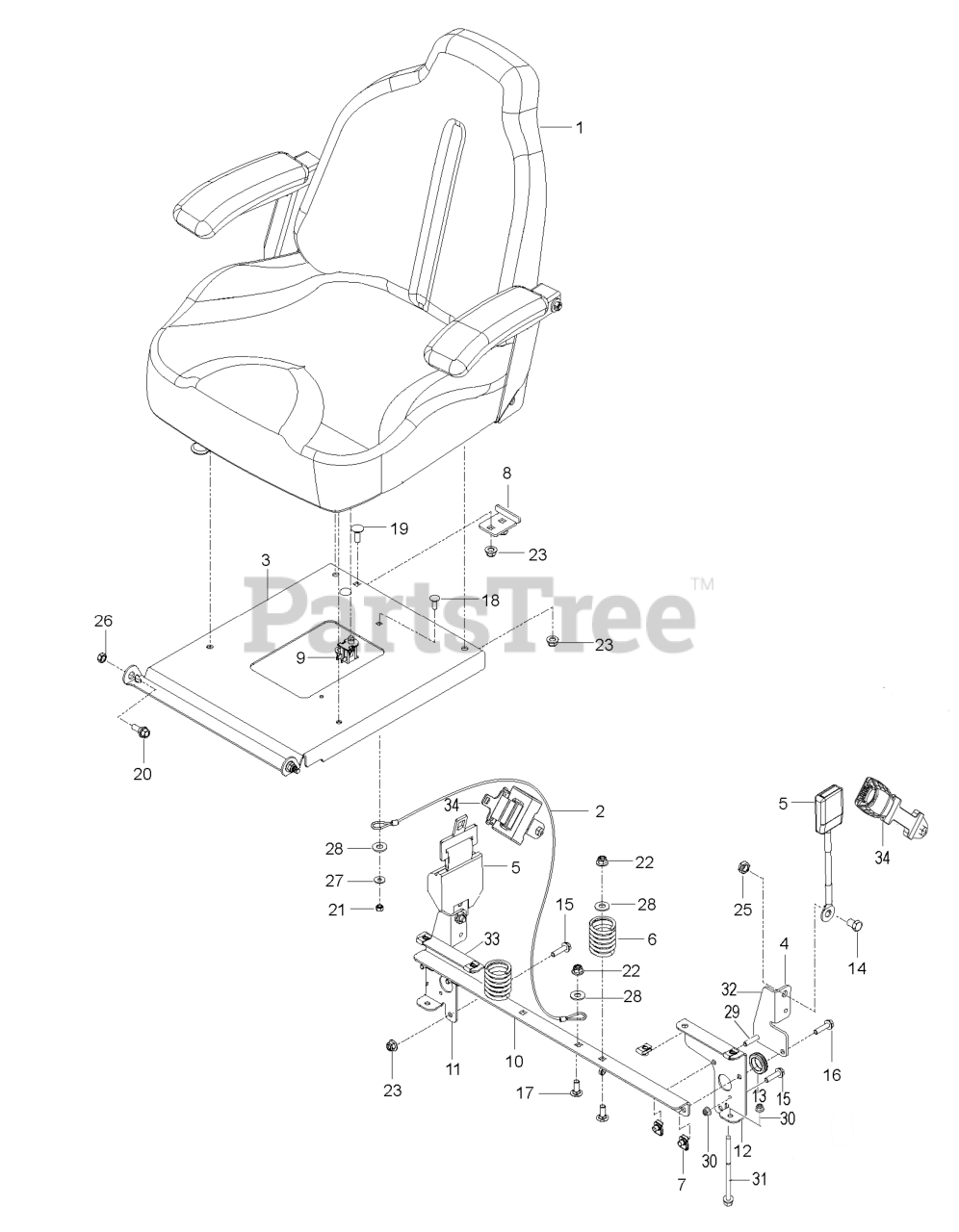

SEAT Parts Diagram

  • Title

23

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$7.49

$

In Stock, Qty 20+

0

8

Husqvarna 539130793

STOP, SEAT - BLACK
(Superseded to 539130794)

$9.99

$

Usually ships in 3-10 days

0

33

Husqvarna 584990102

SUPPORT.RT.BLK

Note: For 96766590101

$7.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539103247

SEAT LANYARD

$21.99

$

Usually ships in 3-10 days

0

28

Husqvarna 596433701

GSPW Washers

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: For 96766590101, 97045570100, 97045560100

$7.49

$

In Stock, Qty 20+

0

Husqvarna TBD

Note: For 96766590101

$

$

Not available

5

Husqvarna 539130359

SEAT BELT, RETRACTABLE
(Superseded to 596322701)

$143.99

$

Usually ships in 3-10 days

0

31

Husqvarna 592858702

Bolts

Note: For 96766590101

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

Note: For 97045570100, 97045560100

$5.99

$

In Stock, only 4 left!

0

18

Husqvarna 872110406

BOLT
(Superseded to 582735501)

$3.99

$

In Stock, only 4 left!

0

34

Husqvarna 596322701

SEAT.BELT

Note: For 96766590101

$143.99

$

Usually ships in 3-10 days

0

29

Husqvarna 525544002

Bolts

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 584990102

SUPPORT.RT.BLK

Note: For 96766590101

$7.99

$

Usually ships in 3-10 days

0

27

Husqvarna 596204201

Washers

$3.99

$

In Stock, Qty 7

0

13

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

21

Husqvarna 595086601

NUT HEXAGON 1/4-20 ST ZPB
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 587613301

SPRING.COMPRESSION.SEAT.BLACK

Note: For 97045570100, 97045560100, 96766590100, 967262801-00, 967262701-00

$7.49

$

In Stock, Qty 20+

0

19

Husqvarna 872050506

RHSNB 5/16-18 X 3/4 GR5 BLK ZN
(Superseded to 539109100)

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 501580402

SEAT.ASM.907.TRACK.W/O.BELT

$968.99

$

Usually ships in 3-10 days

0

17

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

Note: For 96766590100, 967262801-00, 967262701-00

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5
(Superseded to 525544002)

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 595316801

Bolts

Note: For 96766590101, 97045570100, 97045560100

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 539112034

HCS 7/16-20 X .75 GD 5

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 584916802

MOUNT.SEAT.BELT.BLACK

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501762102

SUPPORT.SEAT.ORANGE
(Superseded to 596300901)

$77.99

$

In Stock, Qty 9

0

9

Husqvarna 532421062

SWITCH.SNAPMOUNT.NC

$15.99

$

In Stock, Qty 11

0

7

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

Note: For 96766590101, 97045570100, 97045560100

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 587613302

Springs

Note: For 96766590101

$9.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$11.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

Note: For 96766590100, 967262801-00, 967262701-00

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 584990202

SUPPORT.LT.BLK

$6.99

$

In Stock, only 4 left!

0

15

Husqvarna 592858702

Bolts

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 584809102

SUPPORT.SEAT. BLK

Note: For 96766590100, 967262801-00, 967262701-00

$21.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990394

NUT HEX 7/16F LOCK RP

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 593144402

Brackets

Note: For 97045570100, 97045560100

$23.99

$

Usually ships in 3-10 days

0

11

Husqvarna 584990102

SUPPORT.RT.BLK

$7.99

$

Usually ships in 3-10 days

0

22

Husqvarna 521996502

GSPW Nuts

Note: 3/8-16 flange lock nut

$3.49

$

In Stock, Qty 7

0
