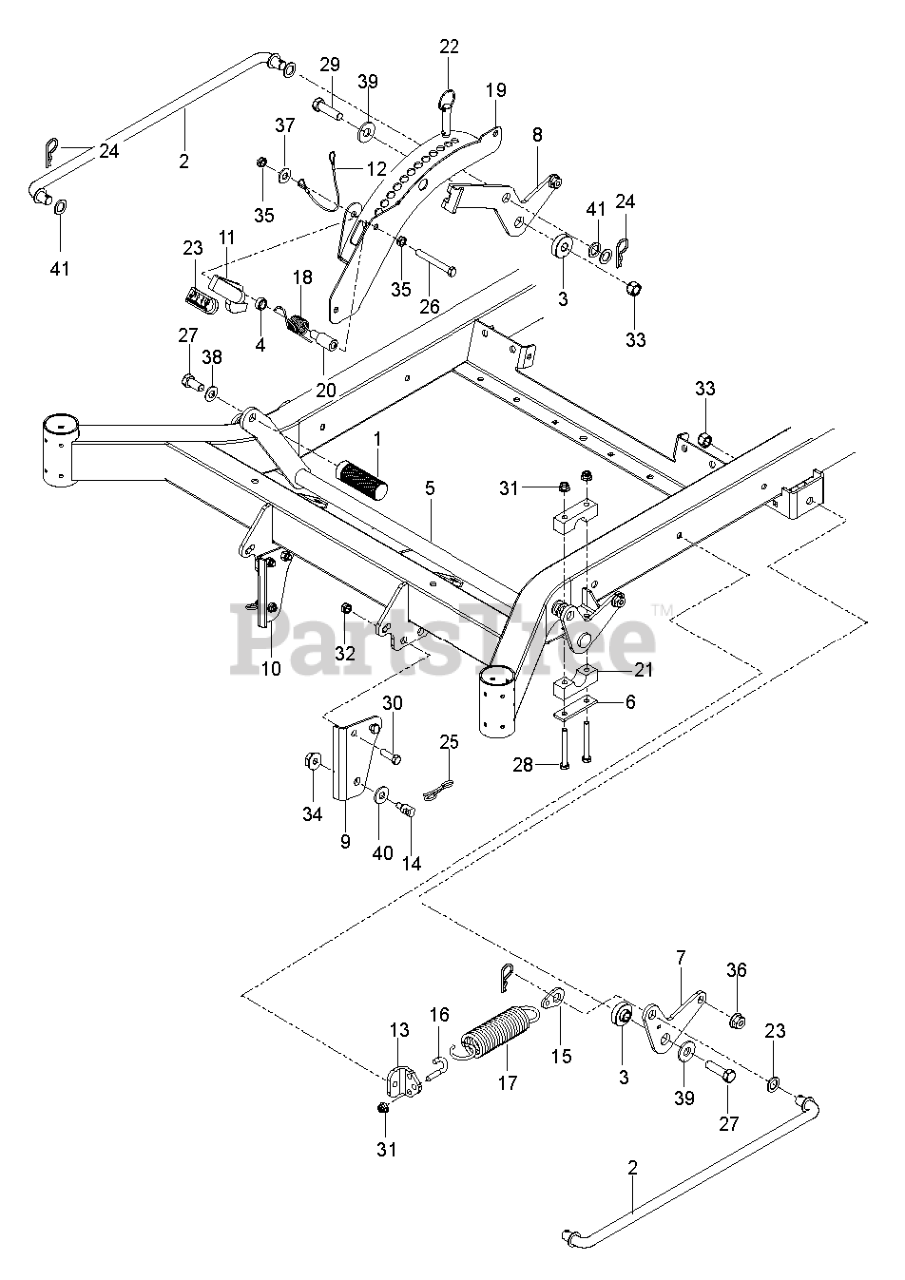

MZ 54 (970455801-00) - Husqvarna 54" Zero-Turn Mower (2019-12) MOWER LIFT / DECK LIFT 2 Parts Diagram

54" Zero-Turn Mower

MOWER LIFT / DECK LIFT 2 Parts Diagram

  • Title

2

Husqvarna 539110808

CROSS LINK

$

$

Not available

19

Husqvarna 539131850

HEIGHT, ADJUST, DECK

$

$

Not available

12

Husqvarna 539105059

LANYARD

$10.99

$

In Stock, only 1 left!

0

38

Husqvarna 539115528

CONTACT BELLSPR 1/2

$

$

Not available

35

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

7

Husqvarna 539131897

BELLCRANK, RR, LIFT

$17.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539132182

PIN, 1/2 X 1 1/2, DETENT RING
(Superseded to 596917901)

$9.49

$

In Stock, only 4 left!

0

15

Husqvarna 593663803

Springs

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 586701701

SPACER.IDLER.METAL.POWDER
(Superseded to 586701702)

$6.99

$

Usually ships in 3-10 days

0

33

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 539102642

SPRING

$31.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539108181

HCS 1/2-13 X 1 3/4 GR 8
(Superseded to 596435801)

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539132851

GRIP, TRANSPORT-RELEASE

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

9

Husqvarna 588812102

BRACKET.PNT.SUSP.CHAS.FR.LH.OR

$

$

Not available

11

Husqvarna 539131566

LATCH, TRANSPORT
(Superseded to 596783301)

$22.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 592877702

BELLCRANK REAR.RT BLACK X431

$22.99

$

Usually ships in 3-10 days

0

37

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 16

0

16

Husqvarna 539112896

J-BOLT
(Superseded to 596917401)

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990646

HHCS 1/2-13 X 1
(Superseded to 596583601)

$3.49

$

In Stock, only 1 left!

0

28

Husqvarna 874780544

BOLT HEX
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539132734

SPRING, TORSION

$

$

Not available

10

Husqvarna 588812002

BRACKET.PNT.SUSP.CHAS.FR.RH.OR
(Superseded to 592978502)

$9.49

$

Usually ships in 3-10 days

0

1

Husqvarna 510408301

PEDAL, DECK HEIGHT
(Superseded to 510408302)

$34.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539115501

PIN, COTTER 1 3/4

$3.49

$

Usually ships in 3-10 days

0

39

Husqvarna 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

$3.49

$

In Stock, only 4 left!

0

41

Husqvarna 819211616

WASHER LT
(Superseded to 596933401)

$3.49

$

In Stock, only 2 left!

0

32

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

30

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

13

Husqvarna 593663603

Springs

$7.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 11

0

36

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 539131861

SPACER, .3
(Superseded to 596515201)

$9.49

$

Usually ships in 3-10 days

0

26

Husqvarna 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5
(Superseded to 596564405)

$3.49

$

In Stock, Qty 9

0

20

Husqvarna 539131860

PIVOT, LATCH, TRANSPORT
(Superseded to 596517401)

$17.99

$

Usually ships in 3-10 days

0

40

Husqvarna 819191912

WASHER.CLEAR.ZINC

$3.49

$

In Stock, Qty 19

0

21

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

5

Husqvarna 586928702

LIFT.PNT.MZ.DECK.WELD.E-DIP

$62.99

$

Usually ships in 3-10 days

0

6

Husqvarna 584392702

REINFORCEMENT.PLATEX431

$13.99

$

In Stock, only 2 left!

0
