MZ 54 - Husqvarna 54" Zero-Turn Mower ENGINE PLATE Parts Diagram

54" Zero-Turn Mower

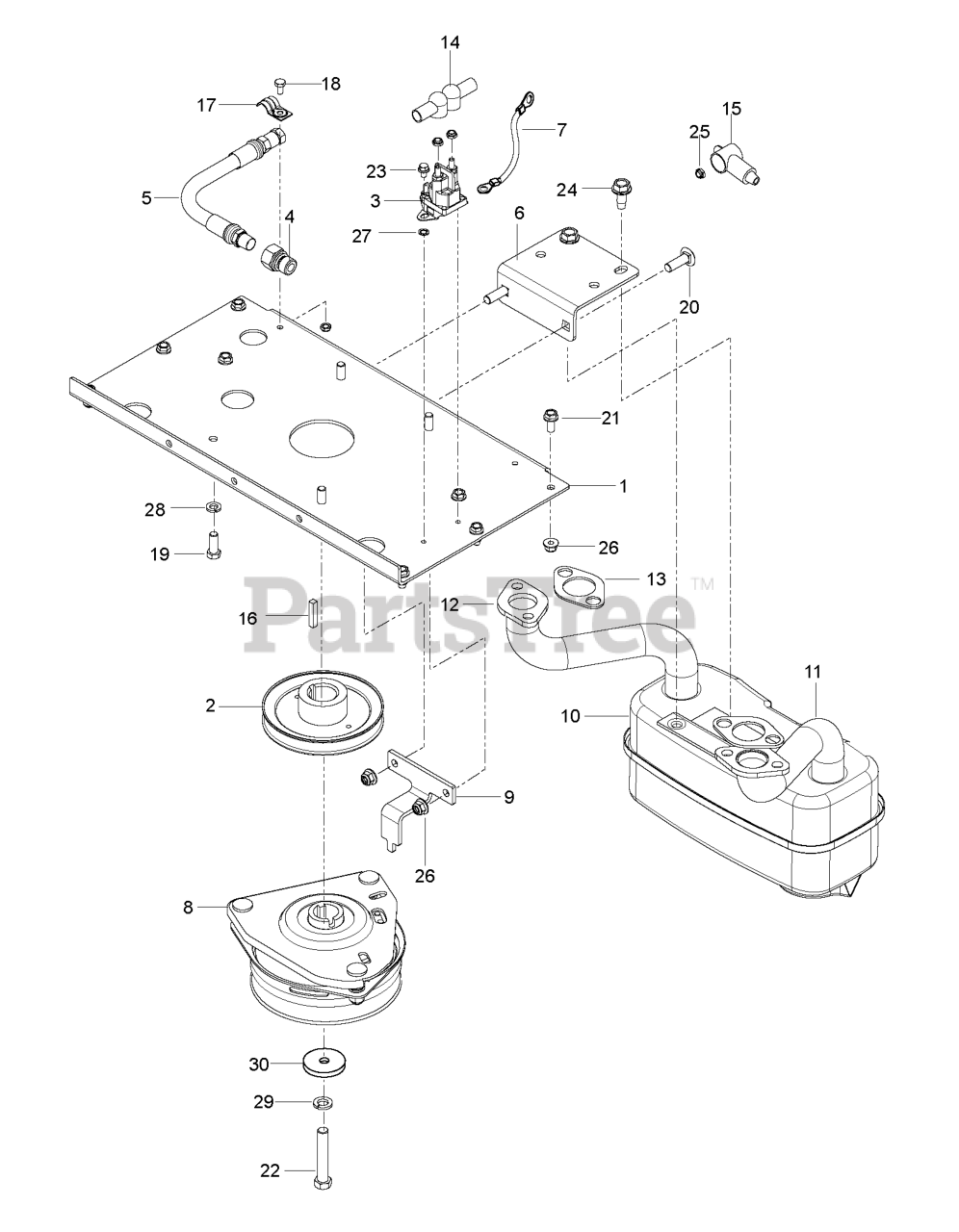

ENGINE PLATE Parts Diagram

  • Title

12

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

Note: For all EXCEPT 967696001-00, 967696001-01

$33.99

$

In Stock, only 2 left!

0

7

Husqvarna 539102757

CABLE POSITIVE

$7.49

$

In Stock, only 2 left!

0

6

Husqvarna 575229902

BRKT, MUFFLER, BLK

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 596564401

Bolts

Note: For 97045580100

$4.99

$

In Stock, Qty 9

0

19

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

Note: For all EXCEPT 967696001-00, 967696001-01

$4.99

$

In Stock, Qty 9

0

28

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

Note: For all EXCEPT 967696001-00, 967696001-01, 97045580100

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539990053

WASHER 1/4 INT TOOTH

Note: For all EXCEPT 97045580100

$3.49

$

In Stock, only 2 left!

0

11

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

Note: For all EXCEPT 967696001-00, 967696001-01

$33.99

$

In Stock, only 4 left!

0

25

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 596031501)

Note: For all EXCEPT 97045580100

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: For 97045580100

$7.49

$

In Stock, Qty 20+

0

30

Husqvarna 539106504

SPINDLE WASHER
(Superseded to 596770301)

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 585813701

PULLEY.DRIVE.XMSN

$41.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

Note: For all EXCEPT 97045580100

$3.99

$

In Stock, only 2 left!

0

18

Husqvarna 596437001

Screws

Note: For 97045580100

$3.99

$

In Stock, only 2 left!

0

21

Husqvarna 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

Note: For all EXCEPT 97045580100

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

Note: For all EXCEPT 97045580100

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 592858702

Bolts

Note: For 97045580100

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 8

0

19

Husqvarna 817120616

SCREW 3/8-16X1

Note: For 967696001-00, 967696001-01

$5.99

$

In Stock, Qty 20+

0

Husqvarna 532198316

PIGTAIL.MATNLK.OLD.HARN

$9.99

$

In Stock, only 2 left!

0

1

Husqvarna 586651402

PLATE.PNT.ENGINE.E-DIP

$59.99

$

Usually ships in 3-10 days

0

13

Husqvarna 586839701

GASKET.EXHAUST.KAWASAKI
(Superseded to 532178151)

$2.49

$

In Stock, Qty 20+

0

25

Husqvarna 596031501

Hardware
(Superseded to 582478602)

Note: For 97045580100

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$7.49

$

In Stock, only 4 left!

0

24

Husqvarna 596135901

Bolts

Note: For 97045580100

$2.49

$

In Stock, Qty 11

0

9

Husqvarna 585813601

BRACKET.CLUTCH.STOP.PNTX431
(Superseded to 585813602)

$

$

Not available

27

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: For 97045580100

$7.49

$

In Stock, Qty 20+

0

16

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$5.49

$

Usually ships in 3-10 days

0

24

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

Note: For 967696001-00, 967696001-01

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 539990302

HWST 1/4C X 3/8
(Superseded to 596582701)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 583954801

PIPE.EXHAUST.RH.CV18/20

Note: For 967696001-00, 967696001-01

$22.99

$

In Stock, only 3 left!

0

8

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$395.99

$

In Stock, only 2 left!

0

17

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

Note: For 97045580100

$3.99

$

In Stock, Qty 5

0

18

Husqvarna 539990071

HCS 1/4-20.
(Superseded to 596437001)

Note: For all EXCEPT 97045580100

$3.99

$

In Stock, only 2 left!

0

3

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

Note: For all EXCEPT 97045580100

$33.99

$

In Stock, Qty 20+

0

24

Husqvarna 539107475

BOLT 5/16-18 X 3/4

Note: For all EXCEPT 967696001-00, 967696001-01

$

$

Not available

000000000

Note: For 967696101-00, Engine, Kawasaki FR730V-FS00-S 24 Hp. For engine replacement parts, see Kawasaki dealer.

$

$

Not available

29

Husqvarna 596238901

Washers

Note: For 97045580100

$3.99

$

In Stock, only 2 left!

0

4

Husqvarna 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599002)

$

$

Not available

22

Husqvarna 581332802

CLUTCH BOLT7/16-20X2.5 GR596HR
(Superseded to 581332806)

$7.49

$

In Stock, Qty 14

0

26

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

Note: For all EXCEPT 97045580100

$7.49

$

In Stock, Qty 20+

0

5

Husqvarna 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$39.99

$

Usually ships in 3-10 days

0

3

Husqvarna 582042802

Solenoids

Note: For 97045580100

$33.99

$

In Stock, Qty 20+

0

28

Husqvarna 596238701

Washers

Note: For 97045580100

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 583954501

PIPE.EXHAUST.LH.CV18/20

Note: For 967696001-00, 967696001-01

$26.99

$

In Stock, Qty 6

0

20

Husqvarna 596435701

Bolts

Note: For 97045580100

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539131604

MUFFLER ASM TWIN

$53.99

$

In Stock, Qty 20+

0
