MZ 54 - Husqvarna 54" Zero-Turn Mower MOWER DECK / CUTTING DECK 2 Parts Diagram

54" Zero-Turn Mower

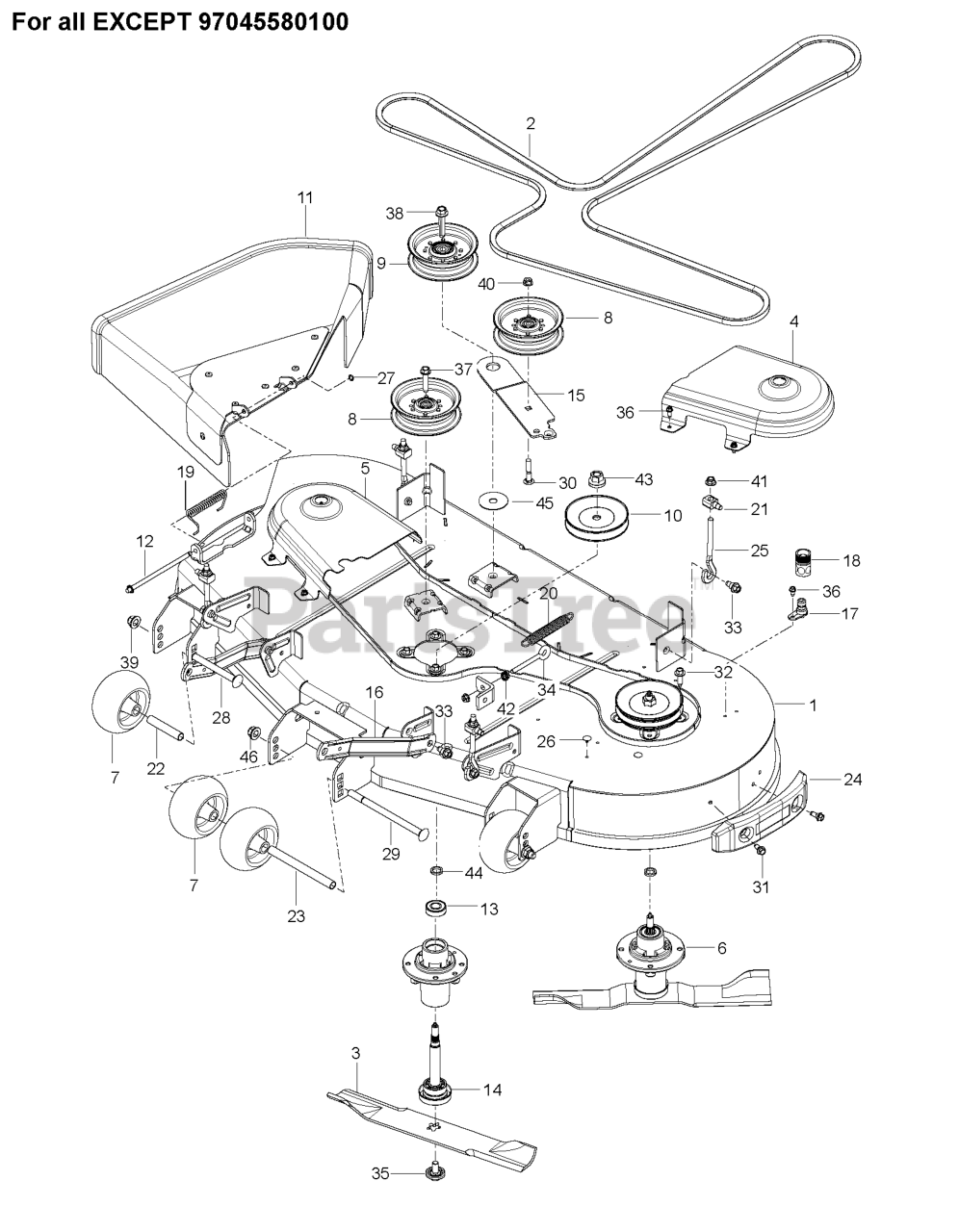

MOWER DECK / CUTTING DECK 2 Parts Diagram

  • Title

16

Husqvarna 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$

$

Not available

22

Husqvarna 574196401

TUBE, ROLLER AXLE
(Superseded to 574196402)

$7.49

$

In Stock, Qty 11

0

17

Husqvarna 532415598

PORT.WASHOUT

$8.49

$

In Stock, Qty 20+

0

8

Husqvarna 532196106

PULLEY.IDLER.2006

$43.99

$

In Stock, Qty 20+

0

2

Husqvarna 582236501

BELT CLEARCUT 54, MZ DECK DRIV

$107.99

$

In Stock, Qty 17

0

45

Husqvarna 532178515

WASHER

$7.49

$

In Stock, Qty 20+

0

29

Husqvarna 594944501

Bolts

$9.99

$

In Stock, Qty 12

0

7

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$21.99

$

In Stock, Qty 20+

0

9

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$47.99

$

In Stock, Qty 20+

0

25

Husqvarna 588783401

LINK.ASM.ADJUSTABLE
(Superseded to 599857101)

Note: For 96795370100, Includes; 21, 41

$14.99

$

In Stock, Qty 20+

0

18

Husqvarna 532416405

COUPLING.QUICK CONNECT

$9.99

$

In Stock, Qty 19

0

36

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

44

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 532176205

TRUNNION

$7.99

$

In Stock, Qty 17

0

43

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

13

Husqvarna 532110485

BEARING

$17.99

$

In Stock, Qty 20+

0

6

Husqvarna 539131898

MANDREL ASM, CAST IRON

Note: For all EXCEPT 96769610201

$83.99

$

In Stock, Qty 20+

0

40

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$1.49

$

In Stock, Qty 20+

0

35

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$9.49

$

In Stock, Qty 20+

0

4

Husqvarna 590304403

COVER.PNT.54CC.MNDRL.LH.ZTR.GY

Note: For 96795370100, 967953702-00

$23.99

$

In Stock, Qty 17

0

6

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

Note: For all EXCEPT 96795370100, 967953702-00

$101.99

$

In Stock, Qty 20+

0

12

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$7.49

$

In Stock, Qty 20+

0

38

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$7.49

$

In Stock, Qty 20+

0

34

Husqvarna 539115574

EYE BOLT 5/16 X 3.50
(Superseded to 596240801)

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD
(Superseded to 510022302)

$7.49

$

In Stock, Qty 9

0

30

Husqvarna 872110616

BOLT
(Superseded to 596136301)

$3.99

$

In Stock, Qty 13

0

3

Husqvarna 582760502

BLADE CC54 PZ STYLE HI LIFT BL

Note: For all EXCEPT 96795370100, 967953702-00, 96769610201

$39.99

$

In Stock, Qty 20+

0

31

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 596433501

NUT NUT.3/8-16.HEX.JAM.Z 3/8-1

Note: Jam Nut

$3.99

$

In Stock, Qty 6

0

32

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 590304402

COVER 54 CLEARCUT, LH MANDREL,

Note: For all EXCEPT 96795370100, 967953702-00

$27.99

$

In Stock, only 4 left!

0

37

Husqvarna 817490628

SCREW LT
(Superseded to 599972501)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 591120101

DECK.SVC.54.CLRCT.MZ.MS668
(Superseded to 546499901)

$2393.99

$

Usually ships in 3-10 days

0

19

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 590632201

DEFLECTOR ASSY 54 CLEARCUT RES

$95.99

$

In Stock, Qty 20+

0

5

Husqvarna 590304203

COVER 54 CLEARCUT RH MANDREL G

Note: For 96795370100

$27.99

$

In Stock, only 4 left!

0

39

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 590304202

COVER 54 CLEARCUT RH MANDREL O

Note: For all EXCEPT 96795370100

$27.99

$

In Stock, only 2 left!

0

33

Husqvarna 532196539

BOLT.SHOULDER

$1.49

$

In Stock, Qty 20+

0

46

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

Note: For 96795370100

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 582062502

BLADE.54CC.HI-LIFT.PZ.197".431

Note: For 96795370100, 967953702-00, 96769610201

$39.99

$

In Stock, Qty 20+

0

10

Husqvarna 532175708

PULLEY.MANDREL.CRD 107CM.DOM.

$17.99

$

In Stock, Qty 20+

0

41

Husqvarna 532400244

NUT.FLANGE.LOCK
(Superseded to 588252901)

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 532187291

SHAFT ASM MANDREL
(Superseded to 597023501)

$33.99

$

In Stock, Qty 20+

0

26

Husqvarna 589813301

PLUG CHRISTMAS TREE

$3.99

$

In Stock, only 2 left!

0

27

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 582219602

ARM IDLER ARM, CLEARCUT 54 BLA

$5.99

$

In Stock, Qty 13

0

42

Husqvarna 539990585

NUT 5/16C WHIZ
(Superseded to 596039201)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$14.99

$

In Stock, Qty 20+

0

24

Husqvarna 590732501

BUMPER ASSY 54 CLEARCUT TRIM S

$14.99

$

In Stock, Qty 18

0

23

Husqvarna 574196501

TUBE, ROLLER AXLE LONG
(Superseded to 574196502)

$23.99

$

In Stock, Qty 13

0

25

Husqvarna 588783301

LINK.ADJUSTABLE
(Superseded to 599857101)

Note: For all EXCEPT 96795370100

$14.99

$

In Stock, Qty 20+

0
