MZ 54 - Husqvarna 54" Zero-Turn Mower SEAT Parts Diagram

54" Zero-Turn Mower

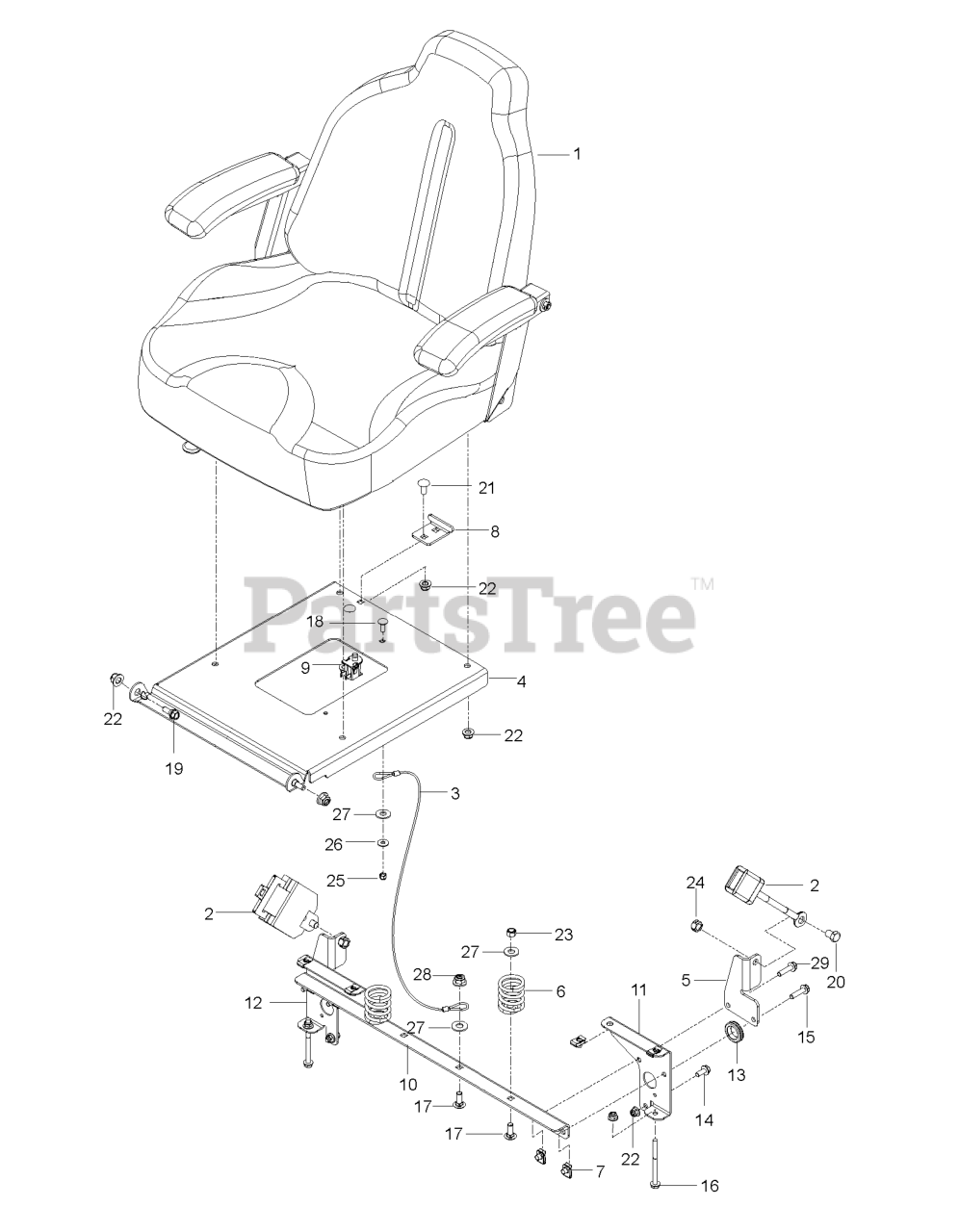

SEAT Parts Diagram

  • Title

4

Husqvarna 501762102

SUPPORT.SEAT.ORANGE
(Superseded to 596300901)

$77.99

$

In Stock, Qty 9

0

13

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

1

Husqvarna 501580402

SEAT.ASM.907.TRACK.W/O.BELT

$968.99

$

Usually ships in 3-10 days

0

22

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

Note: For 967696101-00, 967696001-00, 967696001-01

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 584990102

SUPPORT.RT.BLK

Note: For 96795370100, 967953702-00, 97045580100

$7.99

$

Usually ships in 3-10 days

0

27

Husqvarna 596433701

GSPW Washers

Note: For 97045580100

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539115620

1/4-20X3/4 CARR BLT
(Superseded to 596238401)

Note: For all EXCEPT 97045580100

$3.99

$

In Stock, only 4 left!

0

26

Husqvarna 596204201

Washers

Note: For 97045580100

$3.99

$

In Stock, Qty 7

0

15

Husqvarna 592858702

Bolts

Note: For 97045580100

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 596240901

GSPW Nuts

Note: For 97045580100

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 596433701)

Note: For all EXCEPT 97045580100

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990394

NUT HEX 7/16F LOCK RP

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 872050506

RHSNB 5/16-18 X 3/4 GR5 BLK ZN
(Superseded to 539109100)

Note: For 967696102-00, 96769610201, 97045580100

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

Note: For all EXCEPT 967953702-00

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

Note: For 967696101-00, 967696001-00, 967696001-01

$3.49

$

In Stock, Qty 5

0

22

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: For 97045580100

$7.49

$

In Stock, Qty 20+

0

8

Husqvarna 539130793

STOP, SEAT - BLACK
(Superseded to 539130794)

$9.99

$

Usually ships in 3-10 days

0

11

Husqvarna 584990102

SUPPORT.RT.BLK

Note: For all EXCEPT 96795370100, 967953702-00, 97045580100

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 587613301

SPRING.COMPRESSION.SEAT.BLACK

$7.49

$

In Stock, Qty 20+

0

20

Husqvarna 539112034

HCS 7/16-20 X .75 GD 5

Note: For 967696102-00, 96795370100, 96769610201

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

Note: For 967953702-00

$3.49

$

In Stock, Qty 5

0

5

Husqvarna 584916802

MOUNT.SEAT.BELT.BLACK

Note: For all EXCEPT 967696101-00, 967696001-00, 967696001-01

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5
(Superseded to 525544002)

Note: For all EXCEPT 97045580100

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

Note: For all EXCEPT 97045580100

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

Note: For all EXCEPT 967696101-00, 967696001-00, 967696001-01

$7.49

$

In Stock, Qty 20+

0

10

Husqvarna 584809102

SUPPORT.SEAT. BLK

Note: For all EXCEPT 96795370100, 97045580100

$21.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 584990202

SUPPORT.LT.BLK

Note: For 96795370100, 967953702-00, 97045580100

$6.99

$

In Stock, only 4 left!

0

9

Husqvarna 532197802

SWITCH.INTRLCK.CLUTCH.

Note: For 967696101-00, 967696001-00, 967696001-01

$20.99

$

In Stock, Qty 20+

0

3

Husqvarna 539103247

SEAT LANYARD

$21.99

$

Usually ships in 3-10 days

0

25

Husqvarna 595086601

NUT HEXAGON 1/4-20 ST ZPB
(Superseded to 582478602)

Note: For 97045580100

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

Note: For all EXCEPT 967696101-00, 967696001-00, 967696001-01

$15.99

$

In Stock, Qty 12

0

28

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

Note: For 967953702-00

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 596238401

BOLT CUP HEAD SQUARE NECK BOLT

Note: For 97045580100

$3.99

$

In Stock, only 4 left!

0

26

Husqvarna 819091216

WASHER PM
(Superseded to 596204201)

Note: For all EXCEPT 97045580100

$3.99

$

In Stock, Qty 7

0

2

Husqvarna 539130359

SEAT BELT, RETRACTABLE
(Superseded to 596322701)

Note: For all EXCEPT 967696101-00, 967696001-00, 967696001-01

$143.99

$

Usually ships in 3-10 days

0

16

Husqvarna 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$5.99

$

In Stock, only 4 left!

0

20

Husqvarna 539124775

SCREW 7/16-20 X 1 HHB GR5

Note: For 967953702-00

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 593144402

Brackets

Note: For 96795370100, 97045580100

$23.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

Note: For all EXCEPT 97045580100

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 525544002

Bolts

Note: For 97045580100

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna 584990202

SUPPORT.LT.BLK

Note: For all EXCEPT 96795370100, 967953702-00

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 595316801

Bolts

Note: For 97045580100

$4.99

$

In Stock, only 2 left!

0
