MZ 61 (970467701-00) - Husqvarna 61" Zero-Turn Mower (2020-04) ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

61" Zero-Turn Mower

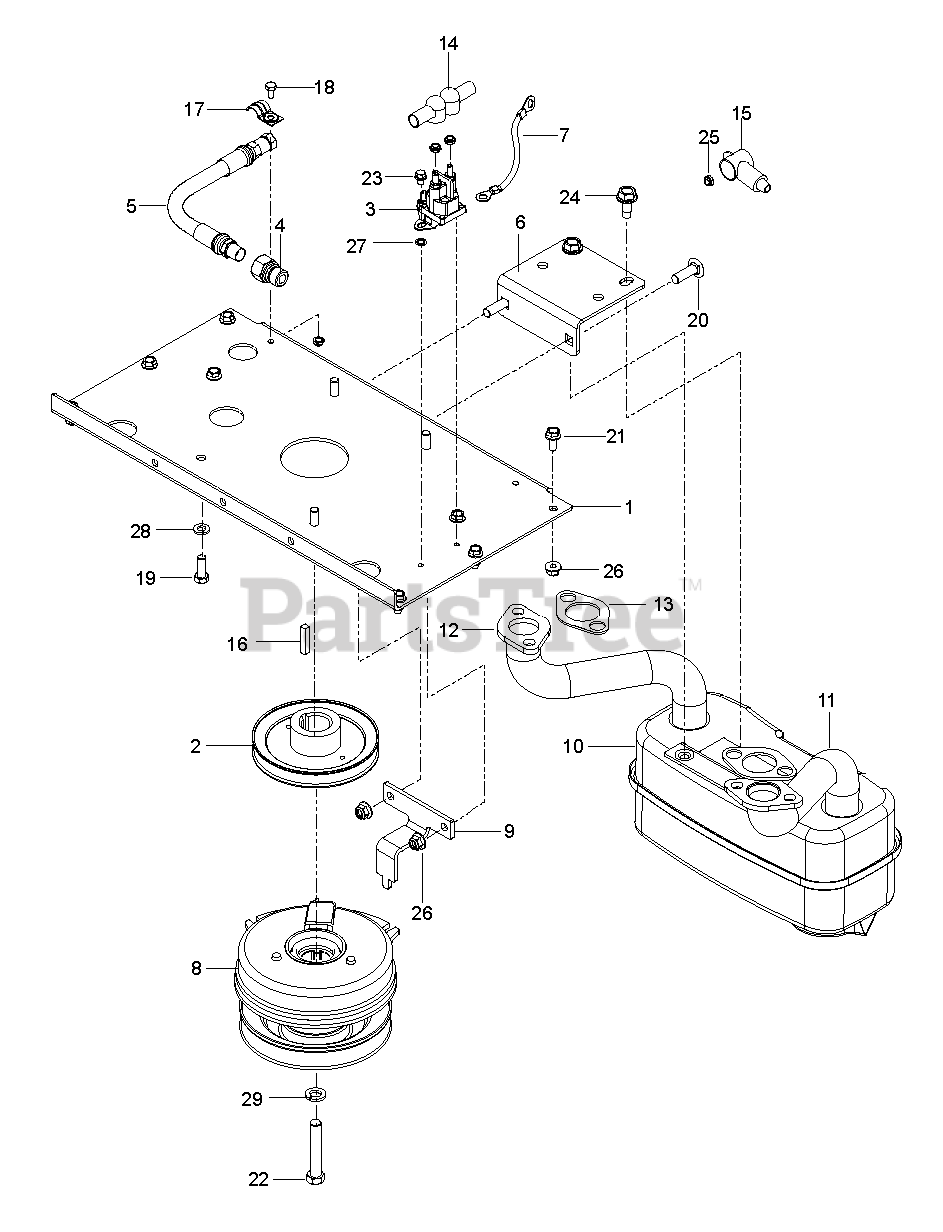

ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

  • Title

20

Husqvarna 596435701

Bolts

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 596564401

Bolts

$4.99

$

In Stock, Qty 10

0

2

Husqvarna 574811001

PULLEY, V, 1.125 BORE

$62.99

$

In Stock, Qty 10

0

24

Husqvarna 596135901

Bolts

$2.49

$

In Stock, only 2 left!

0

25

Husqvarna 596031501

Hardware
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

4

Husqvarna 522599002

ADAPTER, OIL DRAIN

$

$

Not available

17

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

27

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 574607001

CLUTCH 200 FT LB

$569.99

$

In Stock, only 1 left!

0

6

Husqvarna 575229902

BRKT, MUFFLER, BLK

$45.99

$

Usually ships in 3-10 days

0

22

Husqvarna 581332806

Bolts

$8.99

$

In Stock, Qty 20+

0

5

Husqvarna 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$37.99

$

Usually ships in 3-10 days

0

26

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$6.99

$

In Stock, Qty 20+

0

29

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, Qty 10

0

23

Husqvarna 596582701

Screws

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 10

0

16

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$28.99

$

In Stock, Qty 20+

0

9

Husqvarna 575017302

STOP, CLUTCH, BLACK
(Superseded to 575017305)

$20.99

$

Usually ships in 3-10 days

0

000000000

Note: Engine, Kawasaki FR730V-FS00-S 24 Hp. For engine replacement parts, see Kawasaki dealer.

$

$

Not available

10

Husqvarna 539131604

MUFFLER ASM TWIN

$51.99

$

In Stock, Qty 20+

0

1

Husqvarna 586651402

PLATE.PNT.ENGINE.E-DIP

$56.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102757

CABLE POSITIVE

$15.99

$

In Stock, only 1 left!

0

28

Husqvarna 596238701

Washers

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 596437001

Screws

$3.99

$

In Stock, Qty 14

0

13

Husqvarna 586839701

GASKET.EXHAUST.KAWASAKI
(Superseded to 532178151)

$2.49

$

In Stock, Qty 20+

0

21

Husqvarna 592858702

Bolts

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

$37.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539102757

CABLE POSITIVE

$15.99

$

In Stock, only 1 left!

0
