MZ 61 - Husqvarna 61" Zero-Turn Mower (Original) HYDRAULIC PUMP - MOTOR Parts Diagram

61" Zero-Turn Mower

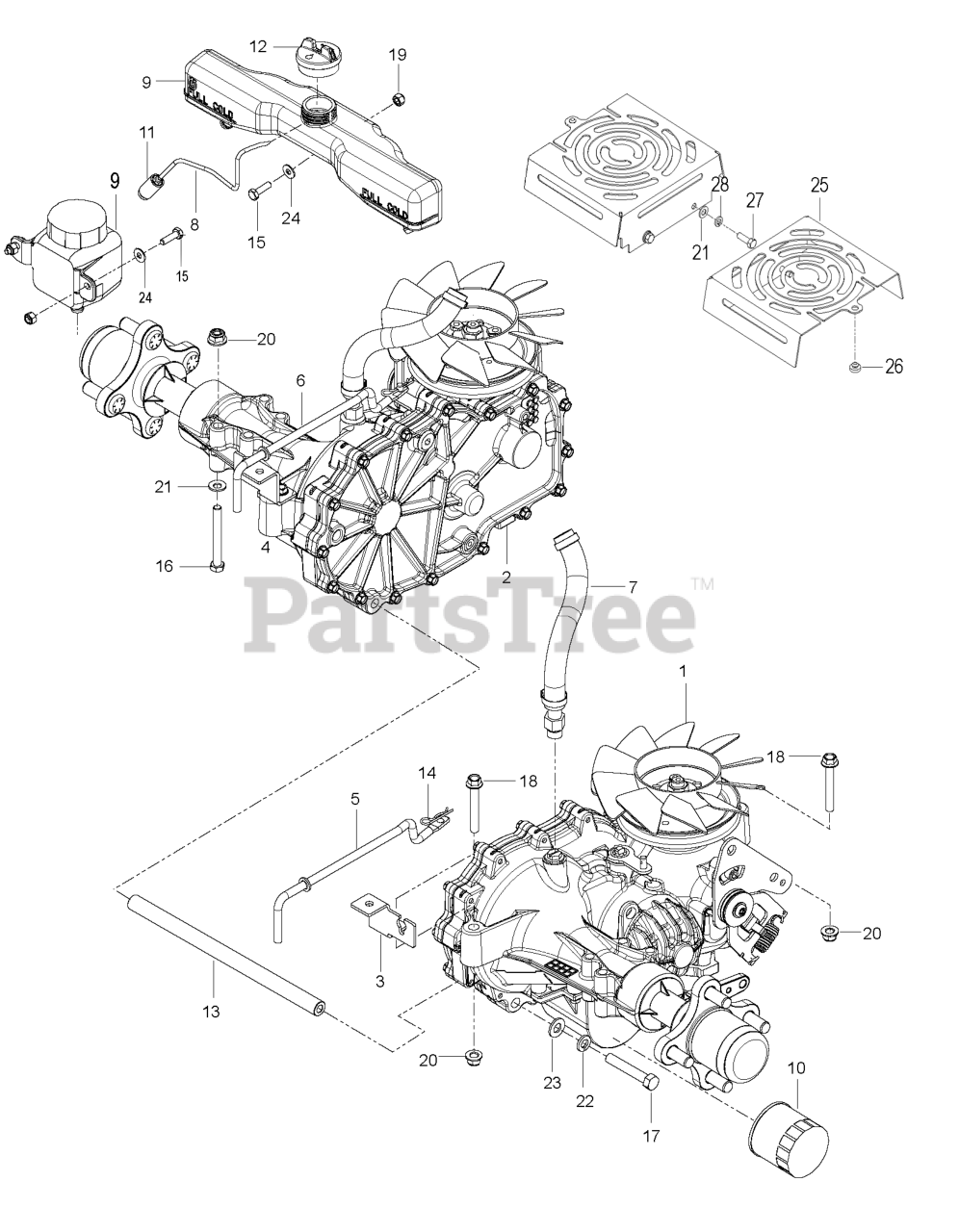

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title

10

Husqvarna 539113466

HG_FILTER, ZT4800 52114

$39.99

$

Usually ships in 3-10 days

0

11

Husqvarna 530095601

NEEDS DESCRIPTION

Note: 30 pcs, plastic bag of 530095646

$

$

Currently unavailable

8

Husqvarna 586067501

TANK HOSE

$41.99

$

In Stock, only 2 left!

0

22

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 574868501

TUBE, SPACER, 3400
(Superseded to 574868502)

$29.99

$

In Stock, only 1 left!

0

24

Husqvarna 539990055

WASHER 1/4 SAE
(Superseded to 596582301)

$3.99

$

In Stock, Qty 10

0

14

Husqvarna 539976988

HAIRPIN #2
(Superseded to 596580601)

$4.99

$

In Stock, Qty 9

0

17

Husqvarna 539108551

HCS 3/8-16X2-1/4 LOC PATCH GR8
(Superseded to 596436501)

$3.99

$

In Stock, Qty 7

0

2

Husqvarna 577227701

HG_TRANS ZT-3100 RT

$

$

Not available

27

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00
(Superseded to 596580801)

Note: For 967277501-01, 967277502-01, 967277502-00, 967277501-00

$3.99

$

In Stock, Qty 19

0

26

Husqvarna 539102587

GROMMET, BUMPER

Note: For 967277501-01, 967277502-01, 967277502-00, 967277501-00

$5.99

$

In Stock, Qty 6

0

21

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539101721

HCS 5/16C X 2-3/4

Note: For 967277502-00, 967277501-00

$4.99

$

In Stock, Qty 12

0

19

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

27

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

Note: For 967277502-00, 967277501-00

$3.99

$

In Stock, Qty 19

0

1

Husqvarna 577227702

HG_TRANS ZT-3100 LT

$

$

Not available

28

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 539131616

LINKAGE, LEFT BYPASS
(Superseded to 596500701)

$9.99

$

Usually ships in 3-10 days

0

16

Husqvarna 874780544

BOLT HEX
(Superseded to 596218601)

Note: For 967277503-00, 967277501-01, 967277502-01, 967277502-00, 967277501-00

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 575017102

BRACKET.TRANS.LT.BLACK
(Superseded to 593279002)

$5.99

$

In Stock, Qty 10

0

18

Husqvarna 574233801

HHFS 5/16-18 X 2.25 GD 5
(Superseded to 574233802)

$3.99

$

In Stock, only 1 left!

0

25

Husqvarna 584994202

SHIELD FAN BLACK

Note: For 967277501-01, 967277502-01, 967277502-00, 967277501-00

$14.99

$

Usually ships in 3-10 days

0

11

Husqvarna 530095646

FUEL PICK-UP ASSY

$7.49

$

In Stock, Qty 20+

0

20

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

15

Husqvarna 539990643

HCS 1/4-20X7/8 GR5
(Superseded to 596565401)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539131618

LINKAGE, RIGHT BYPASS
(Superseded to 596501901)

$5.99

$

In Stock, only 1 left!

0

9

Husqvarna 585318201

TANK EXPANSION W/CAP

Note: For 967277503-00, 967277501-01, 967277502-01, 967277502-00, 967277501-00

$33.99

$

In Stock, Qty 20+

0

4

Husqvarna 575017002

BRACKET, TRANS, RT BLACK
(Superseded to 593278902)

$5.99

$

In Stock, Qty 11

0

7

Husqvarna 574892101

HOSE ASSY, EXPANSION

$71.99

$

In Stock, Qty 8

0

9

Husqvarna 574811301

TANK.EXPANSION.350ML 71328

Note: For 967277502-00, 967277501-00

$77.99

$

In Stock, Qty 15

0

12

Husqvarna 586072701

CAP EXPANSION W/SEAL

$3.99

$

In Stock, Qty 7

0
