MZ 61 - Husqvarna 61" Zero-Turn Mower (Original) STEERING Parts Diagram

61" Zero-Turn Mower

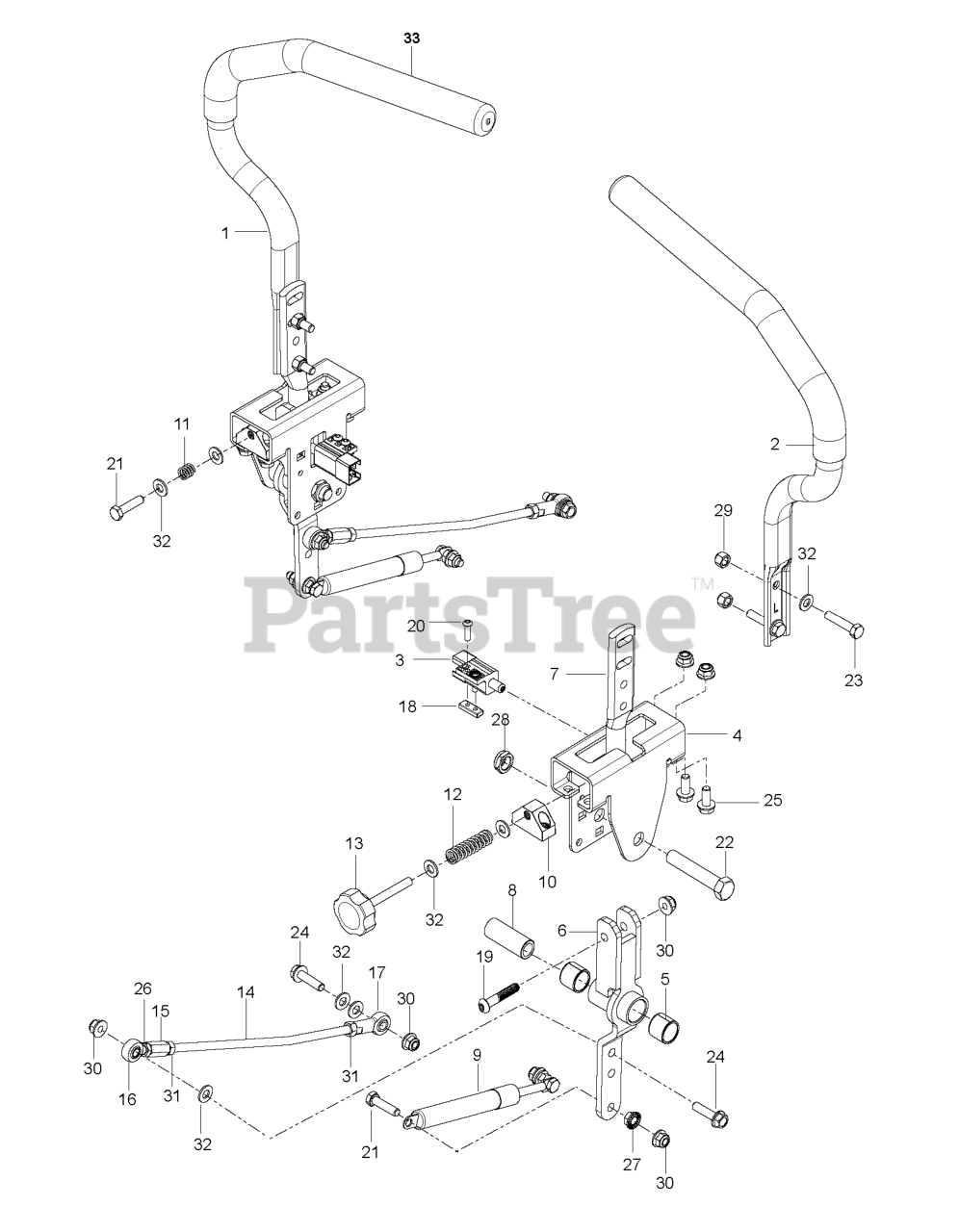

STEERING Parts Diagram

  • Title

28

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$3.99

$

In Stock, only 2 left!

0

23

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD
(Superseded to 596582201)

$3.99

$

In Stock, only 2 left!

0

24

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5
(Superseded to 525544002)

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$23.99

$

In Stock, Qty 20+

0

8

Husqvarna 584927201

SPACER.PIVOT.CONTROL

$5.99

$

In Stock, Qty 16

0

5

Husqvarna 532438282

BEARING.PT.750

Note: For 967277503-00

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

$3.99

$

In Stock, only 4 left!

0

31

Husqvarna 539990223

NUT 5/16F
(Superseded to 596040901)

$3.99

$

In Stock, Qty 10

0

1

Husqvarna 539132009

LEVER.DRIVE.W/GRIP.RIGHT

Note: For 967277502-00

$65.99

$

In Stock, Qty 18

0

17

Husqvarna 539115729

RH ROD END
(Superseded to 579764601)

Note: For 967277502-00

$15.99

$

In Stock, Qty 9

0

26

Husqvarna 539991073

NUT 5/16F LEFTHAND
(Superseded to 596584101)

$3.99

$

In Stock, only 2 left!

0

33

Husqvarna 539130894

GRIP - DRIVE LEVER 12"

Note: For 967277501-01, 967277502-01, 967277502-00

$8.49

$

In Stock, Qty 18

0

1

Husqvarna 590090803

TUBE.LEVER.CONTROL.ZTR.RT.428
(Superseded to 598851703)

Note: For 967277503-00

$59.99

$

In Stock, only 2 left!

0

13

Husqvarna 539131799

KNOB
(Superseded to 596400701)

$11.99

$

In Stock, Qty 5

0

32

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 576850402

SCREW 5/16-18 X 1 3/4 BTN-HD

$4.99

$

In Stock, Qty 5

0

7

Husqvarna 577420001

LEVER.HANDLE MOUNT
(Superseded to 577420002)

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 579764601

JOINT.HEIM.FEML.5/16.RH.THREAD

Note: For 967277503-00

$15.99

$

In Stock, Qty 9

0

14

Husqvarna 574811401

ROD, CONTROL
(Superseded to 574811402)

$5.99

$

In Stock, Qty 15

0

4

Husqvarna 585124705

BRACKET.CONTROLS.ZTR.X431

$20.99

$

In Stock, only 1 left!

0

29

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 581223001

PLATE NUT ZTR
(Superseded to 581223002)

$3.99

$

In Stock, only 4 left!

0

5

Husqvarna 539438282

BEARING
(Superseded to 539131518)

Note: For 967277501-01, 967277502-01, 967277502-00

$13.99

$

In Stock, Qty 12

0

16

Husqvarna 588692502

ROD.END.MALE.LH.THREAD
(Superseded to 539116690)

$14.99

$

In Stock, only 1 left!

0

9

Husqvarna 539102720

DAMPENER
(Superseded to 548932401)

$95.99

$

In Stock, Qty 18

0

6

Husqvarna 587187701

CONTROL.WELDMENT.RZ

$22.99

$

In Stock, Qty 8

0

25

Husqvarna 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 581437501

BLOCK TRACKING CONTROL ZTR
(Superseded to 581437502)

$6.99

$

In Stock, Qty 6

0

12

Husqvarna 576850301

SPRING COMPRESSION 2.0

$4.99

$

In Stock, only 2 left!

0

27

Husqvarna 539990585

NUT 5/16C WHIZ
(Superseded to 596039201)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 595305701)

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 539102845

SPRING

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 539132010

LEVER.DRIVE.W/GRIP.LEFT
(Superseded to 598851704)

Note: For 967277502-00

$59.99

$

In Stock, Qty 20+

0

15

Husqvarna 539116689

ROD END COUPLER
(Superseded to 596718601)

$3.99

$

In Stock, Qty 11

0

30

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 874780844

HCS 1/2-13 X 2-3/4 GD 5 ZD
(Superseded to 596434301)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 590090804

TUBE.LEVER.CONTROL.ZTR.LT.428
(Superseded to 598851704)

Note: For 967277503-00

$59.99

$

In Stock, Qty 20+

0
