MZ 61 - Husqvarna 61" Zero-Turn Mower (Original) WHEELS & TIRES Parts Diagram

61" Zero-Turn Mower

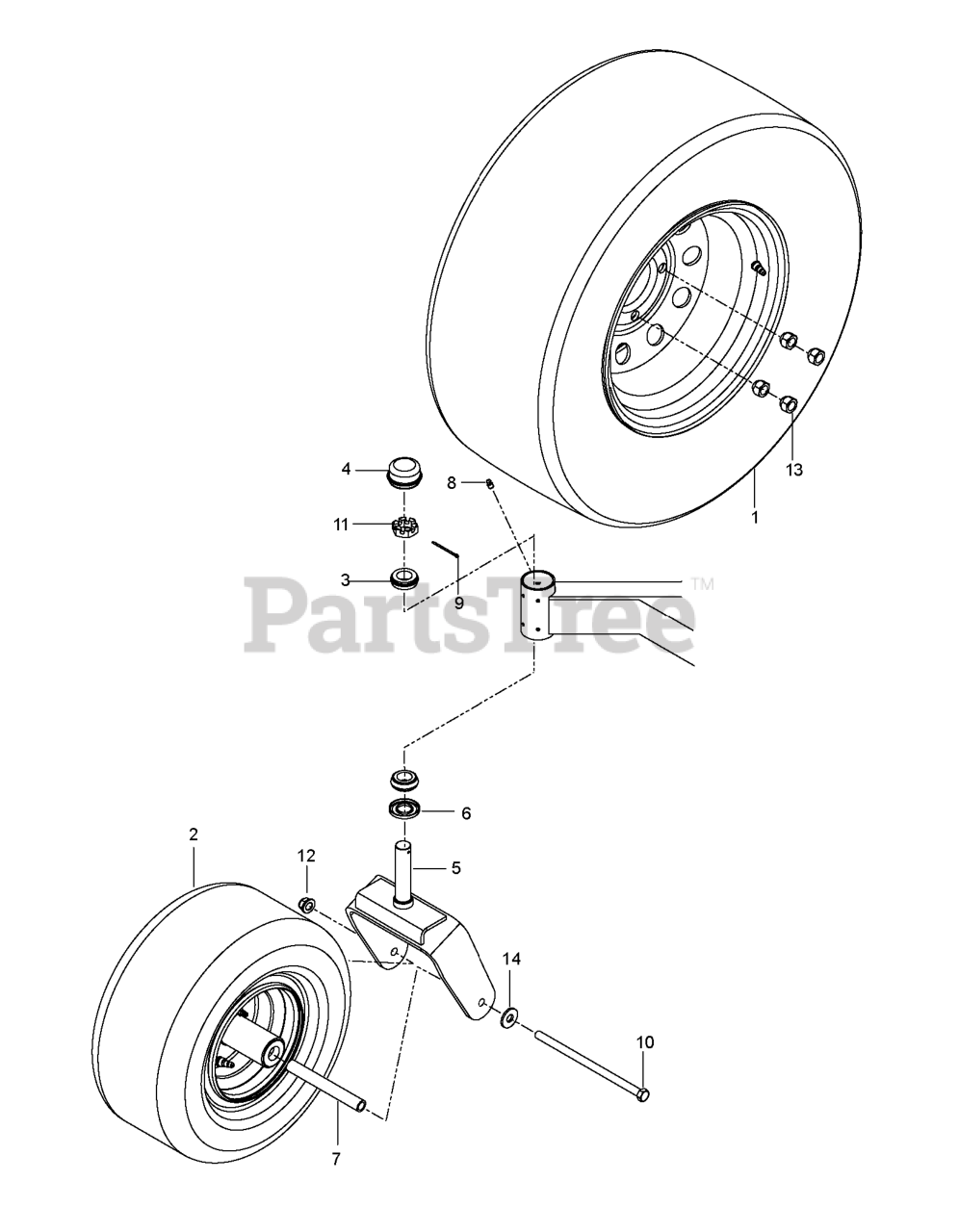

WHEELS & TIRES Parts Diagram

  • Title

7

Husqvarna 575334901

SPACER, PIVOT

$21.99

$

In Stock, Qty 5

0

13

Husqvarna 587653902

NUT.1/2-20.UNF-2B.GR.8.YL
(Superseded to 587653903)

Note: For 967277503-00

$4.99

$

In Stock, Qty 14

0

3

Husqvarna 539102543

TAPERED ROLLER BRG

$23.99

$

In Stock, Qty 7

0

10

Husqvarna 539105517

HEX SCREW 1/2-13 X 9.5 GR5
(Superseded to 594946501)

$7.49

$

In Stock, Qty 8

0

12

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

Note: For 967277503-00

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

Note: For 967277501-01, 967277502-01, 967277502-00, 967277501-00

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 586921902

FORK.CASTER.ASM.PNT.668

$56.99

$

In Stock, only 2 left!

0

6

Husqvarna 539102851

SEAL

$8.49

$

In Stock, Qty 19

0

4

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 539102852

NUT 1"C HEX SLOTTED
(Superseded to 596241501)

$14.99

$

In Stock, only 4 left!

0

13

Husqvarna 539101173

LUG NUT 1/2F
(Superseded to 587653903)

Note: For 967277501-01, 967277502-01, 967277502-00, 967277501-00

$4.99

$

In Stock, Qty 14

0

2

Husqvarna 581199501

TIRE.ASSEM.CASTER.13X6.5-6.SIL

$239.99

$

In Stock, Qty 12

0

Husqvarna 582746301

TIRE.22X10-10.K513.SERVICE

$239.99

$

In Stock, only 1 left!

0

14

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.
(Superseded to 595316401)

$3.99

$

In Stock, Qty 18

0

1

Husqvarna 580747001

WHEEL.ASSEM.22X10-10.SILVE.ZTR

$299.99

$

In Stock, only 3 left!

0

8

Husqvarna 539101474

ZERK
(Superseded to 596623501)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available
