MZ - Bad Boy Zero-Turn Mower (2010) 48" Deck, Spindle, & Idler Assembly Parts Diagram

Zero-Turn Mower

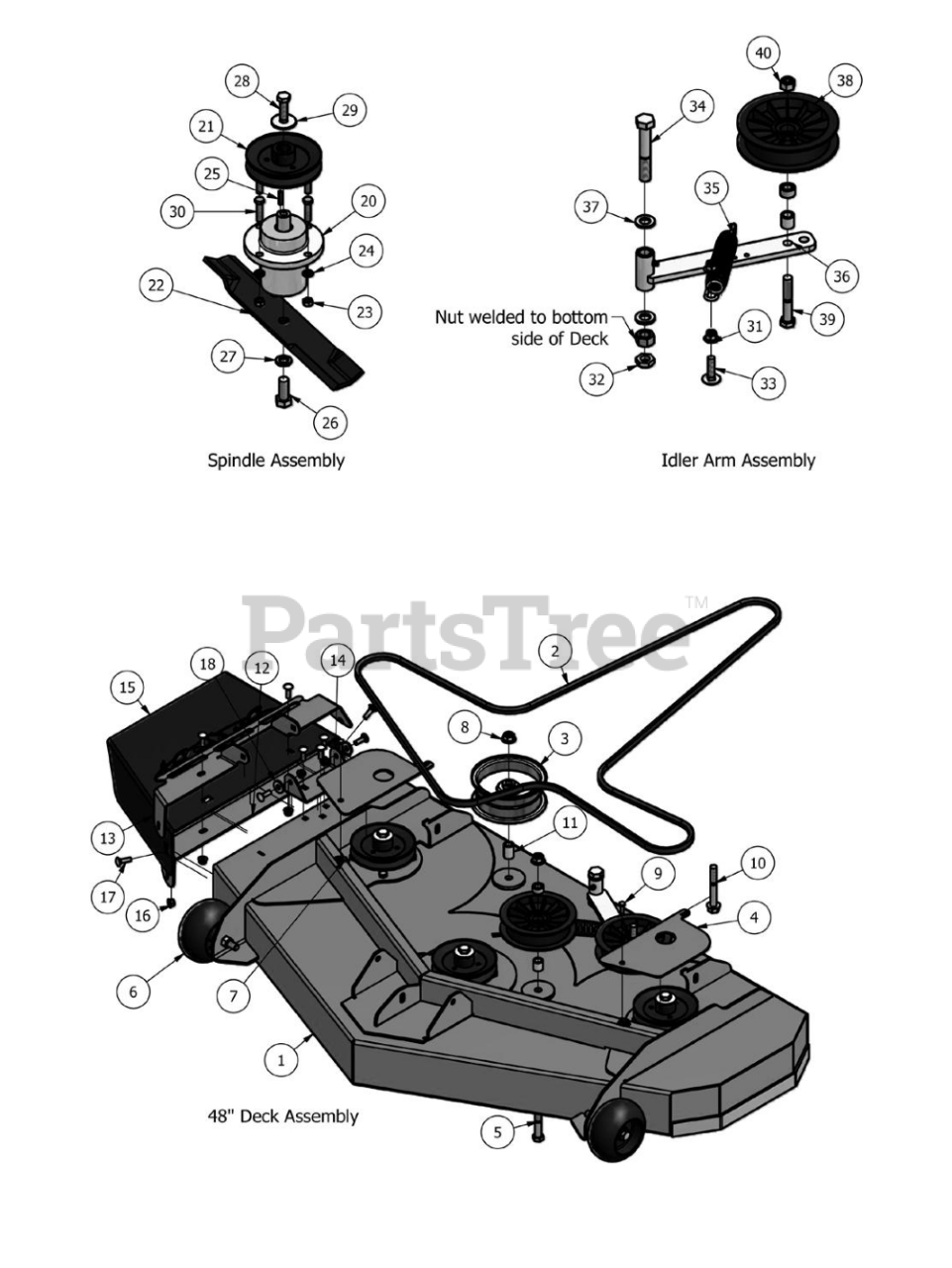

48" Deck, Spindle, & Idler Assembly Parts Diagram

  • Title

1

Bad Boy 060-2100-00

Mz 48" Deck

$603.99

$

Usually ships in 4-7 days

0

2

Bad Boy 041-6027-00

B128 Deck Belt

$85.99

$

In Stock, Qty 8

0

3

Bad Boy 033-5001-00

5 3/4" Deck Idler Pulley

$67.99

$

Usually ships in 4-7 days

0

4

Bad Boy 014-4850-00

MZ Pulley Cover

$30.99

$

Usually ships in 0 days

0

5

Bad Boy 018-6036-00

1/2 x 2-1/2 Hex Bolt

$1.99

$

In Stock, only 2 left!

0

6

Bad Boy 022-5234-00

Anti-Scalp Rollers

$

$

Not available

7

Bad Boy 013-0054-00

1/4-20 Cage Nut

$1.49

$

Usually ships in 4-7 days

0

8

Bad Boy 013-8050-00

1/2-13 Nylon Insert Flangenut Zinc Orange Nylon

$1.99

$

In Stock, Qty 20+

0

9

Bad Boy 018-8052-00

1/4-20 x 3/4 Grade 5 Hex bolts Zinc

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 018-2018-00

1/2 x 3-1/2 Flange Bolt - Grade 8

$3.99

$

In Stock, only 2 left!

0

11

Bad Boy 025-5337-00

1-1/8 Spacer

$4.99

$

In Stock, only 2 left!

0

12

Bad Boy 039-4890-00

MZ Discharge Chute Bracket (Bottom)

$37.99

$

Usually ships in 4-7 days

0

13

Bad Boy 039-4891-00

MZ Discharge Chute Bracket (Top)

$37.99

$

Usually ships in 4-7 days

0

14

Bad Boy 206-6020-00

MZ Discharge Chute Hanger

$30.99

$

Usually ships in 4-7 days

0

15

Bad Boy 210-6015-00

Discharge Chute MZ

$56.99

$

Usually ships in 4-7 days

0

16

Bad Boy 013-8049-00

5/16-18 Nylon Insert Flange Nut Zinc Orange Nylon

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 018-8065-00

5/16-18 x 1 Carriage Bolts Zinc

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 019-6042-00

.360ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

19

Bad Boy 022-5234-98

Anti-Scalp Roller Assembly

$20.99

$

Usually ships in 4-7 days

0

20

Bad Boy 037-2000-00

Spindle and Pulley Assembly MZ Model

$232.99

$

In Stock, Qty 17

0

21

Bad Boy 033-4820-00

MZ Deck Pulley

$33.99

$

In Stock, Qty 13

0

22

Bad Boy 038-4826-00

48" High Lift Fuzion Blade MZ

$24.99

$

In Stock, Qty 20+

0

23

Bad Boy 013-6014-00

3/8-16 Hex Nuts Zinc

$0.99

$

In Stock, only 4 left!

0

24

Bad Boy 019-5037-00

3/8 Lockwasher Zinc

$0.99

$

In Stock, only 2 left!

0

25

Bad Boy 042-0010-00

3/16 x 1 Square Key

$4.99

$

In Stock, only 4 left!

0

26

Bad Boy 018-6020-00

5/8-11 X 1-1/2 GR 8 Hex Bolts Zinc

$2.99

$

In Stock, Qty 20+

0

27

Bad Boy 019-5007-00

5/8 Lock Washer Zinc

$0.99

$

In Stock, only 1 left!

0

28

Bad Boy 018-6019-00

1/2-20 x 1-1/2 Grade 5 Hex Bolt Zinc

$1.49

$

In Stock, Qty 7

0

29

Bad Boy 019-6019-00

Spring Blade Cupped Washer

$9.99

$

Usually ships in 4-7 days

0

30

Bad Boy 018-6012-00

3/8-16 x 1-1/2 GR5 Hex Bolt

$0.99

$

In Stock, Qty 20+

0

31

Bad Boy 013-5202-00

3/8 Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

32

Bad Boy 013-5301-00

5/8-11 Nylon Insert Jam Locknut Zinc

$0.99

$

In Stock, only 2 left!

0

33

Bad Boy 018-4706-00

3/8 x 1-1/2 Carriage Bolt

$1.99

$

Usually ships in 4-7 days

0

34

Bad Boy 018-5311-00

5/8-11 X 4 GR 5 Hex Bolts Zinc

$4.49

$

In Stock, only 1 left!

0

35

Bad Boy 034-2009-00

Deck Idler Spring MZ

$19.99

$

In Stock, Qty 15

0

36

Bad Boy 039-6945-00

Deck Idler Bracket

$43.99

$

In Stock, only 2 left!

0

37

Bad Boy 019-6017-00

.630 IDX 1.122 OD X .142 THK Flat Washer Nylon

$0.99

$

In Stock, only 4 left!

0

38

Bad Boy 033-2000-00

Plastic Idler Pulley (Mini Z Models)

$

$

Not available

39

Bad Boy 018-6036-00

1/2 x 2-1/2 Hex Bolt

$1.99

$

In Stock, only 2 left!

0

40

Bad Boy 013-6037-00

1/2-12 Nylon Locknut Zinc Orange Nylon

$1.49

$

Usually ships in 4-7 days

0
