MZ - Bad Boy Zero-Turn Mower (2010) Drive Arms Parts Diagram

Zero-Turn Mower

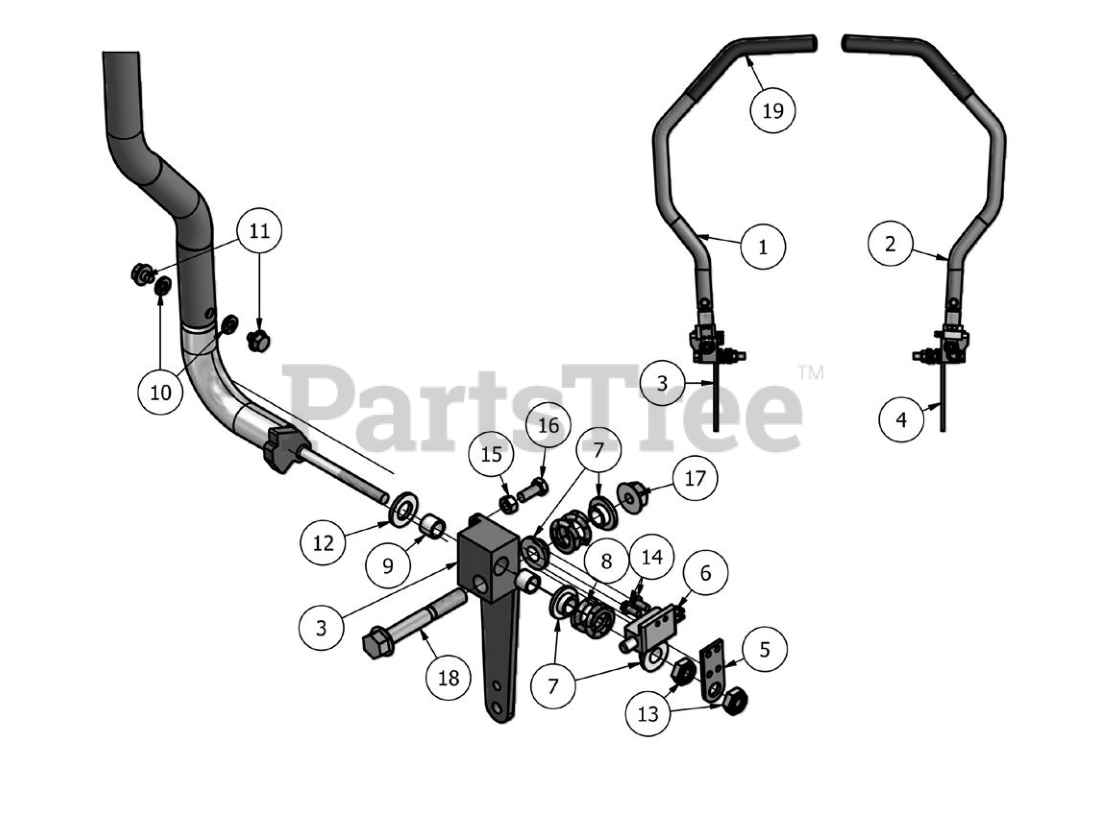

Drive Arms Parts Diagram

  • Title

1

Bad Boy 031-8821-00

ZT Direction Steering Arm (Left)

$

$

Not available

2

Bad Boy 031-8822-00

Direction Steering Arm (Right)

$

$

Not available

3

Bad Boy 027-9000-00

Drive Arm Lever Housing (Left)

$45.99

$

Usually ships in 4-7 days

0

4

Bad Boy 027-9001-00

Drive Arm Lever Housing (Right)

$45.99

$

Usually ships in 4-7 days

0

5

Bad Boy 039-1125-00

MZ Switch Bracket

$5.49

$

Usually ships in 4-7 days

0

6

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 13

0

7

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

In Stock, only 4 left!

0

8

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

9

Bad Boy 032-8024-00

.507 ID Nylon Bushing

$0.99

$

Usually ships in 4-7 days

0

10

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 018-2007-00

5/16" x 1/2" Flange Bolt

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

13

Bad Boy 013-6052-00

1/2-20 Nylon Insert Jam Locknut Zinc Orange Zinc

$0.99

$

Usually ships in 4-7 days

0

14

Bad Boy 018-1080-00

12-24 x 1/2 Hex Washer Head bolt

$2.49

$

Usually ships in 4-7 days

0

15

Bad Boy 013-8043-00

5/16-18 Hex Nuts Zinc

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 018-8063-00

5/16-18 x 3/4 Grade 5 Hex bolt Zinc

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 013-8050-00

1/2-13 Nylon Insert Flangenut Zinc Orange Nylon

$1.99

$

In Stock, Qty 20+

0

18

Bad Boy 018-2018-00

1/2 x 3-1/2 Flange Bolt - Grade 8

$3.99

$

In Stock, only 2 left!

0

19

Bad Boy 069-4007-00

Rubber Steering Arm

$

$

Currently unavailable
