MZ - Bad Boy Zero-Turn Mower (2010) Engine - Briggs Intek 21HP Parts Diagram

Zero-Turn Mower

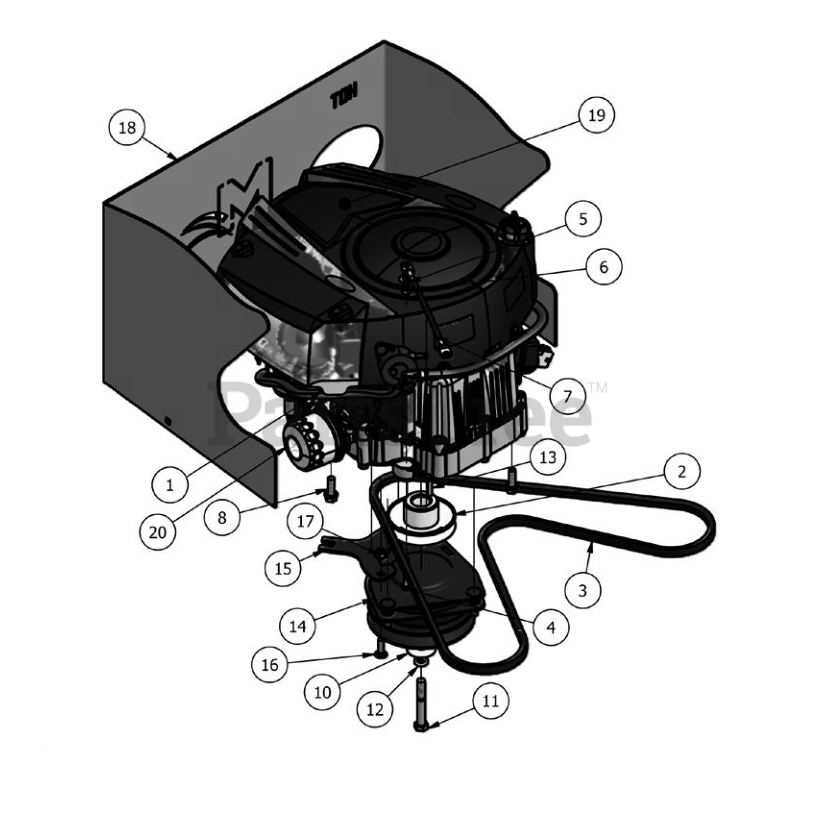

Engine - Briggs Intek 21HP Parts Diagram

  • Title

1

Bad Boy 015-0021-00

21Hp Briggs Intek

$1595.99

$

Usually ships in 0 days

0

2

Bad Boy 033-2010-00

3-3/4" Motor Pulley

$33.99

$

In Stock, only 2 left!

0

3

Bad Boy 041-6400-00

Pump Belt for ZT

$62.99

$

In Stock, Qty 20+

0

4

Bad Boy 018-8059-00

5/16-18 x 1-3/4 Grade 5 Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

5

Bad Boy 019-8051-00

5/16 Lock Washer Zinc

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 013-8043-00

5/16-18 Hex Nuts Zinc

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 064-0030-00

Ground Cable

$19.99

$

Usually ships in 4-7 days

0

8

Bad Boy 018-5051-00

3/8 x 1-1/8 Hex Washer Head Engine Bolt

$

$

Not available

9

Bad Boy 019-8044-00

5/16 USS Flat Washer Zinc

$0.99

$

In Stock, Qty 20+

0

10

Bad Boy 019-6019-00

Spring Blade Cupped Washer

$9.99

$

Usually ships in 4-7 days

0

11

Bad Boy 018-0006-00

MZ Crank Shaft Bolt

$

$

Currently unavailable

12

Bad Boy 019-8053-00

7/16 Lock Washer Zinc

$3.49

$

Usually ships in 4-7 days

0

13

Bad Boy 042-6030-00

1/4 x 1 Square Key

$4.99

$

In Stock, Qty 8

0

14

Bad Boy 070-3000-00

MZ Clutch

$319.99

$

Usually ships in 4-7 days

0

15

Bad Boy 057-5920-00

MZ Clutch Holder

$22.99

$

Usually ships in 4-7 days

0

16

Bad Boy 018-8065-00

5/16-18 x 1 Carriage Bolts Zinc

$0.99

$

In Stock, only 2 left!

0

17

Bad Boy 013-8049-00

5/16-18 Nylon Insert Flange Nut Zinc Orange Nylon

$0.99

$

Usually ships in 4-7 days

0

18

Bad Boy 026-0100-00

Engine Rear Plate

$

$

Currently unavailable

19

Bad Boy 063-4026-00

Air Filter 21Hp MZ

$41.99

$

In Stock, only 2 left!

0

20

Bad Boy 063-4025-00

Oil Filter 21Hp MZ

$

$

Not available
