MZ - Bad Boy Zero-Turn Mower (2010) Fuel Tanks & Frame Parts Diagram

Zero-Turn Mower

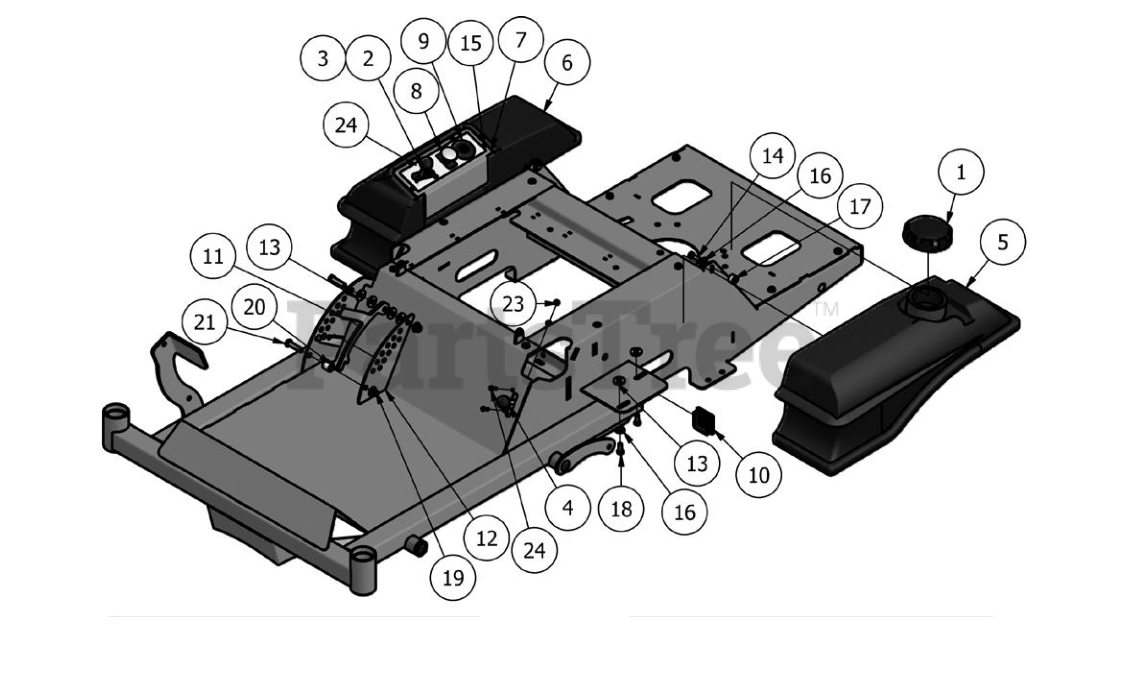

Fuel Tanks & Frame Parts Diagram

  • Title

1

Bad Boy 066-8076-00

Fuel Cap

$34.99

$

In Stock, only 3 left!

0

2

Bad Boy 055-3000-00

Throttle Lever W/Choke 26Hp

$28.99

$

Usually ships in 4-7 days

0

3

Bad Boy 055-3021-00

Throttle Lever W/Choke 21Hp

$51.99

$

Usually ships in 4-7 days

0

4

Bad Boy 064-8057-00

Brake Lever

$53.99

$

Usually ships in 4-7 days

0

5

Bad Boy 067-2000-00

3 Gallon Fuel Tank

$

$

Not available

6

Bad Boy 067-2001-00

Fender Console

$227.99

$

Usually ships in 4-7 days

0

7

Bad Boy 079-0050-00

MZ Control Panel

$30.99

$

Usually ships in 0 days

0

8

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

9

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

10

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

11

Bad Boy 014-9000-00

2x2 Square Plug

$2.99

$

Usually ships in 4-7 days

0

12

Bad Boy 031-1050-00

Deck Level Lock

$33.99

$

Usually ships in 4-7 days

0

13

Bad Boy 026-2020-00

MZ Height Indicator Plate

$15.99

$

Usually ships in 4-7 days

0

14

Bad Boy 019-6042-00

.360ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

15

Bad Boy 018-2007-00

5/16-18 x 1 Grade 5 Hex bolt Zinc

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 018-2010-00

10-32 x 3/8 Button Socket C/S 18-8 SS

$0.99

$

In Stock, only 4 left!

0

17

Bad Boy 019-8051-00

5/16 Lock Washer Zinc

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 025-2025-00

MZ Tank Spacer

$1.99

$

Usually ships in 4-7 days

0

19

Bad Boy 018-8063-00

5/16-18 x 3/4 Grade 5 Hex bolt Zinc

$0.99

$

Usually ships in 4-7 days

0

20

Bad Boy 013-5202-00

3/8 Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

21

Bad Boy 025-5203-00

3/40D x 1/2ID x 3/4 Spacer

$3.49

$

In Stock, Qty 7

0

22

Bad Boy 018-6012-00

3/8-16 x 1-1/2 GR5 Hex Bolt

$0.99

$

In Stock, Qty 20+

0

23

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

Usually ships in 4-7 days

0

24

Bad Boy 018-8057-00

10-24 x 3/4 Button Socket C/S 18-8 SS

$0.99

$

Usually ships in 4-7 days

0
