MZ - Bad Boy Zero-Turn Mower (2010) Seat & Frame Assembly Parts Diagram

Zero-Turn Mower

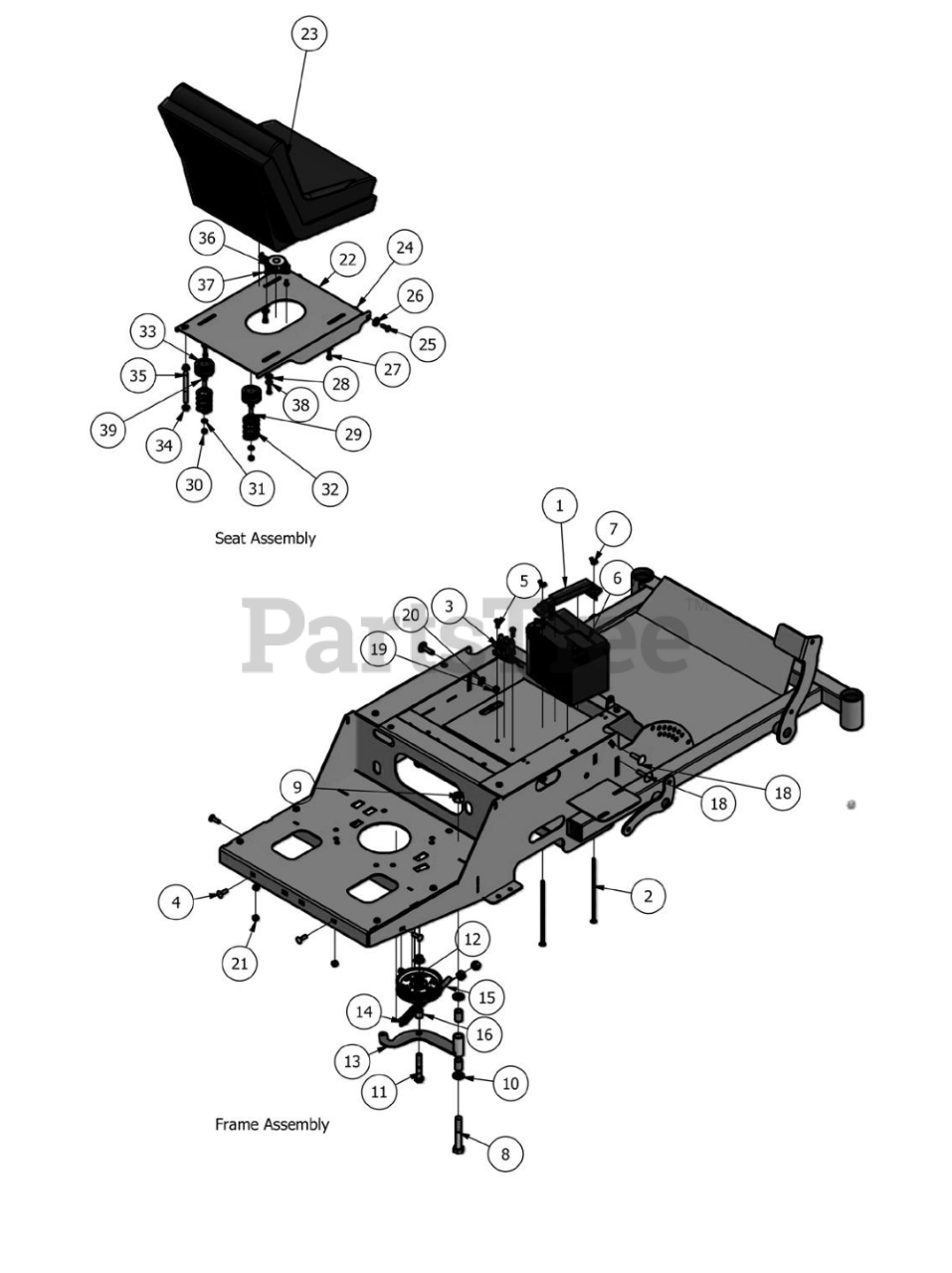

Seat & Frame Assembly Parts Diagram

  • Title

1

Bad Boy 043-8929-98

Battery Hold Down

$

$

Currently unavailable

2

Bad Boy 018-8050-00

1/4-20 x 8 Carriage Bolt Zinc

$1.99

$

In Stock, Qty 8

0

3

Bad Boy 108-5349-00

ZT Solenoid

$31.99

$

Usually ships in 4-7 days

0

4

Bad Boy 018-8065-00

5/16-18 x 1 Carriage Bolts Zinc

$0.99

$

In Stock, only 2 left!

0

5

Bad Boy 018-8052-00

1/4-20 x 3/4 Grade 5 Hex bolts Zinc

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 068-2000-00

Battery (MZ)

$

$

Currently unavailable

7

Bad Boy 013-8051-00

1/4-20 Wing Nut Zinc

$0.99

$

Usually ships in 4-7 days

0

8

Bad Boy 018-5311-00

5/8-11 X 4 GR 5 Hex Bolts Zinc

$4.49

$

In Stock, only 1 left!

0

9

Bad Boy 013-7021-00

5/8-11 Nylon Insert Locknut Zinc Orange Nylon

$1.49

$

In Stock, only 2 left!

0

10

Bad Boy 019-6017-00

.630 ID X 1.122 OD X .142 THK Flat Washer Nylon

$0.99

$

In Stock, only 4 left!

0

11

Bad Boy 018-6036-00

1/2 x 2-1/2 Hex Bolt

$1.99

$

In Stock, only 2 left!

0

12

Bad Boy 033-6001-00

4-3/4 Idler Pulley

$33.99

$

In Stock, Qty 20+

0

13

Bad Boy 039-7000-00

MZ Idler Arm Bracket

$40.99

$

Usually ships in 4-7 days

0

14

Bad Boy 034-9050-00

Deck Idler Spring MZ

$18.99

$

In Stock, only 2 left!

0

15

Bad Boy 018-2004-00

Spring Tensioner

$13.99

$

In Stock, only 4 left!

0

16

Bad Boy 025-5203-00

3/40D x 1/2ID x 3/4 Spacer

$3.49

$

In Stock, Qty 7

0

17

Bad Boy 024-6034-00

1/4" Drive in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 018-4706-00

3/8 x 1-1/2 Carriage Bolt

$1.99

$

Usually ships in 4-7 days

0

19

Bad Boy 013-6014-00

3/8-16 Hex Nuts Zinc

$0.99

$

In Stock, only 4 left!

0

20

Bad Boy 019-5029-00

3/8 USS Flat Washer Zinc

$0.99

$

In Stock, only 2 left!

0

21

Bad Boy 013-8047-00

5/16-18 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

In Stock, only 2 left!

0

22

Bad Boy 026-2010-00

MZ Seat Plate

$105.99

$

Usually ships in 4-7 days

0

23

Bad Boy 071-8095-00

Gray Bucket Seat with no Arms/Sides

$

$

Not available

24

Bad Boy 013-8049-00

5/16-18 Nylon Insert Flange Nut Zinc Orange Nylon

$0.99

$

Usually ships in 4-7 days

0

25

Bad Boy 018-8065-00

5/16-18 x 1 Carriage Bolts Zinc

$0.99

$

In Stock, only 2 left!

0

26

Bad Boy 019-6042-00

.360ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

27

Bad Boy 018-2007-00

5/16-18 x 1 Grade 5 Hex bolt Zinc

$0.99

$

In Stock, only 2 left!

0

28

Bad Boy 019-8044-00

5/16 USS Flat Washer Zinc

$0.99

$

In Stock, Qty 20+

0

29

Bad Boy 019-5029-00

3/8 USS Flat Washer Zinc

$0.99

$

In Stock, only 2 left!

0

30

Bad Boy 013-6014-00

3/8-16 Hex Nuts Zinc

$0.99

$

In Stock, only 4 left!

0

31

Bad Boy 019-5037-00

3/8 Lockwasher Zinc

$0.99

$

In Stock, only 2 left!

0

32

Bad Boy 034-8045-00

Seat Spring

$21.99

$

Usually ships in 4-7 days

0

33

Bad Boy 014-8047-00

Seat Bumper

$2.49

$

In Stock, only 2 left!

0

34

Bad Boy 013-5300-00

1/2-13 Hex flange Nut Zinc w/Serrations

$0.99

$

In Stock, Qty 6

0

35

Bad Boy 044-4000-00

Seat Post

$7.99

$

Usually ships in 4-7 days

0

36

Bad Boy 071-8061-00

Seat Saftey Switch

$20.99

$

In Stock, only 2 left!

0

37

Bad Boy 030-7041-00

1/4-20 x 1/4 Hex Washer Head Bolt Slot Type

$0.99

$

Usually ships in 4-7 days

0

38

Bad Boy 019-8051-00

5/16 Lock Washer Zinc

$0.99

$

In Stock, only 2 left!

0

39

Bad Boy 018-5040-00

3/8-16 x 1-1/4 GR 5 Hex Bolt Zinc

$0.99

$

In Stock, Qty 9

0
