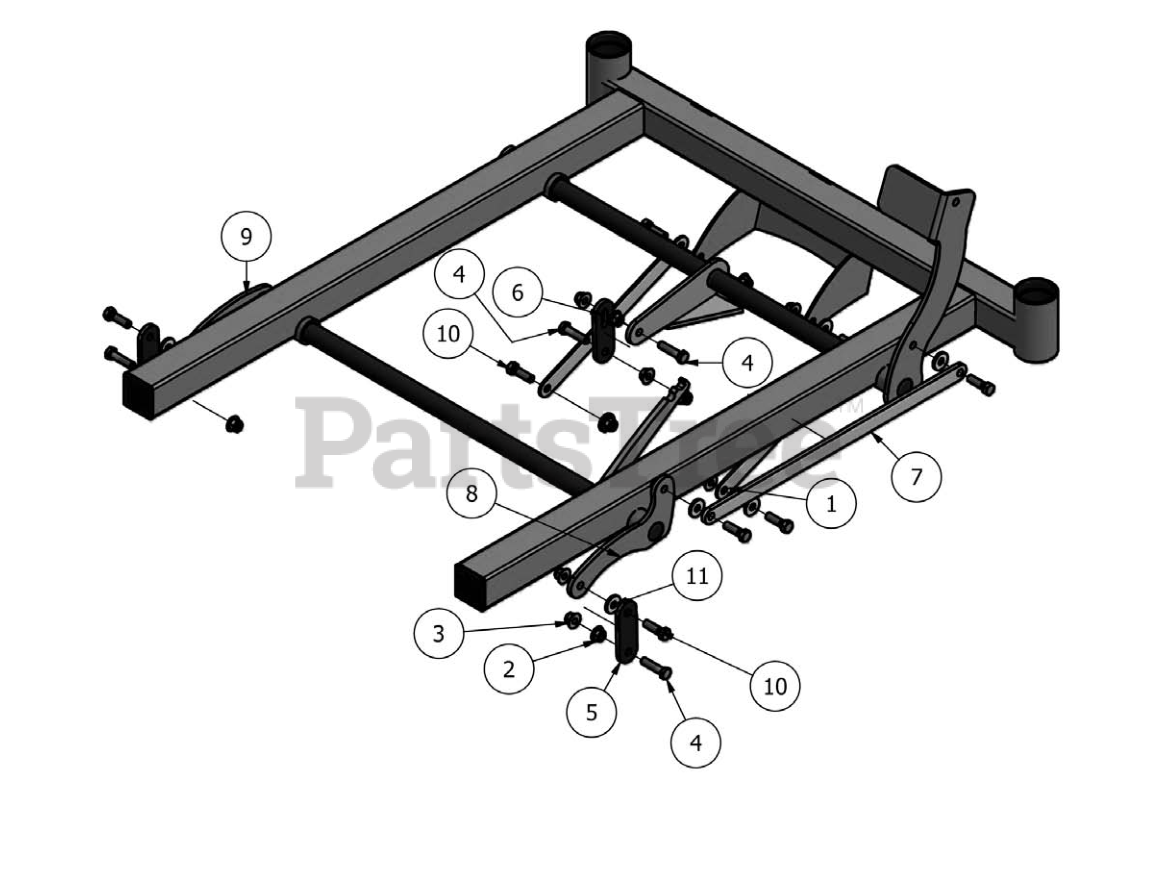

MZ - Bad Boy Zero-Turn Mower (2011) Deck Lift Assembly Parts Diagram
Zero-Turn Mower
Deck Lift Assembly Parts Diagram
Bad Boy 031-1010-00
MZ Front Arms
$27.99
$
Usually ships in 0 days
Bad Boy 013-5201-00
3/8-16 Hex flange Nut Zinc w/Serrations
$1.99
$
In Stock, Qty 20+
Bad Boy 013-5202-00
3/8 Nylock Flange Nut
$1.99
$
In Stock, only 3 left!
Bad Boy 018-6012-00
3/8-16 x 1-1/2 GR5 Hex Bolt
$0.99
$
In Stock, Qty 20+
Bad Boy 025-0010-00
Deck Spacer (Rear)
$20.99
$
Usually ships in 4-7 days
Bad Boy 025-0020-00
Deck Spacer (Front)
$20.99
$
Usually ships in 4-7 days
Bad Boy 028-0050-00
Deck Linkage Rod
$7.99
$
Usually ships in 4-7 days
Bad Boy 031-1020-00
MZ Deck Pivot Lever Right Side
$7.99
$
Usually ships in 4-7 days
Bad Boy 031-1030-00
MZ Deck Pivot Support Left Side
$7.99
$
Usually ships in 4-7 days
Bad Boy 018-5040-00
3/8-16 x 1-1/4 GR 5 Hex Bolt Zinc
$0.99
$
In Stock, Qty 9
Bad Boy 019-2073-00
.360 ID Plastic Washer
$1.99
$
In Stock, only 3 left!
