MZ - Bad Boy Zero-Turn Mower (2011) Drive Arms Parts Diagram

Zero-Turn Mower

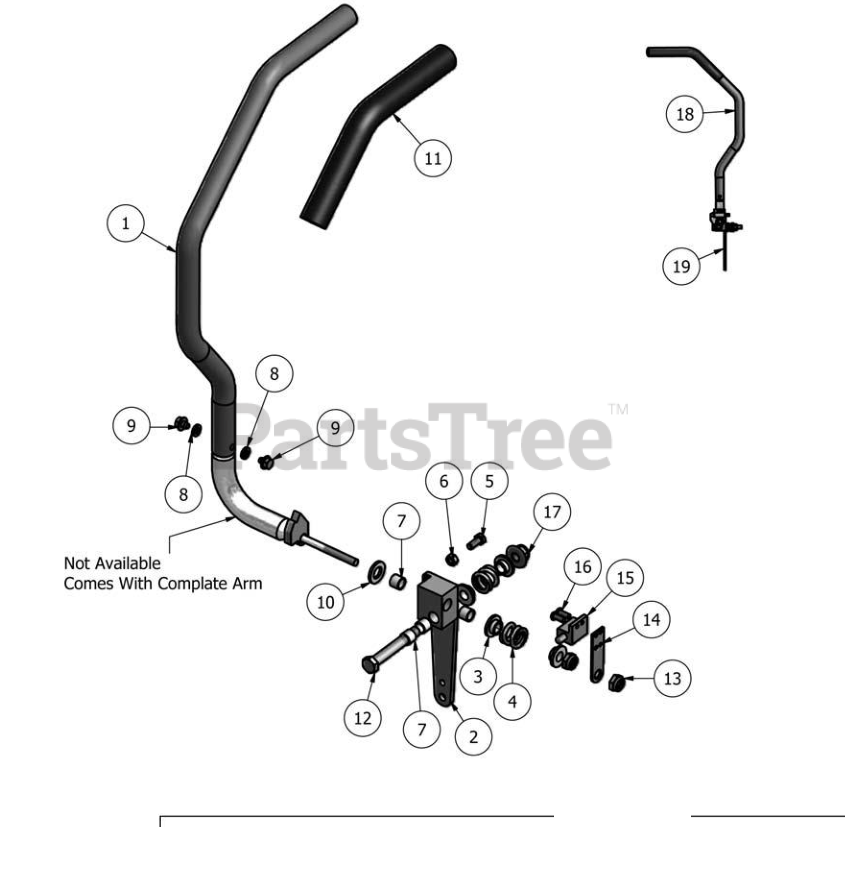

Drive Arms Parts Diagram

  • Title

1

Bad Boy 031-8821-00

Direction Steering Arm (Left)

$

$

Not available

2

Bad Boy 027-9000-00

Drive Arm Lever Housing (Left)

$45.99

$

Usually ships in 4-7 days

0

3

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

In Stock, only 4 left!

0

4

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

5

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

6

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 032-8024-00

.507 ID Nylon Bushing

$0.99

$

Usually ships in 4-7 days

0

8

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 018-2007-00

5/16" x 1/2" Flange Bolt

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

11

Bad Boy 069-4007-00

Rubber Grip

$

$

Currently unavailable

12

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, only 2 left!

0

13

Bad Boy 013-6052-00

1/2" Nylock Jam Nut

$0.99

$

Usually ships in 4-7 days

0

14

Bad Boy 039-0021-00

Switch Bracket

$5.49

$

Usually ships in 0 days

0

15

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 13

0

16

Bad Boy 018-1070-00

1/4 x 3/8 Buttonhead Bolt

$1.99

$

Usually ships in 4-7 days

0

17

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

18

Bad Boy 031-8822-00

direction Steering Arm (Right)

$

$

Not available

19

Bad Boy 027-9001-00

Drive Arm Lever Housing (Right)

$45.99

$

Usually ships in 4-7 days

0
