MZ - Bad Boy Zero-Turn Mower (2011) Transaxle Parts Diagram

Zero-Turn Mower

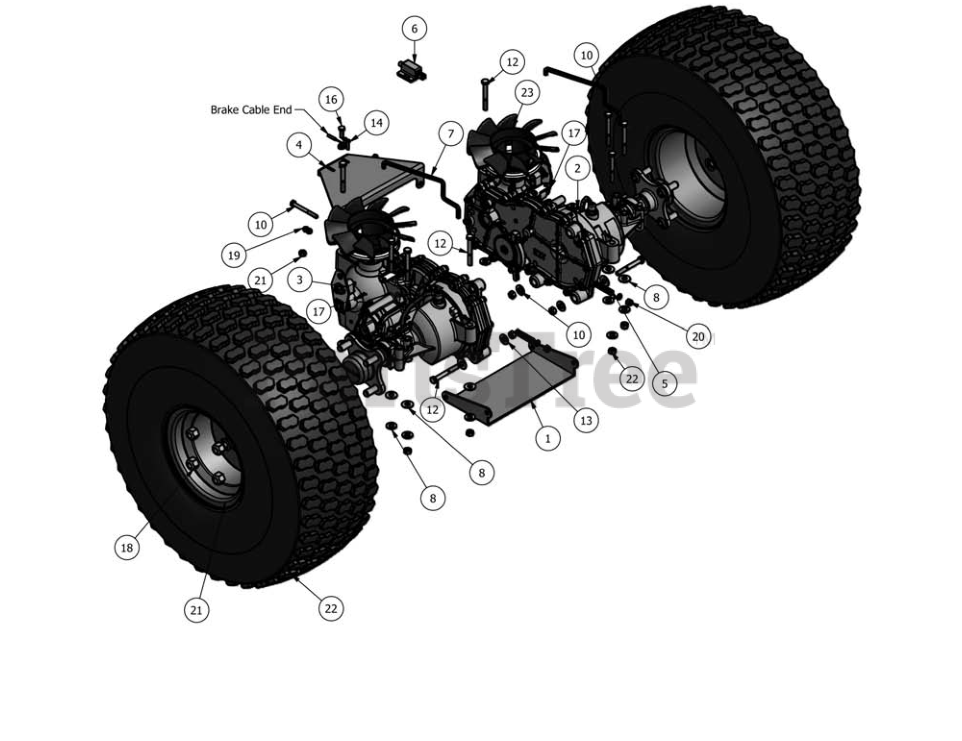

Transaxle Parts Diagram

  • Title

1

Bad Boy 201-2020-00

Trans Axle Support Lower

$21.99

$

Usually ships in 4-7 days

0

2

Bad Boy 050-4000-00

EZT - Right

$

$

Not available

3

Bad Boy 050-4050-00

EZT (Left)

$

$

Not available

4

Bad Boy 039-1124-00

Brake Lock Bracket

$10.99

$

Usually ships in 4-7 days

0

5

Bad Boy 034-3050-00

Brake Spring

$1.49

$

In Stock, only 2 left!

0

6

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 13

0

7

Bad Boy 028-0060-00

MZ Brake release Lever

$7.99

$

Usually ships in 4-7 days

0

8

Bad Boy 019-8051-00

5/16 Lock Washer Zinc

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 018-0003-00

5/16-18 X 2-3/4 Hex Bolt - Grade 5

$0.99

$

Usually ships in 4-7 days

0

10

Bad Boy 018-5344-00

5/16 x 2 1/2 Bolt

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 019-8044-00

5/16 USS Flat Washer Zinc

$0.99

$

In Stock, Qty 20+

0

12

Bad Boy 618-1075-00

1/4-20 x 2-1/2 Grade 5 Hex bolts Zinc

$

$

Currently unavailable

13

Bad Boy 019-4008-00

1/4 LockWasher Zinc

$0.99

$

In Stock, only 4 left!

0

14

Bad Boy 018-8057-00

10-24 x 3/4 Button Socket C/S 18-8 SS

$0.99

$

Usually ships in 4-7 days

0

15

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

Usually ships in 4-7 days

0

16

Bad Boy 018-8052-00

1/4-20 x 3/4 Grade 5 Hex bolts Zinc

$0.99

$

In Stock, only 2 left!

0

17

Bad Boy 025-2025-00

Cotter Pin

$1.99

$

Usually ships in 4-7 days

0

18

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

19

Bad Boy 013-8073-00

1/4-20 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

In Stock, only 2 left!

0

20

Bad Boy 013-8043-00

5/16-18 Hex Nuts Zinc

$0.99

$

In Stock, only 2 left!

0

21

Bad Boy 022-8050-00

18 x 9.5-8 Tire and Wheel Assembly 48" Deck Only

$227.99

$

Usually ships in 4-7 days

0

22

Bad Boy 022-2050-00

18 x 8.5-8 Tire and Wheel Assembly 42" Deck Only

$197.99

$

Usually ships in 4-7 days

0

23

Bad Boy 050-4502-00

Fan for MZ Transaxle

$19.99

$

Usually ships in 4-7 days

0

24

Bad Boy 022-8026-00

Rear Rim for 48"

$121.99

$

Usually ships in 4-7 days

0

25

Bad Boy 022-8028-00

Rear rim for 42

$90.99

$

Usually ships in 4-7 days

0

26

Bad Boy 022-8025-00

18x9.50-8 48" Rear Tire Only

$191.99

$

Usually ships in 4-7 days

0

27

Bad Boy 022-8027-00

18x8.50-8 42" Rear Tire Only

$121.99

$

Usually ships in 4-7 days

0
