MZ - Bad Boy Zero-Turn Mower (2012) Axle Assembly Parts Diagram

Zero-Turn Mower

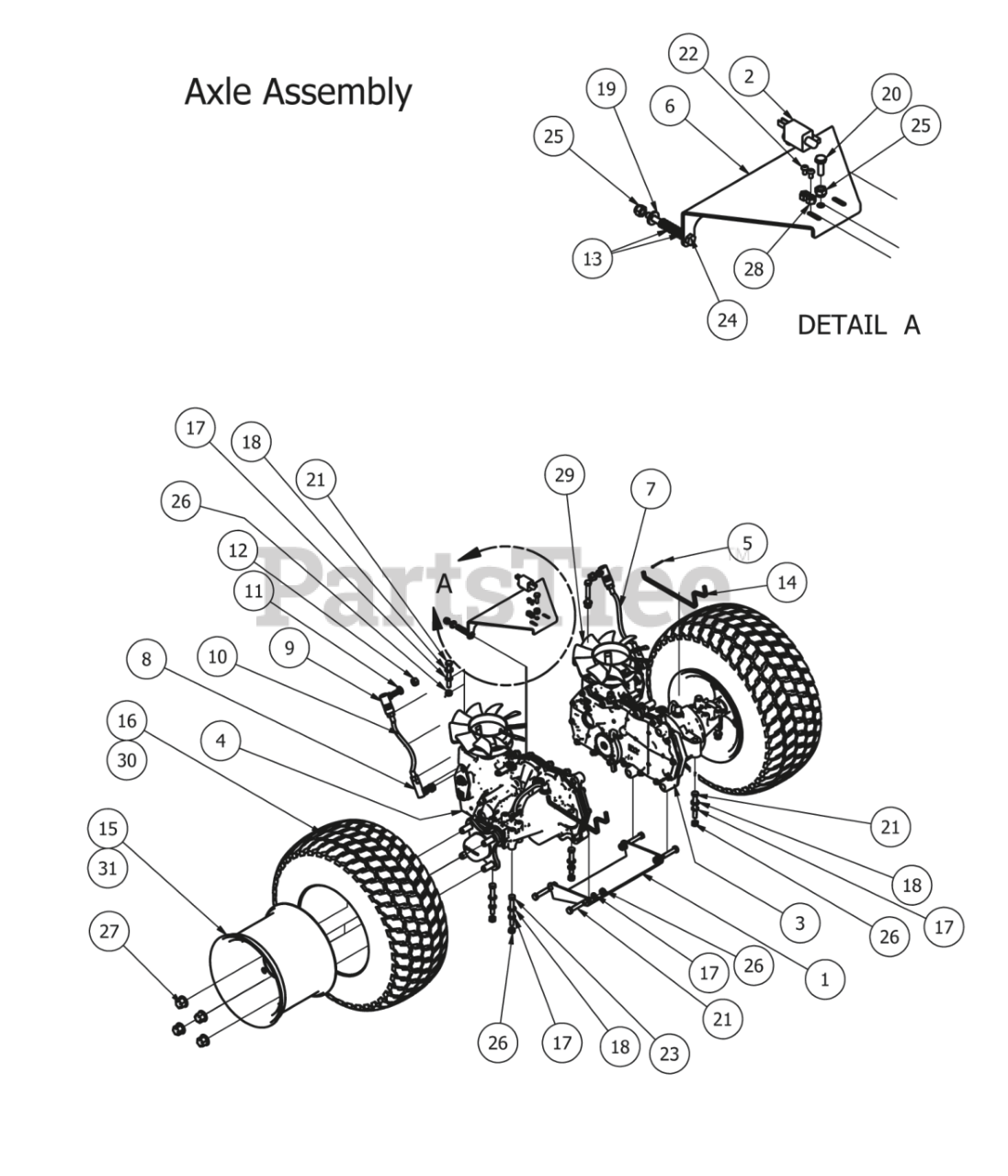

Axle Assembly Parts Diagram

  • Title

1

Bad Boy 201-2020-00

MZ Transaxle Support (Lower)

$21.99

$

Usually ships in 4-7 days

0

2

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 13

0

3

Bad Boy 050-4031-00

EZT Left MZ Models

$1139.99

$

Usually ships in 4-7 days

0

4

Bad Boy 050-4030-00

EZT- Right MZ Models

$1139.99

$

Usually ships in 4-7 days

0

5

Bad Boy 040-2025-00

Cotter Pin-Brake bar on Mz

$0.99

$

Usually ships in 4-7 days

0

6

Bad Boy 039-1124-00

MZ Brake Lock Bracket

$10.99

$

Usually ships in 4-7 days

0

7

Bad Boy 035-8001-00

Steering linkage for Mz Left

$

$

Not available

8

Bad Boy 099-6046-00

3/8-24 Ball Joint

$13.99

$

In Stock, only 4 left!

0

9

Bad Boy 099-2009-00

Quick Release Ball Joint

$10.99

$

In Stock, only 2 left!

0

10

Bad Boy 035-8000-00

Steering linkage for Mz right

$

$

Not available

11

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

13

Bad Boy 034-3050-00

Brake Spring

$1.49

$

In Stock, only 2 left!

0

14

Bad Boy 028-0060-00

MZ Brake Release Bar

$7.99

$

Usually ships in 4-7 days

0

15

Bad Boy 022-8026-00

Rear rim for a 48in

$121.99

$

Usually ships in 4-7 days

0

16

Bad Boy 022-8025-00

18 x 9.50 -8 Tire Only MZ 48" Deck only

$191.99

$

Usually ships in 4-7 days

0

17

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

19

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 6

0

20

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

21

Bad Boy 018-5344-00

5/16" x 2 1/2" Bolt

$0.99

$

In Stock, only 2 left!

0

22

Bad Boy 018-5200-00

10-24 X 5/8 BS C/S 18-8 SS

$0.99

$

In Stock, Qty 5

0

23

Bad Boy 018-4701-00

5/16" x 3" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

24

Bad Boy 018-1076-00

1/4-20 x2-1/2 Gr2 hex C/s zinc

$0.99

$

In Stock, only 2 left!

0

25

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

26

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

27

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

28

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut

$0.99

$

Usually ships in 4-7 days

0

29

Bad Boy 050-2074-00

MZ Fan & Pulley Kit

$129.99

$

Usually ships in 4-7 days

0

30

Bad Boy 022-8027-00

42" MZ 18x 7.50-8 tire only

$121.99

$

Usually ships in 4-7 days

0

31

Bad Boy 022-8028-00

Rear rim only 42" MZ

$90.99

$

Usually ships in 4-7 days

0
