MZ - Bad Boy Zero-Turn Mower (2014) 42" Deck Assembly Parts Diagram

Zero-Turn Mower

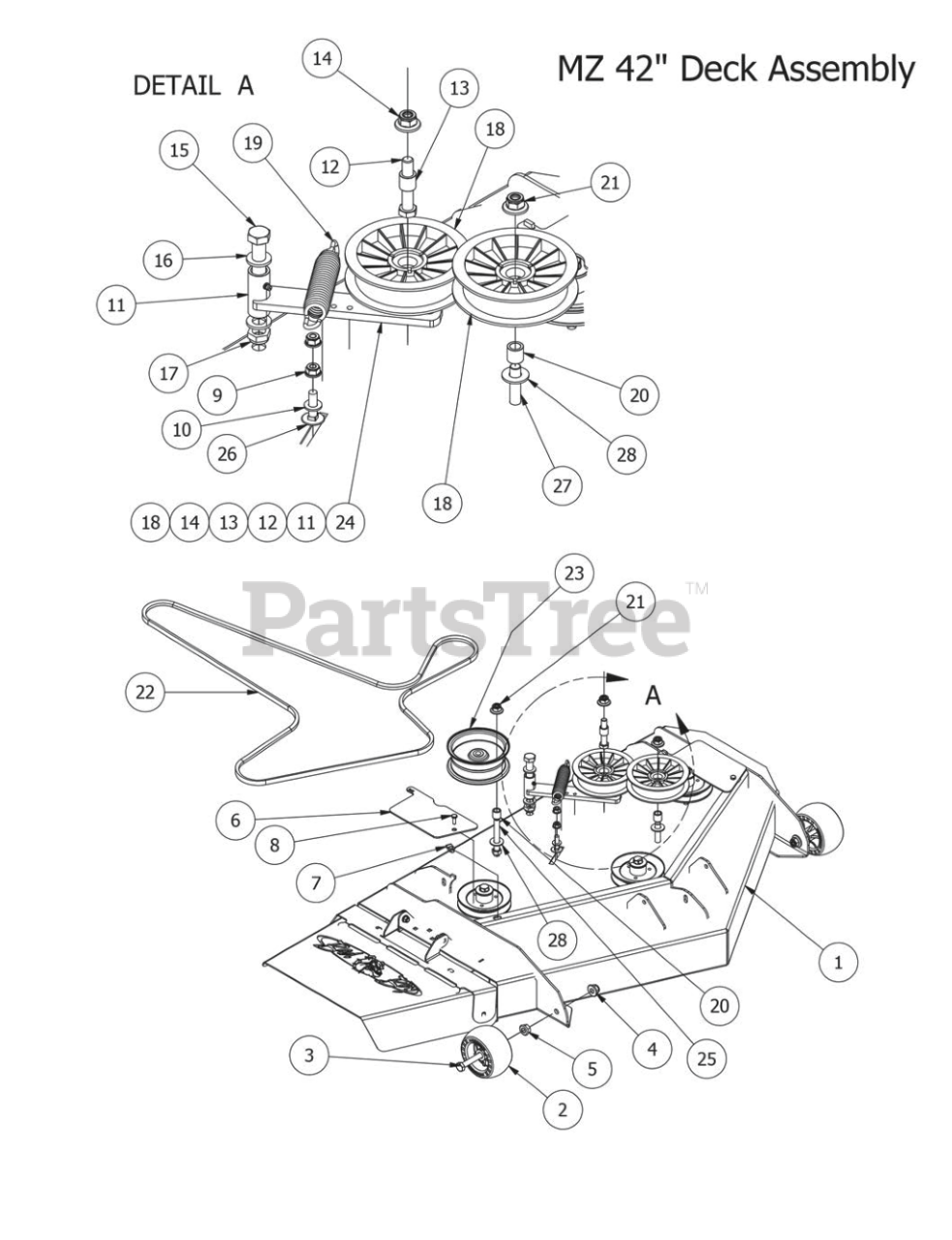

42" Deck Assembly Parts Diagram

  • Title

1

Bad Boy 060-2200-00

Mz 42 Deck

$830.99

$

Usually ships in 0 days

0

2

Bad Boy 022-5234-00

Deck Wheel

$

$

Not available

3

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, only 2 left!

0

4

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

5

Bad Boy 013-0085-00

1/2-13 Hex Flange (GR.G) ZC

$1.49

$

Usually ships in 4-7 days

0

6

Bad Boy 014-4200-00

MZ42 Pulley Cover

$30.99

$

Usually ships in 0 days

0

7

Bad Boy 013-0054-00

1/4-20 Cage Nut

$1.49

$

Usually ships in 4-7 days

0

8

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

10

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 2 left!

0

12

Bad Boy 018-6036-00

1/2" x 2 3/4" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

13

Bad Boy 025-5203-00

3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 7

0

14

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

15

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

16

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

17

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 033-2000-00

Plastic Idler Pulley

$

$

Not available

19

Bad Boy 034-2009-00

Deck Idler Spring MZ

$19.99

$

In Stock, Qty 15

0

20

Bad Boy 025-5203-00

3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 7

0

21

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

22

Bad Boy 041-0120-00

42" Deck Belt- B120

$94.99

$

In Stock, Qty 10

0

23

Bad Boy 033-5000-00

5 3/4" Deck Idler Pulley

$60.99

$

In Stock, only 2 left!

0

24

Bad Boy 039-7001-98

Parts 11,12,13,14,18 make up the deck idler assembly

$60.99

$

Usually ships in 4-7 days

0

25

Bad Boy 018-6054-00

1/2-13 x 3 1/2 GR 5 Hex Bolt

$2.49

$

In Stock, only 2 left!

0

26

Bad Boy 018-4706-00

3/8 x 1-1/2 Carriage Bolt

$1.99

$

Usually ships in 4-7 days

0

27

Bad Boy 018-7016-00

1/2-13 x GR 5 Hex Bolt Zinc

$1.99

$

In Stock, Qty 5

0

28

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 2 left!

0
